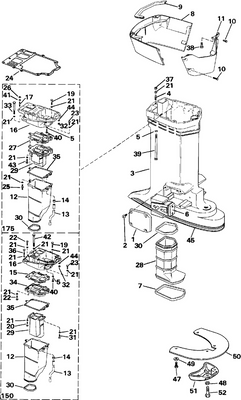

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 72
Product Description: Cover, Exhaust Housing
Category: STERN DRIVE / 1979 / 120 / 990243S1 1979 / UPPER GEARCASE GROUP 120, 140 MODELS STERN DRIVE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 0982226 | Gear and bushing assembly | |
2 | 0307551 | Screw | |
3 | 0311598 | Seal | |
4 | 0981870 | Bushing, retainer | |
5 | 0308883 | Bushing | |
6 | 0909048 | Real ring, shaft | |
7 | 0314390 | Retainer | |
8 | 0911317 | Retaining ring, shaft | This part replaces 0313236. |
9 | 0908890 | Spacer shafat | |
10 | 0909139 | Quad ring, retainer | |
11 | 0908871 | Retainer, steering worm | |
12 | 0305282 | Bolt, bowl suction piece | |
13 | 0911316 | Retaining ring | This part replaces 0313238. |
14 | 0908870 | Bracket steering worm ret | |
15 | 0307708 | Lock washer, mounting | |
16 | 0980657 | Indicator plug, cover | |
17 | 0909140 | O ring, retainer backup | |
18 | 0315189 | Gasket, oil indicator | |
19 | 0323099 | Screw, bumper | |
20 | 0908511 | Screw | |
21 | 0313175 | O ring, cover | |
22 | 0308883 | Bushing | |
23 | 0308843 | Screw, gearcase to housing | |
24 | 0120177 | L'washer, alternator to brkt | |
25 | 3852473 | Screw, cap to gimbal | This part replaces 0909636. |
26 | 0308768 | Exhaust seal | |
27 | 0308590 | Spring, seal | |
28 | 0313220 | Shim | |
29 | 0983298 | Impeller housing | This part replaces 0909754. |
30 | 0308928 | .key, impeller 5 inch longer parts | |
31 | 0379475 | Impeller assembly | |
32 | 0313176 | Impeller housing plate | |
33 | 0910239 | Swivel housing | This part replaces 0313155. |
34 | 0310648 | Thrust washer | |
35 | 0909753 | Driveshaft | |
36 | 0981056 | Exhaust housing | |
37 | 0908510 | Pin | |
38 | 0308596 | Seal, exhaust hosing | |
39 | 0322624 | Washer, lag screw | This part replaces 0313169. |
40 | 0310327 | "o" ring, gearcase head | |
41 | 0313540 | Screw, housing | |
42 | 0982476 | Bearing housing assy | This part replaces 0982245. |
43 | 0907866 | Locknut | |
44 | 0982244 | Ball gear shaft pinion assy | |
45 | 0379585 | . bearing assy, pinion | |
46 | 0382212 | . bearing assy, shaft | |
47 | 0909121 | Driveshaft upper | |
48 | 0313185 | Shim, bearing housing, .005" | |
48 | 0313186 | Shim, bearing housing, .006" | |
48 | 0313187 | Shim, bearing housing, .007" | |
48 | 0313188 | Shim, bearing housing, .008" | |
48 | 0313189 | Gasket,screw plug | |
48 | 0313190 | Shim, bearing housin, 0010 | |
49 | 0382165 | Roller bearing, lover | |
50 | 0981268 | Seal, bearing retainer | This part replaces 0981587. |
51 | 0910240 | Bearing housing | This part replaces 0907734. |
52 | 0909123 | Centering cone | |
53 | 0553126 | O ring, bearing housing | |
54 | 0908062 | Plug, bail gear | |
55 | 0908069 | Ball dear, shaft | |
56 | 0908064 | Nut | |
57 | 0981196 | Oil retainer | |
58 | 0313184 | Bearing retainer | |
59 | 0313202 | Shim, retainer hsg. 0.002" | |
59 | 0313203 | Shim, retainer hsg. 0.003" | |
59 | 0313204 | Shim, retainer hsg. 0.004" | |
59 | 0313205 | Shim, retainer hsg. 0.005" | |
59 | 0313206 | Shim, retainer hsg. 0.010" | |
60 | 0313162 | Shim bearing to housing, .002" | |
60 | 0313163 | Shim bearing to housing, .003" | |
60 | 0313164 | Shim bearing to housing, .004" | |
60 | 0313165 | Shim bearing to housing, .005" | |
60 | 0313166 | Shim bearing to housing, .006" | |
60 | 0313167 | Ahim,bearing to hsg.,.007" | |
60 | 0313168 | Shim bearing to housing, .008" | |
61 | 0313192 | Shi,thrust washer,.002" | |
61 | 0313193 | Shim brg.to pinion,.003" | |
61 | 0313194 | Pinion,.005" | |
61 | 0313195 | Shim, bearing to pinion , .005" | |
61 | 0313196 | Shim, bearing to pinion .006" | |
61 | 0313197 | Shim, bearing to pinion 0.007 inch | |
61 | 0313198 | Shim, bearing to pinion 0.008 inch | |
61 | 0313199 | Shim, bearing to pinion 0.009 inch | |
61 | 0313200 | Shim, bearing to pinion 0.010 inch | |
62 | 0375761 | Bearing, roller | |
63 | 0909550 | Guide, cable | |
64 | 0328701 | Lockwasher, double ended bolt | This part replaces 0303480. |
65 | 0980370 | Bumber assembly | |
66 | 0909386 | Screw, housing to gearcase | |
67 | 0313223 | Tilt quadrant | |
68 | 0308591 | Cover,starboard | |
69 | 0308699 | Cover,port | |
70 | 0308592 | Gasket, water cover | |
71 | 0909163 | Retainer, drivesaft | |
72 | 0981099 | Cover, exhaust housing | |
73 | 0908834 | Screw, 3 8 16 unc, 3 4 lg | |
74 | 0909823 | Transfer | |
75 | 0308896 | Spring | |
76 | 0308621 | O ring, retainer to housing | |
77 | 0313228 | Cover, gear housing | |
78 | 0319150 | Lock washer, adjustment rod | |
79 | 0302290 | Washer | |
80 | 0907774 | Seal | |
81 | 0313183 | Worm wheel | |
82 | 0381791 | Thrust bearing assy | |
83 | 0312815 | Thrust washer, worm gear | |
84 | 0313234 | Sorm gear,steering | |
85 | 0313235 | Gear | |
86 | 0314491 | O ring | |
87 | 0909638 | Screw, cover to housing | |
88 | 0983218 | Water pump repair kit | This part replaces 0981802. |
89 | 0983219 | Heavy duty water pump impeller housing kit | This part replaces 0981683. |
90 | 0981796 | Upper gearcase shim kit | |
91 | 0982949 | Upper gearcase gasket seal kit | This part replaces 0981798. |
