EVINRUDE-JOHNSON 981433 Flame Arrestor

Write a Review
$99.00
SKU:
981433
Schematic Object Key:
19

EVINRUDE-JOHNSON 981433 Flame Arrestor

$99.00

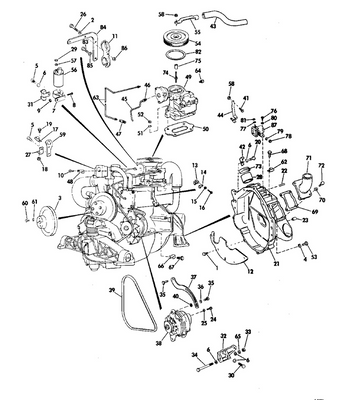

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 981433 Flame Arrestor

Schematic Object Key : 19

Product Description: Flame Arrestor

Category: STERN DRIVE / 1981 / 350 / 990337R 1981 / INTAKE MANIFOLD, FUEL PUMP AND CARBURETOR LINES

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0343765 Clamp, lift pump
1 0333839 Manifold, intake
2 6271071 Guard, intake manifold
2 0346243 Guard, intake manifold
3 3959544 Stud, gaurd
4 14024464 Gasket set, manifold
4 0352670 Gasket set, manifold ends
4 14024393 Gasket set, manifold sides
5 0120394 Bold, manifold to head
5 0435611 Bolt, hex, manifold to head, 3 8 16 x 1 1 8"
5 0120394 Bold, manifold to head
6 3932344 Gasket, dist. to manifold
7 3704912 Clamp, distributor
8 3705044 Gasket, fuel pump mounting plate
9 37019599 Plate, fuel pump mounting
1 9776705 Gasket, pump to plate
11 3704817 Push rod, fuel pump
12 0908765 Gasket, carburetor
12 3852437 Gasket, adapter to manifold This part replaces 0908238.
13 0315830 Wedge, carburetor to manifold
14 0315820 Stud, carburetor mounting, rear
14 0314616 Stud
15 9419047 Screw, carb to manifold
15 0315821 Stud, carburetor mounting, front
16 0309948 Washer, stud
16 0311388 Oring
17 0306422 Nut
18 0982223 Carburetor assy
18 0982227 Carburetor assy
18 0982221 Carburetor assy
19 3854026 Flame arrestor This part replaces 0982304.
19 0981433 Flame arrestor
20 0909536 Stud, flame arrestor
20 0909428 Stud, flame arrestor
21 3852438 Connector, crankcase vent This part replaces 0908240.
22 3852420 Locknut, throttle lever This part replaces 0900402.
23 HOSE, Crankcase vent
24 3852075 Plug, intake manifold This part replaces 0307948.
25 3855276 Fuel pump assy. This part replaces 0981650.
25 0982228 Fuel pump assy
26 0310846 Clamp, overflow hose
27 0320107 Tie strap
28 0909938 Hose, fuel overflow
29 0909365 Spacer, ball joint
29 0909364 Spacer, ball joint
30 0302600 Screw
31 0120177 L'washer, alternator to brkt
32 3852453 Fitting, cover, return line This part replaces 0908644.
33 0981666 Fuel line assy
33 0981431 Fuel line assy
34 3921984 Lift bracket, rear
34 3994055 Lift bracket, front
34 3995632 Lift bracket, front
34 0312782 Lift bracket, byl.head
35 0180120 Screw, lift bracket, front
35 0312997 Screw, adapter to engine
36 0908825 Spacer
37 0312997 Screw, adapter to engine
38 0306834 Bolt, throttle lever retainer
39 0981369 Throttle bracket assy
40 0303497 Washer
41 0310859 Bolt, throttle lever to carb
42 0311505 Lockout, solenoid to bracket
43 0306405 Washer, c c stud nut
44 0328064 Nut This part replaces 0554427.
45 0306487 Screw
46 0306396 Lock washer, control to boat
47 0379926 Ball joint
48 0510150 Washer, ball joint
49 0909362 Pilot, ball joint
50 0980524 Bowl assembly
51 0908872 Bail
52 0384154 Bowl gasket
53 0908873 . gasket
54 0908647 Fitting, pump to bowl
55 1052366 Sealer
