EVINRUDE-JOHNSON 981785 Lead Assy, Cylinder 1 & 2

Write a Review
$14.99
SKU:
981785
Schematic Object Key:
38

EVINRUDE-JOHNSON 981785 Lead Assy, Cylinder 1 & 2

$14.99

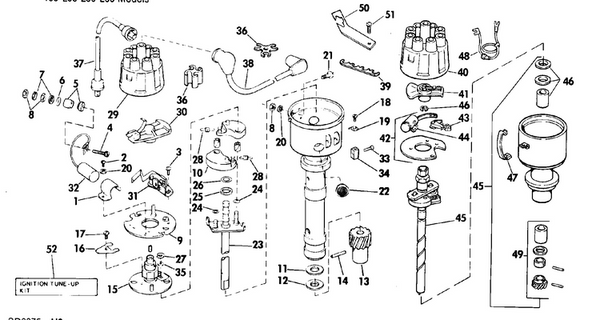

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 981785 Lead Assy, Cylinder 1 & 2

Schematic Object Key : 38

Product Description: Lead Assy, Cylinder 1 & 2

Category: STERN DRIVE / 1980 / 230 / 990254K 1980 / DISTRIBUTOR GROUP 185-200-230-260 Models

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0313122 Bracket, cond mtg
2 0313123 Screw, cond bracket
3 0313124 Screw, contact point adj
4 0313125 Screw, primary terminal
5 0981738 Insulator, primary term
6 0313127 Washer, primary terminal
7 0313128 Lkwash, primary term
8 0910064 Hex nut, primary terminal
9 0313130 Plate, ckt. brkr
10 0910063 Weight, governor
11 0313132 Thrust wahser
12 0313133 Thrust washer, bronze
13 0313134 Gear, distr drvn
14 0910062 Roll pin, gear
15 ADVANCE PLATE & CAM
16 CLAMP,Cam hldn
17 SCREW,Clamp
18 0913094 Screw This part replaces 0910058.
19 0313140 Clip, cap attaching
20 0910065 Governor post
21 0913094 Screw This part replaces 0910058.
22 0313138 Screen, ventilation
23 0982210 Main shaft assembly
24 0313145 Waasher, wt posts
25 0313146 Washer, main shaft, lower
26 0313147 Washer, main shaft to upper
27 0313148 Retainer, weight to post
28 0313149 Spring, adv wt painted blue
28 0316207 Spring, adv wt painted black
29 0982209 Distributor cap assy
30 0982211 Rotor assy
31 0382135 Contact assy.
32 0382136 Condenser
33 0316141 Rivet, clamp.
34 0910060 Swivel
35 0910065 Governor post
36 0907942 Retainer, ignition leads
36 0909660 Reainer, short
36 3852492 Retainer, 3 wire This part replaces 0910231.
37 0981660 Lead asst, distributor to coil
38 0981787 Lead assy, spark 2 lh
38 0981786 Lead assy, spark 1 2 rh
38 0981785 Lead assy, cylinder 1 2
38 0981783 Lead assy, cylinder 3 4
38 0981782 Lead assy, cylinders 5 6
39 0908595 Retainer, ign leads
39 3852491 Retainer, 4 wire This part replaces 0910230.
40 0982336 Cap assy, dist
0910169 0910169 Gasket
41 0980892 Rotor
42 0980895 Plate assy
43 0980893 Con set, brkr
44 0980894 Condenser
45 0982338 Distributor shaft housing assy
46 3853795 Bearing This part replaces 0982335.
47 0980899 Cap spring package
48 0982607 Lead assy
49 3853888 Gear, collar parts pkg. This part replaces 0982337.
50 3864498 Retainer leads
51 0306419 Screw
52 0173619 Ign tune up kit,mallory
52 0173690 Ign. tune up kit, prestolite
