EVINRUDE-JOHNSON 982106 . Push Rod Assy

Write a Review
$69.00
SKU:
982106
Schematic Object Key:
48

EVINRUDE-JOHNSON 982106 . Push Rod Assy

$69.00

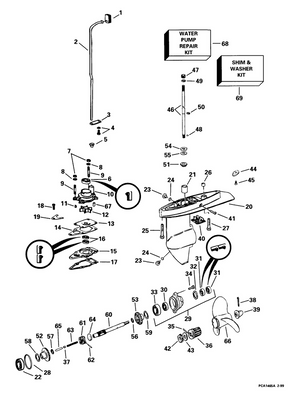

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 982106 . Push Rod Assy

Schematic Object Key : 48

Product Description: . Push Rod Assy

Category: STERN DRIVE / 1981 / 140 / 140SPHRCIS 1981 / LOWER GEARCASE 120,140 MODELS STERN DRIVE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0982475 0982475 Gearcase assy, complete use 983505 and one kit 983268.
1 0982111 Gearcase bearing assy
2 0384195 Bearing, pinion
3 0324852 Retaining screw seal
3 0307853 O ring
4 0323466 . screen, water intake
5 0354731 O ring This part replaces 0314728.
6 0982422 Bearing housing seal
7 0321467 . oil retainer
8 0301250 Rondelle
9 0981609 Oil pump housing cover
10 0909590 . set screw, pressure relief
11 0321127 Screw, water pump assy.
12 0308120 . screw
13 0160084 Ball
14 0909593 . guide, ball valve
15 0383784 . screen valve housing
16 0982034 . cover assembly
17 0202136 . . pin, cover to gearcase
18 0909591 . spring, pressure relief
19 0909589 . retainer, relief
20 0910338 Gasket
21 0313445 Retaining ring
22 0314732 ,retainer plate, brg hsg
23 0910551 Stud
24 0397087 Bearing housing seal assy. This part replaces 0384523.
25 0382407 Bearing assy, forward gear
26 0379504 Propshaft bearing assembly
27 0330137 Seal This part replaces 0321463.
28 0316563 Screw
29 0317178 O ring
30 0314731 Rondelle de butée, engrenage de marche arrière
31 0314730 Nut, pinion to driveshaft
32 0323205 Pinion
33 0387656 Butée, arbre d'entraînement
34 0327656 Rondelle de butée, arbre d'entraînement This part replaces 0314729.
35 0982423 Driveshaft assembly
36 0982243 Gear bushing assy, forward
37 0323315 Gear, reverse
38 0323664 Commande de sens de marche, crabot d'embrayage
39 0313448 Pin, clutch dog
40 0324369 Spring, clutch dog pin
41 0307551 Screw This part replaces 0982851.
42 0202893 "o" ring, drive shaft
43 0329241 Washer This part replaces 0305981.
44 0981857 Shift assembly, gearcase
45 0909961 . spring
46 0909953 . oil stem valve
47 0320176 Pin, push rod
48 0982106 . push rod assy
49 0302290 Washer
50 0317165 Thrust washer, fwd
51 0314742 Shim bearing housing
51 0323362 Cale, 0,003" 0,07 mm
51 0323361 Cale, 0,004" 0,10 mm
51 0314745 Cale, 0,005" 0,12 mm
52 0352165 Gasket, shift rod cover This part replaces 0324670.
53 0436888 Propeller shaft assy. This part replaces 0387818.
54 0323363 Shim, .002 inch
54 0323364 Shim, .003 inch
54 0323365 Shim, .004 inch
55 0382408 Thrust bearing
56 0909945 Adapter, shift cylinder to hsg
57 0982606 Scivel bearing retainer bushing assy
58 0310649 . seal
59 0313353 . seal
60 0313607 Lube fitting
61 0316534 . screw, hsg. to gearcase
62 0982154 Shift assembly
63 0307247 . lockwasher, screw, cover
64 0323465 . screw, cover
65 0307450 "o" ring, large
66 0908158 Screw, anode
67 0982155 . shift hsg support assembly
68 0982033 . idler pulley brg assy
69 0910033 . shaft, idler pulley
70 0909294 . retainer, pinion shaft
71 0909299 . drive pulley
72 0909300 . pinion shaft
73 0909603 . cover, shift housing
74 0909604 . gasket, cover, shift hsg
75 0909606 . seal, pinion shaft, shift hsg
76 0910590 . retainer, ca, shift hsg
77 0909747 O ring
78 0909748 . washer, pinion to bearing
79 0909969 . quad ring, shaft
80 0981312 . bearing assy, pinion shaft
81 0982810 . cable assembly
82 0909303 . washer
83 0313446 "o" riing, brg. hsg
84 0385043 Thrust bearing assy.
85 0982333 Shift rod bearing assy
86 0127084 Thrust bushing This part replaces 0318841.
87 0121731 Nut, hook, front
88 0318544 Screw, fill drain
89 0329894 Screw This part replaces 0302510.
89 0319126 Screw, muffler, upper This part replaces 0324474.
90 0552898 Scr,grc to hsg,short
91 0341013 Screw, cover This part replaces 0908668.
92 0909548 Clamp, ext rudder
93 0909549 Extenion,rudder
94 0315810 Spacer, impeller nut
95 0909779 Trim tab, gearcase
96 0313715 Screw, cap, hex hd, 7 16 14 x 1
97 0314503 Nut, impeller
98 0314502 Cotter pin
99 0382761 Propeller ,14 x 11
99 0389788 Propeller, 12 3 4 x 21
99 0765182 Propeller w models This part replaces 0391198.
99 0765183 Propeller, wdel models This part replaces 0391199.
99 0390896 Propeller, 13 19 al.
99 0389788 Propeller, 12 3 4 x 21
99 0390895 12 3 4 x 23
99 0389514 Propeller 12 3 4 x 23 sst
99 0389949 Propeller, 12 3 4 x 15 sst
99 0389948 Propeller, 12 3 4 x 17 sst
99 0389510 Propeller, 13 19 sst
99 0389512 Pro, 12 3 4 x 21 sst cupped
101 0384977 Bushing assy, prop, 3 blade
102 0306314 L'washer,scr,long
103 0313697 Scr,grc to hsg.long
104 0307708 Lock washer, mounting
105 0982947 Lower gearcase gasket seal kit
106 0982178 Lower gearcase shim kit
