EVINRUDE-JOHNSON 982384 Carburetor Kit

Write a Review
$41.99
SKU:
982384
Schematic Object Key:
1

EVINRUDE-JOHNSON 982384 Carburetor Kit

$41.99

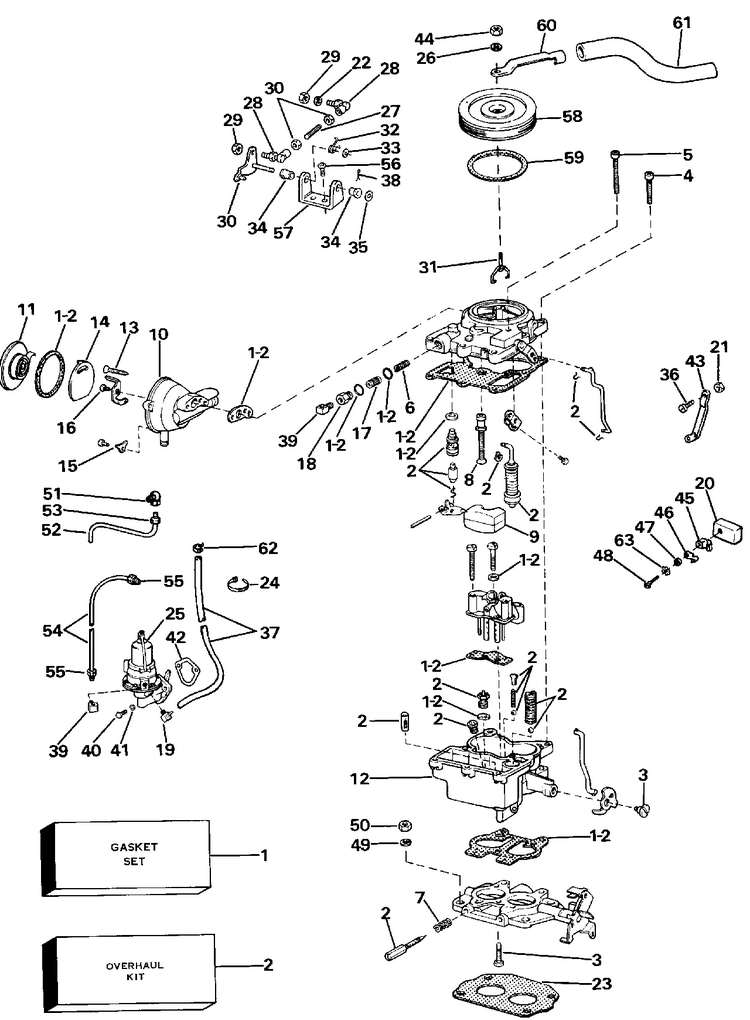

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 982384 Carburetor Kit

Schematic Object Key : 1

Replacement: This part (982384) replaces 0983069.

Product Description: Carburetor Kit

Category: STERN DRIVE / 1984 / 3 / 302STHRCRA 1984 / CARBURETOR & FUEL PUMP

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0982217 0982217 Carburetor assembly
0982219 0982219 Carburetor assembly
1 0982384 Carburetor kit This part replaces 0983069.
1 0983070 Gasket set
2 0982384 Carburetor kit
2 0982386 Overhaul kit
3 17067076 Screw package
4 17063590 Screw, air horn, short
5 17063591 Screw, air horn
6 0314548 Spring, fuel filter
7 7011479 Spring, idle needle
8 0382013 Power piston assembly
9 0982385 Flat assy.
10 0980006 Choke housing assembly
10 0381391 Choke housing assembly
11 0980005 Cover coil gasket
12 0980002 Float bowl assembly
12 FLOAT BOWL ASSEMBLY
13 7007627 Screw, choke housing
14 0910184 Baffle plate This part replaces 0908032.
14 0910184 Baffle plate
15 7000614 Retainer, therm cover
16 7019709 Screw, choke lever
17 0908034 Filter, fuel inlet
18 0908035 Filter nut, fuel inlet
19 0908637 Elbow, bowl inlet
20 0982659 Pin and spacer assy
21 3852420 Locknut, throttle lever This part replaces 0900402.
22 0120052 . . lockwasher, solenoid screw
23 0315055 Gasket, carb to adapter
24 0910068 Tie strap, hoses
25 0982240 Fuel pump assebmly
0312456 0312456 . filter element
26 0329241 Washer This part replaces 0306482.
27 0908082 Link
28 0379926 Ball joint
29 0309485 Ecrou, vis, rotule
30 0980094 Throttle shaft assembly
31 0907917 Bail, flame arrestor
32 0908450 Spring, throttle return
33 0908187 Retainer, throttle arm
34 0908979 Bushing, pivot bracket
35 0303887 Washeer, pin to swivel bracket
36 0306487 Screw
37 HOSE, Pump vent to carb
38 0305650 Cotter pin
39 0310924 Clamp, main cable to adapter
40 0306322 Bolt, water pump
41 0306325 . . lockwasher, solenoid screw
42 3705042 Gasket, fuel pump mounting
43 0982660 Throttle lever pin assy
44 3852420 Locknut, throttle lever This part replaces 0901646.
45 0310685 Abchor blcok, trunnion
46 0310687 Detent spring, anchor block
47 0310688 Sapcer, anchor block
48 0330336 Screw
48 0312689 Screw, anchor block
49 0311388 Oring
50 0306422 Nut
51 0306344 Ball sleeve
52 0910392 Heat exchanger tube assy
52 0980093 Heat exchange tube assy
53 0306345 Nut, tube
54 0982222 Fuel line, pump to carb
54 0985033 Fuel line, pump to carb This part replaces 0980077.
55 0310958 Fitting, fuel line
56 0304992 Screw
57 0908081 Pivot bracket, lilnkage
58 0982105 Flame arrestor
59 0908947 Gasket, flame arrestor
60 3852438 Connector, crankcase vent This part replaces 0908240.
61 HOSE, Cover
62 0320107 Tie strap
63 0303916 Lock washer, ground terminal
