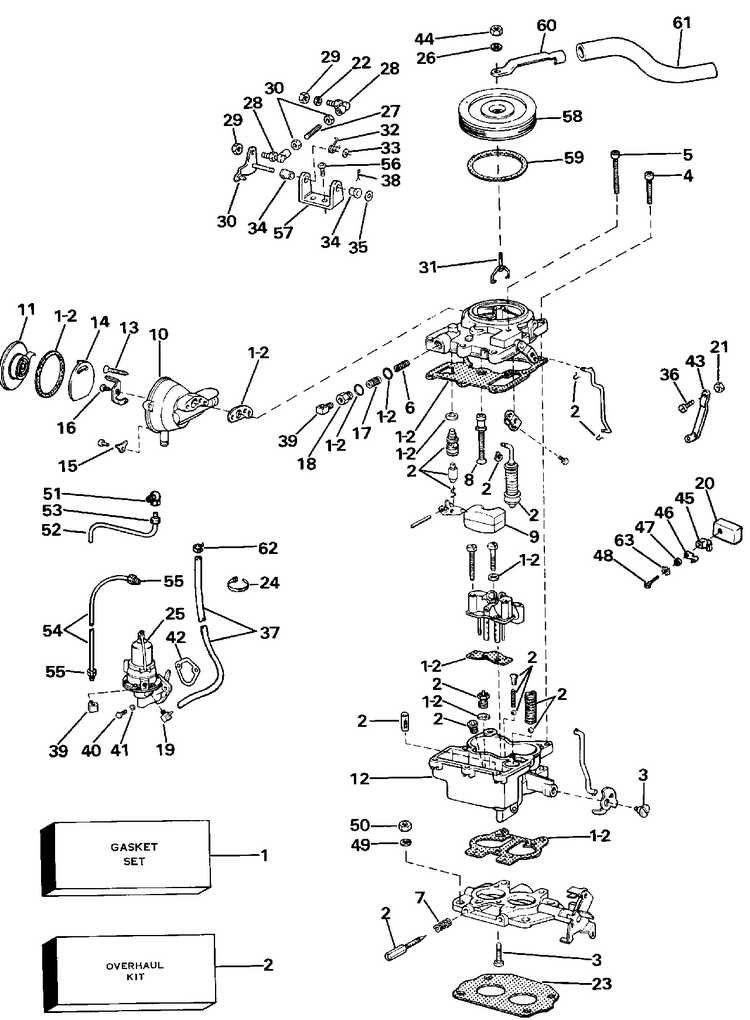

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 2
Product Description: Overhaul Kit
Category: STERN DRIVE / 1984 / 3 / 302STHRCRA 1984 / CARBURETOR & FUEL PUMP
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
0982217 | 0982217 | Carburetor assembly | |
0982219 | 0982219 | Carburetor assembly | |
1 | 0982384 | Carburetor kit | This part replaces 0983069. |
1 | 0983070 | Gasket set | |
2 | 0982384 | Carburetor kit | |
2 | 0982386 | Overhaul kit | |
3 | 17067076 | Screw package | |
4 | 17063590 | Screw, air horn, short | |
5 | 17063591 | Screw, air horn | |
6 | 0314548 | Spring, fuel filter | |
7 | 7011479 | Spring, idle needle | |
8 | 0382013 | Power piston assembly | |
9 | 0982385 | Flat assy. | |
10 | 0980006 | Choke housing assembly | |
10 | 0381391 | Choke housing assembly | |
11 | 0980005 | Cover coil gasket | |
12 | 0980002 | Float bowl assembly | |
12 | FLOAT BOWL ASSEMBLY | ||
13 | 7007627 | Screw, choke housing | |
14 | 0910184 | Baffle plate | This part replaces 0908032. |
14 | 0910184 | Baffle plate | |
15 | 7000614 | Retainer, therm cover | |
16 | 7019709 | Screw, choke lever | |
17 | 0908034 | Filter, fuel inlet | |
18 | 0908035 | Filter nut, fuel inlet | |
19 | 0908637 | Elbow, bowl inlet | |
20 | 0982659 | Pin and spacer assy | |
21 | 3852420 | Locknut, throttle lever | This part replaces 0900402. |
22 | 0120052 | . . lockwasher, solenoid screw | |
23 | 0315055 | Gasket, carb to adapter | |
24 | 0910068 | Tie strap, hoses | |
25 | 0982240 | Fuel pump assebmly | |
0312456 | 0312456 | . filter element | |
26 | 0329241 | Washer | This part replaces 0306482. |
27 | 0908082 | Link | |
28 | 0379926 | Ball joint | |
29 | 0309485 | Ecrou, vis, rotule | |
30 | 0980094 | Throttle shaft assembly | |
31 | 0907917 | Bail, flame arrestor | |
32 | 0908450 | Spring, throttle return | |
33 | 0908187 | Retainer, throttle arm | |
34 | 0908979 | Bushing, pivot bracket | |
35 | 0303887 | Washeer, pin to swivel bracket | |
36 | 0306487 | Screw | |
37 | HOSE, Pump vent to carb | ||
38 | 0305650 | Cotter pin | |
39 | 0310924 | Clamp, main cable to adapter | |
40 | 0306322 | Bolt, water pump | |
41 | 0306325 | . . lockwasher, solenoid screw | |
42 | 3705042 | Gasket, fuel pump mounting | |
43 | 0982660 | Throttle lever pin assy | |
44 | 3852420 | Locknut, throttle lever | This part replaces 0901646. |
45 | 0310685 | Abchor blcok, trunnion | |
46 | 0310687 | Detent spring, anchor block | |
47 | 0310688 | Sapcer, anchor block | |
48 | 0330336 | Screw | |
48 | 0312689 | Screw, anchor block | |
49 | 0311388 | Oring | |
50 | 0306422 | Nut | |
51 | 0306344 | Ball sleeve | |
52 | 0910392 | Heat exchanger tube assy | |
52 | 0980093 | Heat exchange tube assy | |
53 | 0306345 | Nut, tube | |
54 | 0982222 | Fuel line, pump to carb | |
54 | 0985033 | Fuel line, pump to carb | This part replaces 0980077. |
55 | 0310958 | Fitting, fuel line | |
56 | 0304992 | Screw | |
57 | 0908081 | Pivot bracket, lilnkage | |
58 | 0982105 | Flame arrestor | |
59 | 0908947 | Gasket, flame arrestor | |
60 | 3852438 | Connector, crankcase vent | This part replaces 0908240. |
61 | HOSE, Cover | ||
62 | 0320107 | Tie strap | |
63 | 0303916 | Lock washer, ground terminal |
