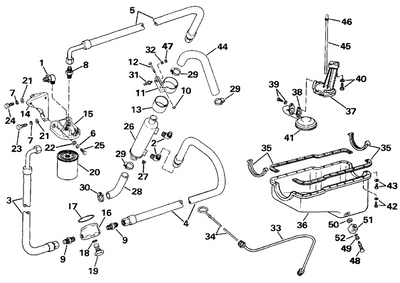

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 4
Replacement: This part (983849) replaces 0981157.
Product Description: Oil Cooler
Category: STERN DRIVE / 1980 / 3 / 990335C 1980 / EXHAUST MANIFOLD AND OIL COOLER GROUP DIRECT DRIVE
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Parts List:
Key | Part No. | Product Name | Additional_info |
---|---|---|---|
1 | 3852468 | Gasket, manifold to engine | This part replaces 0909314. |
1 | 3852472 | Gasket, manifold to engine | This part replaces 0909613. |
2 | 3852218 | Bracket, oil cooler | This part replaces 0383448. |
3 | 0979803 | Clamp | |
4 | 0983849 | Oil cooler | This part replaces 0981157. |
4 | 0981158 | Oil cooler asembly | |
5 | 0306519 | Scr,coil clamp | |
6 | 0317444 | Screw, adaptor | |
6 | 0315901 | Screw, trans to adaptor | |
7 | 0303269 | L'washer, upper | |
8 | 0306405 | Washer, c c stud nut | |
9 | 0308335 | Clamp, coil | |
10 | 0982824 | Oil line, trans to cooler | |
11 | 0120255 | Lockwasher | |
12 | 0909814 | Hose, water pump to clr | |
12 | 0909812 | Hose, water pump to cooler | |
13 | 0315744 | Adaptor, except 1 1 | |
14 | 0912627 | Clamp | This part replaces 0313851. |
14 | 3853786 | Clamp instrument cable | This part replaces 0980577. |
14 | 3853786 | Clamp instrument cable | This part replaces 0980577. |
15 | 3853236 | Sleeve, ignition coil | This part replaces 0308716. |
16 | 0909830 | Cap, manifold | |
16 | 3852476 | Cap, manifold | This part replaces 0909829. |
16 | 0909830 | Cap, manifold | |
17 | 0908438 | Hose | |
18 | 0909690 | Set screw | |
18 | 0909689 | Set screw | |
19 | 0909863 | Elbow, exhaust | |
19 | 0909863 | Elbow, exhaust | This part replaces 0909218. |
20 | 0908700 | Nut | |
20 | 0316365 | Locknut,stud adapter | |
21 | 0909786 | Gasket | |
21 | 0909786 | Gasket | |
22 | 0120177 | L'washer, alternator to brkt | |
23 | 0909413 | Exhaust manifold | |
23 | 0912442 | Exhaust manifold, port | This part replaces 0910144. |
23 | 0912441 | Exhaust manifold, starboard | This part replaces 0909280. |
24 | 0302858 | Cotter pin, shoulder bolt | |
25 | 0306325 | . . lockwasher, solenoid screw | |
26 | 0306435 | Screw, brace to alternator | |
27 | 0301161 | Rondelle, vis plaque de commande | |
27 | 0306405 | Washer, c c stud nut | |
28 | 3852140 | Stud, manifold to engine | This part replaces 0315829. |
28 | 3852467 | Stud, manifold to engine | This part replaces 0909313. |
29 | 0908700 | Nut | |
29 | 0908700 | Nut | |
30 | 0306502 | Screw, cable clip | |
31 | 0316316 | Pivot | |
32 | 0909258 | 60 degree elbow | |
33 | 0312855 | Screw | |
33 | 0306872 | Bolt, flywheel | |
34 | 0301552 | Lockwasher | |
35 | 0910580 | Connector | |
36 | 3852604 | Clamp, exhaust | This part replaces 0981323. |
37 | 0310055 | Washer, control mounting | |
38 | 0306835 | Screw | |
39 | 0301551 | Washer, lock | |
40 | 0314898 | L'nut, stud, alt frt | |
41 | 0909817 | Hose, therm to oil cooler | |
42 | 0328742 | Nut | This part replaces 0306338. |
43 | 0908649 | Elbow, oil cooler to oil line | |
44 | 3853786 | Clamp instrument cable | This part replaces 0980577. |
45 | 0309485 | Ãcrou, vis, rotule | |
46 | 0315149 | Screw, adaptor | |
47 | 0310896 | Screw | |
48 | 0384053 | Transmission assy l.h. 1 1 | |
48 | 0384211 | Tarnsmission assy, 1 1 r.h. | |
48 | 0384054 | Transmission l.h. 1.52 1 | |
48 | 0384212 | Transmission r.h. 1.52 1 | |
48 | 0384055 | Transmission l.h. 1.91 1 | |
48 | 0384213 | Transmission r.h. 1.91 1 | |
48 | 0980826 | Transmission l.h. 2.57 1 | |
48 | 0980827 | Transmission r.h. 2.57 1 | |
48 | 0980828 | Transmission l.h. 2.91 1 | |
48 | 0980829 | Transmission r.h. 2.91 1 | |
48 | 0981472 | Transmission assy l.h. 1 1 | |
48 | 0981473 | Transmission assy r.h. 1 1 | |
48 | 0981474 | Transmission l.h. 1.52 1 | |
48 | 0981475 | Transmission r.h. 1.52 1 | |
48 | 0981476 | Transmission l.h. 1.91 1 | |
48 | 0981477 | Transmission l.h. 1.91 1 | |
48 | 0981478 | Transmission l.h. 2.57 1 | |
48 | 0981479 | Transmission r.h. 2.57 1 | |
48 | 0981480 | Transmission l.h. 2.91 1 | |
48 | 0981481 | Transmission r.h. 2.91 1 | |
49 | 0384067 | Neutral safety sw | |
50 | 0316238 | Coupling 4", shaft 1 " | |
50 | 0316239 | Coupling 4" shaft 1.12" | |
50 | 0316240 | Coupling 4", shaft 1.25" | |
50 | 0316241 | Coupling 4", shaft 1.38" | |
50 | 0316242 | Coupling 4", shaft 1.50" | |
50 | 0908907 | Coupling, 5", prop shaft 1" | |
50 | 0908908 | Coupling, 5", prop shaft 1.12" | |
50 | 0908909 | Coupling, 5", shaft 1.25 | |
50 | 0908910 | Coupling, 5", prop shaft 1.38" | |
50 | 0908911 | Coupling, 5", prop shaft 1.50" | |
51 | 0316313 | Bracket | |
52 | 0316314 | Cable clip | |
53 | 0316315 | Adapter | |
54 | 0909251 | Plug, cooler | |
55 | 0909662 | Spacer, stud to adapter housing | |
56 | 0910005 | Stud | |
57 | 0309192 | Rondelle | This part replaces 0120196. |
58 | 0312329 | Nut | |
59 | 0909836 | Plate, elbow, water shut off | |
60 | 0379757 | Drain cock | |
61 | 0909843 | Elbow, high rise | |
62 | 0120255 | Lockwasher |
