EVINRUDE-JOHNSON 984744 Impeller Housing

Write a Review
$41.99
SKU:
984744-OMC
Schematic Object Key:
13

EVINRUDE-JOHNSON 984744 Impeller Housing

$41.99

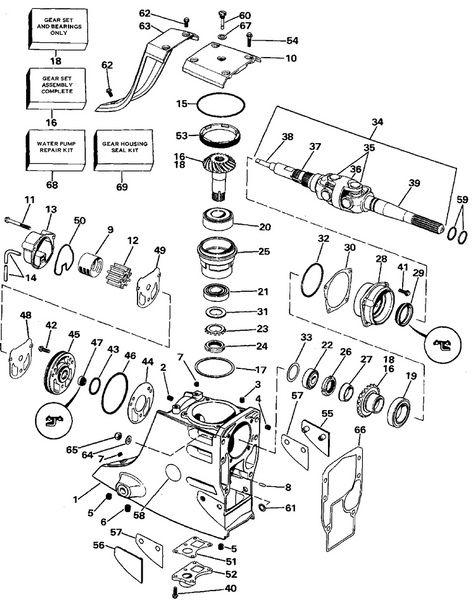

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 984744 Impeller Housing

Schematic Object Key : 13

Product Description: Impeller Housing

Category: STERN DRIVE / 1988 / 2.3 / 232APRGDP 1988 / UPPER GEAR HOUSING

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0984518 Gear housing inserts
2 0910901 Insert
3 0910901 Insert
4 0910901 Insert
5 0910935 Insert, 3 8 16
6 3852541 Insert, 7 16 14 This part replaces 0911779.
7 3852567 Insert This part replaces 0911858.
8 0912137 Guide, shift rod
9 0911844 Liner, water pump
10 0911845 Cover, gear housing
11 0912238 Screw, anchor block
12 0983895 Impeller assy., water pump
13 0984744 Impeller housing
14 0912614 Vent hose, impeller hsg
15 0313175 O ring, cover
16 0984581 Gear set assy, 21 21
17 0911668 Shim, bearing carrier .010"
17 0911669 Shim, bearing carrier .011"
17 0911670 Shim, bearing carrier .012"
17 0911671 Shim, bearing carrier .013"
17 0911672 Shim, bearing carrier .014"
17 0911673 Shim, bearing carrier .015"
17 0911674 Shim, bearing carrier .016"
17 0911675 Shim, bearing carrier .017"
17 0911676 Shim, bearing carrier .018"
17 0911677 Shim, bearing carrier .019"
18 0984580 Gear set, 21 21
19 0983877 Bearing, bearing carrier
20 0983891 Bearing, pinion, upper
21 0983892 Bearing, pinion lower
22 0983878 Bearing, u joint shaft
23 0911752 Retainer, nut
24 0911753 Nut, pinion
25 0911750 Bearing carrier, pinion
26 0911937 Nut, gear to u joint
27 0912029 Centering cone
28 0911683 Bearing carrier, gear
29 0911685 Seal, bearing carrier
30 0911678 Shim, bearing carrier .003"
30 0911679 Shim, bearing carrier .004"
30 0911680 Shim, bearing carrier .005"
30 0911681 Shim, bearing carrier .010"
31 0911697 Washer, pinion
32 0911686 O ring, adaptor to gear housing
33 0911662 Shim gear position, 0.003"
33 0911663 Shim, gear position .005"
33 0911664 Shim, gear position .007"
33 0911665 Shim, gear position .010"
33 0911666 Shim, gear position .012"
33 0911667 Shim, gear position .015"
34 0983880 U joint water pump shaft
35 0912214 U joint use 915716 for 1989a and prior. use 3850812 for 1990 and later.
36 0912213 Double center
37 0984264 Stub water pump shaft
38 0911682 Water pump shaft use 984264 for cobra. use 3854006 for 1990 93 clutch cone drive
39 0912212 Shaft, yoke
40 0341013 Screw, cover This part replaces 0908668.
41 0341013 Screw, cover This part replaces 0908668.
42 0341013 Screw, cover This part replaces 0908668.
43 0909316 O ring , adaptor, small
44 0911698 Gasket, adapter to gear hsg
45 0911699 Adapter, water pump to gear hsg
46 0911700 O ring, propshaft housing
47 3853655 Seal, water pump adaptor This part replaces 0911701.
48 0911702 Gasket, plate to adapter
49 0911703 Gasket, water pump
50 0911704 Seal, water pump housing
51 0911733 Gasket, plate
52 0911734 Cover, water passage
53 0911751 Retainer ring, pinion hsg
54 0123018 Screw
55 3852561 Plate, thrust, port This part replaces 0911837.
56 3852562 Plate, thrust, starboard This part replaces 0911838.
57 3852563 Shim, thrust plate, 0.015 in. This part replaces 0911839.
58 0911848 Medallion
59 3852565 O ring, u joint This part replaces 0911851.
60 0913343 Indicator plug, oil level
61 0910953 Retainer ring, thrust plate
62 3852568 Screw, cover This part replaces 0911859.
63 0983967 Cover, anchor block
64 0911833 Washer, stud
65 3853329 Locknut, transom plate This part replaces 0912920.
66 0915840 Gasket, gear housing to pivot This part replaces 0911836.
67 0912830 Washer, indicator
68 0984461 Water pump repair kit
69 0987603 Gear housing seal kit This part replaces 0984459.
