EVINRUDE-JOHNSON 984961 Seal & Brush Kit

Write a Review
$108.99
SKU:
984961
Schematic Object Key:
46

EVINRUDE-JOHNSON 984961 Seal & Brush Kit

$108.99

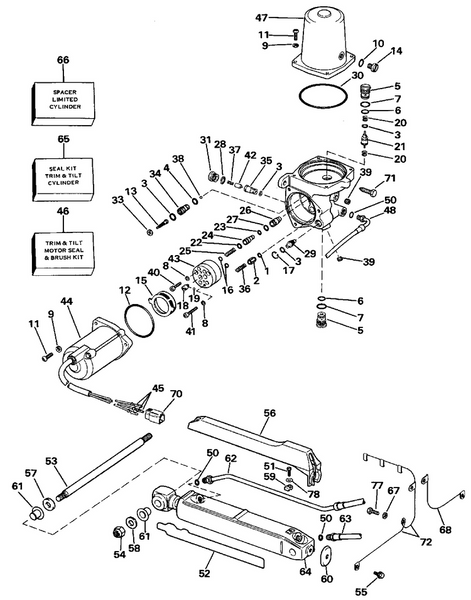

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 984961 Seal & Brush Kit

Schematic Object Key : 46

Product Description: Seal & Brush Kit

Category: STERN DRIVE / 1988 / 4.3 / 434APRGDP 1988 / POWER TRIM AND TILT

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
0984355 0984355 Manifold pump assy.
1 0122757 Seal, valve pump relief
2 0122759 Valve, pump relief
3 0202893 "o" ring, drive shaft
4 0303191 "o" ring, lever shaft
5 0387376 Valve seat, housing seal
6 0304174 "o" ring, tube adapter
7 0326649 O ring
8 0360252 Washer This part replaces 0306311.
9 0302290 Washer
10 0307450 "o" ring, large
11 0320780 Screw, motor reservoir
12 0321163 O ring, motor
13 0321165 Filter, reservoir
14 0321284 Plug, reservoir
15 0321350 Filter, oil pump
16 0321357 O ring
17 0321362 Retaining ring, manual release
18 0322174 Drive coupling
19 0322175 Ball, coupling
20 0323846 Spring, piston
21 0323848 Piston, pump control
22 0324677 O ring, valve core, upper
23 0324678 O ring, valve core, lower
24 0325862 Valve core, relief valve
25 0325863 Spring, relief valve
26 0391155 Seat, valve core, relief valve
27 0326425 O ring, value seat
28 0326649 O ring
29 0387990 Manual release valve
30 3852508 O ring, reservoir This part replaces 0910702.
31 0910866 Housing, valve seat
33 0911307 Washer
34 0911603 Valve seat, filter
35 0911620 Seat, relief valve
36 0911965 Spring, pump relief
37 0911966 Spring, relief valve
38 0800128 Ball
39 0912297 Plug
40 0912299 Screw, short
41 0912300 Screw, long
42 0983786 Valve core seal
43 0984032 Oil pump assy.
44 0984356 Motor cable assy.
45 0511657 . . ring terminal
46 0984961 Seal brush kit
47 0984357 Cover decal assy.
48 3853825 Oil line assy., pump to manifold This part replaces 0984645.
50 0321117 O ring, cam follower
51 0308825 Screw roller
52 0912261 Applique, tilt cylinder
53 0913812 Pivot pin, tilt cylinder This part replaces 0912810.
54 3853329 Locknut, transom plate This part replaces 0912920.
55 3852568 Screw, cover This part replaces 0911859.
56 3852378 Cover, tilt cylinder This part replaces 0911907.
57 0912811 Spacer, drive unit
58 3852573 Washer, pivot pin This part replaces 0911915.
59 3852579 Retainer, oil line This part replaces 0911967.
60 3852681 Retainer, cover This part replaces 0913245.
61 0910855 Bushing, pivot pin
62 3853854 Oil line, starboard, down This part replaces 0985614.
62 3853856 Oil line, port, down This part replaces 0985616.
63 3853855 Oil line, starboard, up This part replaces 0985615.
63 3853857 Oil line, port, up This part replaces 0985617.
64 0985660 Cylinder assy
65 0985060 Seal kit
66 3854248 Spacer, tilt limit This part replaces 0913361.
67 0329241 Washer
68 0985394 Ground wire, 2 loop
69 0908158 Screw, anode This part replaces 0305284.
70 0511849 . connector
71 3852581 Lag screw This part replaces 0911975.
72 3853848 Ground wire, 3 loop This part replaces 0985392.
73 0328739 Rondelle entre ancrage et support
