EVINRUDE-JOHNSON 987367 Bearing Assy., Axial, Crankshaft

Write a Review
$8.00
SKU:
987367
Schematic Object Key:
27

EVINRUDE-JOHNSON 987367 Bearing Assy., Axial, Crankshaft

$8.00

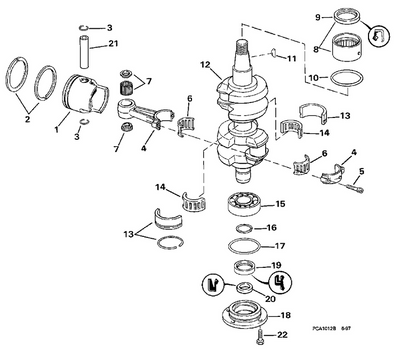

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 987367 Bearing Assy., Axial, Crankshaft

Schematic Object Key : 27

Product Description: Bearing Assy., Axial, Crankshaft

Category: STERN DRIVE / 1992 / 3.2 / 32DAPEAMH 1992 / CRANKCASE

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0987365 Partial engine
2 0915360 Fit sleeve, main cap bolts
3 0915361 Bolt, main cap
4 0915362 Plug, core hole
5 0915363 Plug, core hole
6 0915364 Plug, core hole
7 0915365 Plug, fuel gallery, front
8 0915366 Plug, oil gallery, rear underneath
9 0915367 Plug, oil gallery, front
10 0915368 Plug, cool oil gallery, rear
11 0987370 Connecting rod cap assy.
12 0915388 Bolt, connecting rod
13 0915389 Bearing, connecting rod
14 0915372 Stud, water pump
15 0987366 Valve assy., piston cooling oil
16 0987368 Bearing assy., main, crankshaft
17 0915374 Stud, exhaust
18 0987369 Piston, rings pin, standard
19 0915376 Gasket, valve stem
20 0915377 Valve, exhaust
21 0915378 Valve, inlet
22 0915379 Retainer, valve spring
23 0915380 Spring, valve
24 0915381 Key, valve spring retainer
25 0915382 Insert, valve spring
26 0915387 Crankshaft
27 0987367 Bearing assy., axial, crankshaft
28 0915385 Nozzle, seal, piston cooling
29 0915386 Seal, piston cooling nozzle
30 0915383 Plug, coolant drain
31 0915647 Seal, fuel pump outlet This part replaces 0915384.
32 0915373 Dowel, adapter to rear supporting ring
33 0915375 Stud, unit injector
34 0915369 Stud, camshaft housing
35 0915370 Dowel, adapter to camshaft housing
36 0915371 Dowel, positioner unit injector
37 0915390 Ring carrier, engine housing, rear
38 0915427 Dowel, adapter to actuator
39 0915501 Washer, block
40 0915798 Bolt, ring carrier
41 0915394 Seal, crankshaft, rear
42 0915395 Gear, oil pump drive
43 0915396 Ring, crankshaft seal, front
44 0987364 Oil pump assembly
45 0915397 Sleeve, adapter to block
46 0915398 Cover, oil pump
47 0915399 Washer, bolt, water pump
48 0915400 Bolt, manifold, oil suction pipe
49 0915401 Relief valve, oil pump
50 0987371 Seal clip, oil pump relief valve
51 0915402 Seal, crankshaft, front
52 0915425 Ring seal, oil pump to engine housing
53 0915393 Bolt, bracket, steer. pump mtg.
54 0915403 Gasket, manifold, oil suction pipe
55 0915404 Manifold, oil suction pipe
56 0915399 Washer, bolt, water pump
57 0915400 Bolt, manifold, oil suction pipe
58 0915405 Gasket, pipe, oil pump suction
59 0915406 Pipe, oil pump suction
60 0915399 Washer, bolt, water pump
62 0915407 Bolt, clamp, oil suction pipe
62 0915408 Washer, support, clamp, oil suction, small
63 0915409 Spacer, support, clamp, oil suction
64 0915410 Washer, coupling
65 0915411 Damper, support, clamp, oil suction
66 0915412 Support, clamp, oil suction pipe
67 0915413 Bolt, support, clamp, oil suction
68 0915407 Bolt, clamp, oil suction pipe
69 0915422 Sprocket, timing belt drive
70 0915423 Damper, crankshaft
71 0915424 Bolt, crankshaft damper
72 0915397 Sleeve, adapter to block
73 0987372 Flywheel
74 0915417 Ring gear, flywheel
75 0915696 Frame seal, block to engine housing
76 0915418 Bolt, flywheel
77 0987134 Coupling, flywheel
78 0915410 Washer, coupling
79 0915420 Bolt, coupling
80 0915421 Key, belt drive sprocket
