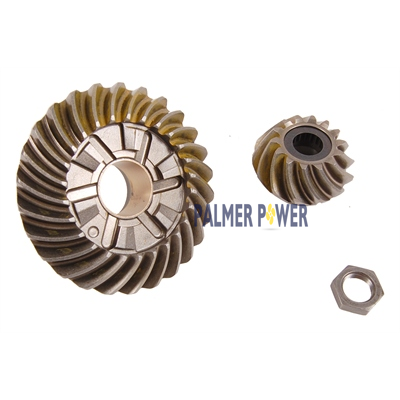

EVINRUDE-JOHNSON 987670 Gear Set (Includes Forward & Pinion)

Write a Review
$577.49
SKU:
987670-OMC
Schematic Object Key:
32

EVINRUDE-JOHNSON 987670 Gear Set (Includes Forward & Pinion)

$577.49

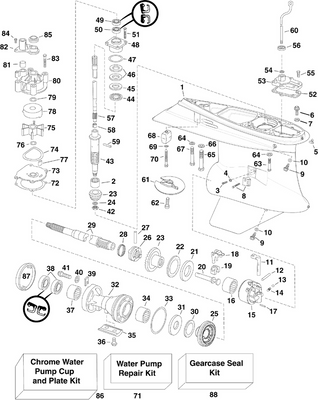

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

EVINRUDE-JOHNSON 987670 Gear Set (Includes Forward & Pinion)

Schematic Object Key : 32

Replacement: This part (987670) replaces 0986656.

Product Description: Gear Set (Includes Forward & Pinion)

Category: STERN DRIVE / 1990 / 4.3 / 432APRPWS 1990 / LOWER GEARCASE - STANDARD (R.H.) ROTATION

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Parts List:

Key Part No. Product Name Additional_info
1 0984979 Gearcase bearing assy
2 0387817 Bearing, pinion
3 0324852 Retaining screw seal
4 0332584 Washer, seal ring
5 0321123 Screen, water intake
6 0160084 Ball
7 0354731 O ring This part replaces 0314728.
8 0387656 Butée, arbre d'entraînement
9 0317624 Screw, driveshaft hsg
10 0911713 Stud, housing to gearcase
11 0915954 Detent, shifter This part replaces 0323946.
12 0911962 Spring
13 0334163 Cradle, shifter
14 0322938 Lever, shift
15 0322941 Arbre, commande de sens de marche
16 0328825 Pin, shift lever
17 0305123 O ring This part replaces 0321119.
18 0395209 Prop shaft assy
19 0382408 Thrust bearing
20 0389042 Thrust bearing assembly, foward gear
21 0321171 Retaining ring
22 0321174 Plug, large
23 0911878 Gasket, cover
24 0397094 Bearing housing seal assy
25 0382407 Bearing assy, forward gear
26 0387247 . needle bearing assy.
27 0320862 . seal
28 0316563 Screw
29 0332583 Screw seal assy.
30 0314731 Rondelle de butée, engrenage de marche arrière
31 0314730 Nut, pinion to driveshaft
32 0987670 Gear set includes forward pinion This part replaces 0986656.
33 0914726 Gear, reverse
34 0327656 Rondelle de butée, arbre d'entraînement
35 0911693 Driveshaft assy
36 0986658 Shift rod assembly
37 0914723 Rod end, shift
38 0308825 Screw roller
39 0914743 Nut, shift rod to end
40 0914736 Shift rod
41 0915272 Shifter, clutch dog This part replaces 0914716.
42 0313448 Pin, clutch dog
43 0324369 Spring, clutch dog pin
44 0327669 Thrust washer, forward gear
45 0986838 Cover seal assy
46 0318372 "o" ring, shift rod
47 0912157 Wiper, shift rod
48 0304027 Screw
49 0984462 Bearing housing
50 0323362 Cale, 0,003" 0,07 mm
50 0323361 Cale, 0,004" 0,10 mm
50 0314745 Cale, 0,005" 0,12 mm
51 0389455 Bearing hsg assy, fwd gear
52 0331880 Pin, housing to gearcase
53 0318544 Screw, fill drain
54 0333572 O ring
55 0431708 Anode, bearing housing
56 0908158 Screw, anode
57 0911714 Stud, water passage hsg
58 0915720 Water passage hsg. This part replaces 0911712.
59 0318717 O ring, bearing hsg
60 0911710 Plug, shaft support
61 0329241 Washer This part replaces 0305981.
62 0121731 Nut, hook, front
63 0915719 Gasket, water passage hsg. This part replaces 0911711.
65 0313715 Screw, cap, hex hd, 7 16 14 x 1
66 0911709 Driveshaft
67 5008966 Nut keeper, propeller This part replaces 0398042.
68 0306394 Cotter pin
69 0330265 Washer
70 0331998 Screw, gearcase to housing This part replaces 0914535.
71 0328096 Screw
72 3853262 Screw, lower to upper housing This part replaces 0914536.
73 0436745 Anode This part replaces 0393023.
74 0912392 Trim tab, gearcase
75 0911705 Guide, water tube
76 0911715 Guide, water tube
77 0912127 Screw, hook
78 0333592 Thrust bushing
79 0911706 Tube water supply
80 0914534 Screw, gearcase to housing, rear
81 0328701 Lockwasher, double ended bolt
82 3853818 Anode, gearcase This part replaces 0984513.
83 0320570 Spacer, nut
84 0391536 Prop, 15 1 2 x 13
84 0391535 Prop, 15 1 2 x 15
84 0765187 Propeller, wdex models This part replaces 0391200.
84 0391201 Prop, 14 1 2 x 19
84 0391202 Prop, 14 1 2 x 21
84 0391203 Bearing assy,rear,std
84 0390831 Prop, 14 1 2 x 14 sst
84 0174926 Propeller, 15 x 15 sst
84 0389925 Prop, 15 x 16 sst
84 0391290 Prop, 15 x 17 sst
84 0389924 Prop, 14 1 2 x 19 sst
84 0389923 Prop, 14 1 2 x 21 sst
84 0389019 Prop, 14 1 2 x 23 sst
84 0394752 Propeller, 14 1 2 x 18 omc raker
84 0394753 Propeller, 14 1 2 x 20 omc raker
84 0394754 Propeller, 14 1 2 x 22 omc raker
84 0394755 Propeller, 13 1 2 x 24 omc raker
84 0394756 Propeller, 14 1 2 x 26 omc raker
84 0394757 Propeller, 14 1 2 x 28 omc raker
84 0174889 Propeller, 15 x 17 omc viper
84 0174814 Propeller, 14 1 2 x 19 omc viper
84 0174815 Propeller, 14 1 2 x 21 omc viper
84 0174816 Propeller, 14 1 2 x 23 omc viper
85 0387157 Bushing assy, prop, std
86 0332394 Converging ring
87 0313926 Propeller hub sleeve
88 0984458 Gearcase seal kit
