KOHLER 24-079-03-S Linkage, speed control

Write a Review
$10.34
SKU:
24-079-03-S
Schematic Object Key:
36

KOHLER 24-079-03-S Linkage, speed control

$10.34

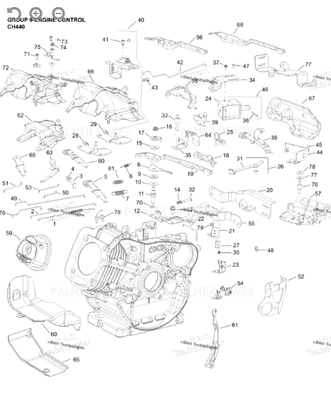

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

KOHLER 24 079 03-S Linkage, speed control

Schematic Object Key : 36

Product Description : Linkage, speed control

Product Category : Kohler Engines/ COMMAND PRO TWIN-CH (CH18-CH25,CH620-CH1000)/ CH20/ CH20-64536 SIMPLICITY/ 3840 Cylinderhead/Breather

Disclaimer : Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components :

Key Name SKU
1 Nut, hex. flange m5x0.8 M-0547050
4 Screw - use m-645016 25 086 397-S
6 Bracket - use 24 126 56 24 126 263-S
7 Clamp, cable 25 237 53-S
8 Screw, hex. flange m5x0.8x16 25 086 398-S
9 Washer, flat 5.5 mm 24 468 01-S
10 Lever,throttle actuator-use(24 090 65-s 24 090 07-S
11 Nut, hex. flange m4x0.7 M-0446030
12 Lever, throttle control 24 090 03-S
13 Screw, hex. cap m4x0.7x30 M-0401030
14 Lever, choke 24 090 05-S
15 Use 24 079 21-s choke linkage 24 079 21-S
16 Washer, spring 1/4" 41 468 03-S
17 Screw, hex. flange m5x0.8x20 SM-0545020
18 Spring, linkage 24 089 01-S
19 Lever, governor - discontinued 24 090 14-S
20 Spring, governor (clear) 24 089 15-S
21 Nut - use m-641060 M-0641060
22 Screw, hex. cap m6x1.0x25 M-0642025
23 Bushing, throttle linkage 25 158 11-S
24 Linkage, throttle 24 079 01-S
25 Bushing, linkage retaining 25 158 08-S
26 Nut, hex. m6x1.0 M-0647060
27 Bolt - use 25 086 47 25 086 47-S
28 Use 24 448 01-s locking tab 24 448 01-S
29 Washer, spring 1/4" 24 468 03-S
30 Washer - use m-631005 M-631005-S
31 Bracket, speed cntrl shft 24 126 06-S
32 Screw - use m-545010 M-545010-S
33 Washer X-25-37-S
34 Spacer 25 431 01-S
35 Lever - use 24 090 22 24 090 22-S
36 Linkage, speed control 24 079 03-S
37 Nut, 3/8-24 grade 2 use 25 100 25-s 25 100 25-S
38 Washer, flat 1/4" (o.d. 1/2") X-25-63-S
41 Panel, front control 24 378 01-S
42 Screw, phl hd 11-16x3/4"-(#dsc) 24 086 06-S
43 Kit, speed control shaft - disc. includes 26,27,29,33,34,44,45. use before serial no. 2406300017; after serial no. 2406300007 or after installation of kit, individual marked* components may be ordered for replacement 24 755 48-S
44 Shaft, speed control 24 144 20-S
45 Knob, speed control 24 341 02-S
46 Cable assembly, choke 24 225 01-S
