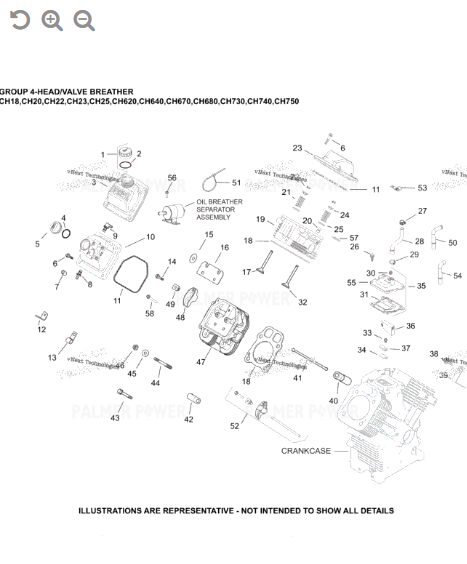

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : NI
Product Description : Hose, breather-use 24 326 88-s
Product Category : Kohler Engines/ COMMAND PRO TWIN-CH (CH18-CH25,CH620-CH1000)/ CH20/ 64598 Lincoln Electric/ 3324 Cylinderhead/Breather
Disclaimer : Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components :
| Key | Name | SKU |
|---|---|---|
| 1 | Kit, oil fill cap (black) | 25 755 13-S |
| 2 | O-ring, dipstick | 25 153 02-S |
| 3 | Kit, valve cover-oil fill | 24 755 140-S |
| 6 | Screw, flg m6x1.0x30-use 25 086 797-s | M-651030-S |
| 11 | O-ring (yellow) -use 24 153 30-s | 24 153 30-S |
| 14 | Screw, flg (black) m6x1.0x34 | M-640034-S |
| 17 | Valve, exhaust (std)-use 32 016 01-s | 24 016 01-S |
| 17 | Valve, exhaust (.25)-(#3201602s) | 32 016 02-S |
| 18 | Kit, cyl head gasket (c17-22) | 24 841 01-S |
| 20 | Seal, valve stem-use 25 032 14-s | 66 032 05-S |
| 21 | Spring, valve | 24 089 02-S |
| 22 | Kit, retainer | 12 755 03-S |
| 23 | Kit, valve cover-plain (plastic) | 24 755 141-S |
| 24 | Retainer, valve spring - use 25 173 28-s | 25 173 28-S |
| 25 | Retainer, spring | 235011-S |
| 26 | Screw,flg thd frm m6x1.0x20-(#25086396s) | M-645020-S |
| 28 | Kit, breather hose and clamp | 24 326 89-S |
| 29 | Hose clamp use 25 237 14-s | 25 237 31-S |
| 31 | Gasket use 24 041 51-s | 24 041 67-S |
| 31 | Gasket, breather-use 24 041 67-s | 24 041 51-S |
| 32 | Valve, intake (std) | 24 017 01-S |
| 32 | Valve, intake (.25)-(#dsc) | 24 017 02-S |
| 33 | Screw, flg thd frm m5x.8x10 | M-545010-S |
| 34 | Reed, breather-(#2440206s) before s/n 4923100011 | 24 402 06-S |
| 34 | Reed, breather after s/n 4923100001 | 24 402 06-S |
| 35 | Kit, breather assembly | 24 033 01-S |
| 36 | Filter, breather-use 24 050 11-s | 24 050 01-S |
| 37 | Retainer, reed | 66 018 04-S |
| 38 | Screw, thread forming | 25 086 395-S |
| 40 | Lifter, hydraulic valve-use 25 351 10-s | 25 351 11-S |
| 41 | Rod, push | 24 411 05-S |
| 43 | Screw - use 62 086 08-s | 12 086 16-S |
| 48 | Arm, rocker | 25 186 01-S |
| 49 | Pivot, rocker arm | 24 599 02-S |
| 51 | Tie | 25 454 05-S |
| 52 | Kit, valve train | 24 755 66-S |
| 57 | Retainer, valve guide (km) | 24 018 05-S |
| NI | Hose, breather - use 12 326 25-s | 12 326 25-S |
| NI | Head, assem cylinder #1 -use 24 318 109- | 24 318 175-S |
| NI | Head, assem cylinder #2 -use 24 318 117- | 24 318 205-S |
| NI | Hose, breather (km)-use 24 326 83-s | 24 326 83-S |
| NI | Hose, breather-use 24 326 86-s | 24 326 86-S |
| NI | Hose, breather-use 24 326 88-s | 24 326 147-S |
| NI | Strap, lifting-use 25 445 03-s | 25 445 03-S |
| NI | Liner, exhaust port-use 24 605 07-s | 24 605 01-S |
