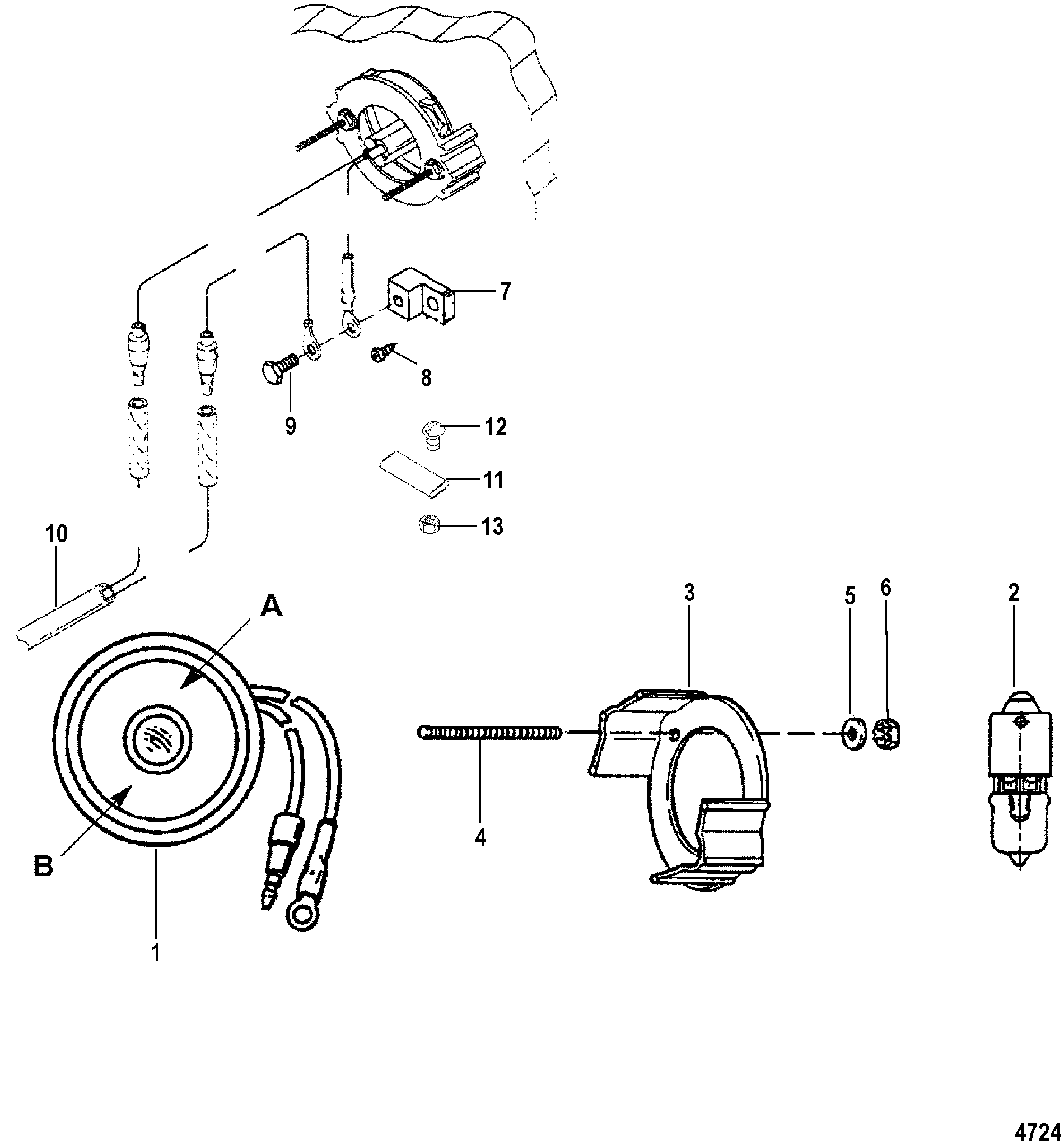

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 8
Product Description : MERCURY 16324 Screw, (#8 X .625)
Product Category : 13.5 (4-STROKE) (International)/ 0P401000 & Up/ Visual Warning
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | PLATE ASSEMBLY, Lamp Mounting | 17334A 4 |
2 | LAMP | 17429 |
3 | BRACKET | 76424 |
4 | STUD, (#10-32 x 2.00) | 55422 |
5 | WASHER, (.200 x .440 x .032) | 24676 |
6 | NUT, (#10-32) Stainless Steel | 68219 |
7 | TERMINAL BLOCK | 45915 |
8 | SCREW, (#8 x .625) | 16324 |
9 | SCREW, (#10-16 x .375) | 878607 |
10 | CABLE ASSEMBLY | 11149A 3 |
11 | INSULATOR, (2.00 Inch) | 62359 4 |
12 | SCREW, (#10-32 x .250) | 24231 |
13 | NUT AND LOCKWASHER, (#10-32) | 27164 |
1 | PLATE ASSEMBLY, Lamp Mounting | 17334A 4 |
2 | LAMP | 17429 |
3 | BRACKET | 76424 |
4 | STUD, (#10-32 x 2.00) | 55422 |
5 | WASHER, (.200 x .440 x .032) | 24676 |
6 | NUT, (#10-32) Stainless Steel | 68219 |
7 | TERMINAL BLOCK | 45915 |
8 | SCREW, (#8 x .625) | 16324 |
9 | SCREW, (#10-16 x .375) | 878607 |
10 | CABLE ASSEMBLY | 11149A 3 |
11 | INSULATOR, (2.00 Inch) | 62359 4 |
12 | SCREW, (#10-32 x .250) | 24231 |
13 | NUT AND LOCKWASHER, (#10-32) | 27164 |
Quick Overview
MERCURY_16324
SKU : 16324
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
