MERCURY 18787A18 Cylinder Head

Write a Review
$496.07
SKU:
18787A18
Schematic Object Key:
1

MERCURY 18787A18 Cylinder Head

$496.07

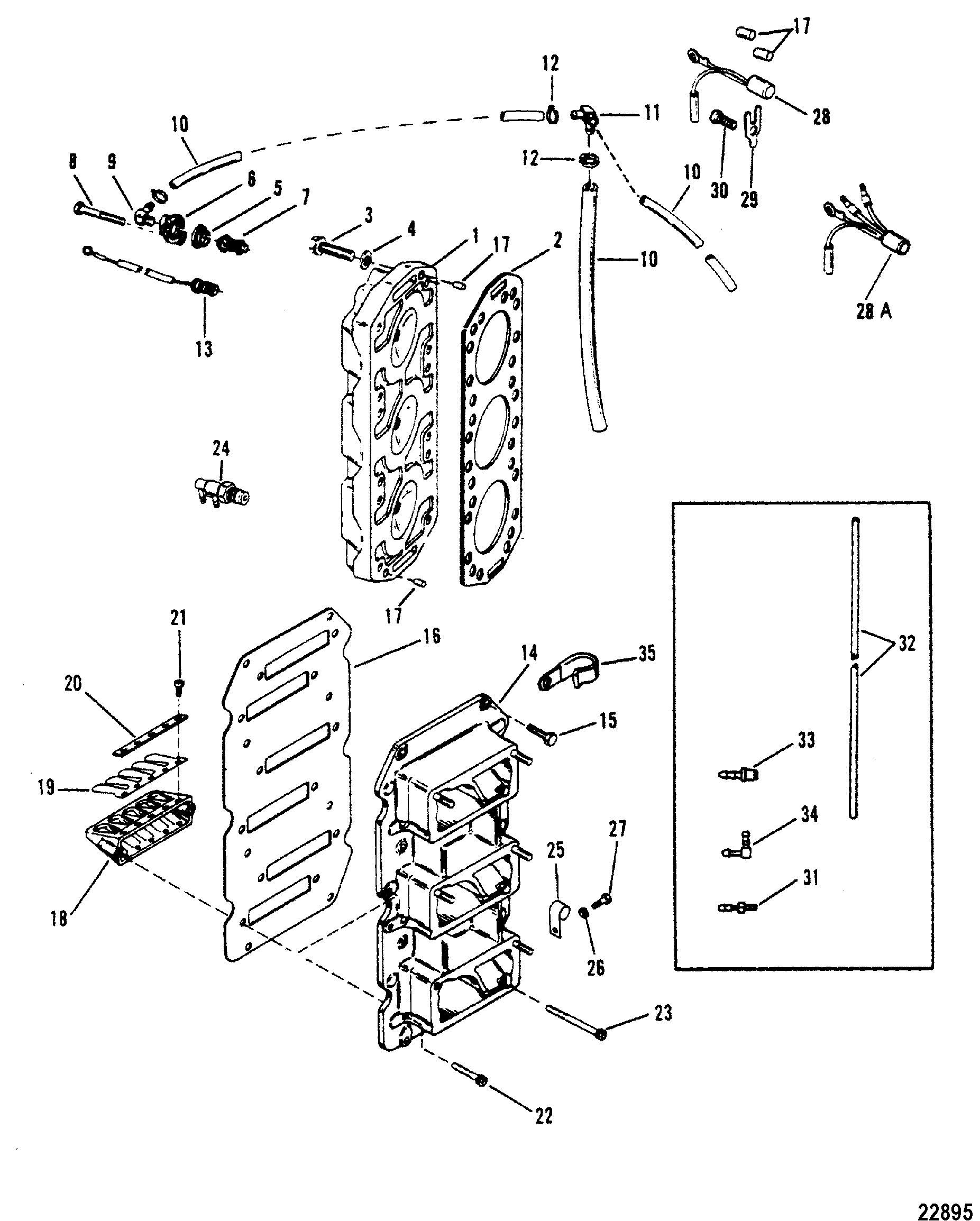

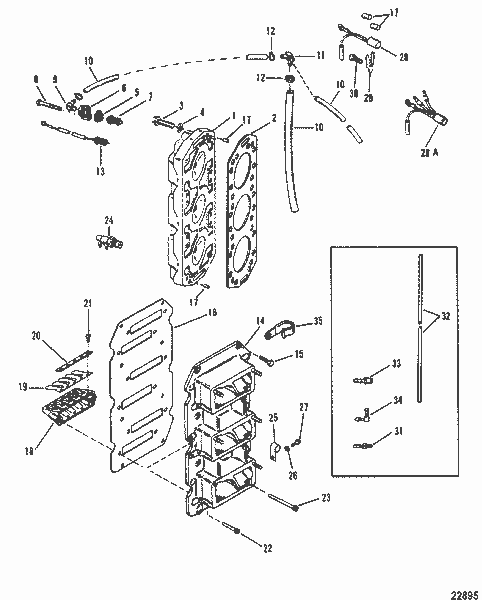

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 18787A18 Cylinder Head

Schematic Object Key : 1

Product Description : MERCURY 18787A18 Cylinder Head

Product Category : V-150/ 0D082000 THRU 0G303045/ Reed Block And Cylinder Head

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 CYLINDER HEAD 18787A18
1 CYLINDER HEAD 8M0143213
1 CYLINDER HEAD 8M0143213
1 CYLINDER HEAD 8M0143213
1 CYLINDER HEAD ASSEMBLY 18488F 2
2 GASKET 18785T
2 GASKET 822844T05
2 GASKET 822844T05
2 GASKET 822844T05
3 SCREW, (.375-16 x 2.30) 98534
4 WASHER, (.406 x .812 x .065) (USE WHERE APPLICABLE) 25909
5 GASKET 62386001
6 COVER KIT 90390A 1
7 THERMOSTAT 75692
8 SCREW, (.312-18 x 1.00) 35386
9 FITTING, (.250-18) 90 Degree - Brass 687271
10 HOSE, (24.500 Inches Bulk) 77653101
11 FITTING 68728
12 TIE STRAP, (8.00 Inches) 816311T
13 SENDER, Temperature (STBD.) 97465
14 PLATE ASSEMBLY 43517A 9
15 SCREW, (.250-20 x .875) Stainless Steel 28668
16 GASKET 14697 2
17 PIN, Dowel (.250 x .625) 63779
18 REED BLOCK 75953
19 REED ASSEMBLY 75362A 1
20 CLAMP, Reed 96183 2
21 SCREW, (#8-32 x .250) 823588
22 SCREW, (.250-20 x .880) 55715
23 SCREW, (.250-20 x 2.00) 96529
24 VALVE, Thermal Air (OLD DESIGN) 814612
25 CLIP 23567
26 C WASHER 8M0084613
27 SCREW, (#10-16 x .500) 878608
28 SENSOR ASSEMBLY, Temperature (PORT) (2-WIRE) 13536A 7
28A SENSOR ASSEMBLY, Temperature (PORT) (4-WIRE) 13536A 6
29 RETAINER 13715 1
30 SCREW, (.312-18 x .500) 98257
31 FITTING, Barbed 56759
32 TUBING, (20.00 Feet Bulk) 892024122
33 CHECK VALVE (PRESS-IN 13/16") 426982
33 CHECK VALVE (PRESS-IN 11/16") 426233
34 FITTING, Elbow (PRESS-IN) 822715
35 J CLIP 55098
- GASKET SET, Engine 815791A92
- POWERHEAD ASSEMBLY 878365T00
- POWERHEAD ASSEMBLY 812817T97
- POWERHEAD ASSEMBLY 823434T97
- POWERHEAD ASSEMBLY 823434T97
- POWERHEAD ASSEMBLY 812817T97
- POWERHEAD ASSEMBLY 813043T97
1 CYLINDER HEAD 18787A18
1 CYLINDER HEAD 8M0143213
1 CYLINDER HEAD 8M0143213
1 CYLINDER HEAD 8M0143213
1 CYLINDER HEAD ASSEMBLY 18488F 2
2 GASKET 18785T
2 GASKET 822844T05
2 GASKET 822844T05
2 GASKET 822844T05
3 SCREW, (.375-16 x 2.30) 98534
4 WASHER, (.406 x .812 x .065) (USE WHERE APPLICABLE) 25909
5 GASKET 62386001
6 COVER KIT 90390A 1
7 THERMOSTAT 75692
8 SCREW, (.312-18 x 1.00) 35386
9 FITTING, (.250-18) 90 Degree - Brass 687271
10 HOSE, (24.500 Inches Bulk) 77653101
11 FITTING 68728
12 TIE STRAP, (8.00 Inches) 816311T
13 SENDER, Temperature (STBD.) 97465
14 PLATE ASSEMBLY 43517A 9
15 SCREW, (.250-20 x .875) Stainless Steel 28668
16 GASKET 14697 2
17 PIN, Dowel (.250 x .625) 63779
18 REED BLOCK 75953
19 REED ASSEMBLY 75362A 1
20 CLAMP, Reed 96183 2
21 SCREW, (#8-32 x .250) 823588
22 SCREW, (.250-20 x .880) 55715
23 SCREW, (.250-20 x 2.00) 96529
24 VALVE, Thermal Air (OLD DESIGN) 814612
25 CLIP 23567
26 C WASHER 8M0084613
27 SCREW, (#10-16 x .500) 878608
28 SENSOR ASSEMBLY, Temperature (PORT) (2-WIRE) 13536A 7
28A SENSOR ASSEMBLY, Temperature (PORT) (4-WIRE) 13536A 6
29 RETAINER 13715 1
30 SCREW, (.312-18 x .500) 98257
31 FITTING, Barbed 56759
32 TUBING, (20.00 Feet Bulk) 892024122
33 CHECK VALVE (PRESS-IN 13/16") 426982
33 CHECK VALVE (PRESS-IN 11/16") 426233
34 FITTING, Elbow (PRESS-IN) 822715
35 J CLIP 55098
- GASKET SET, Engine 815791A92
- POWERHEAD ASSEMBLY 878365T00
- POWERHEAD ASSEMBLY 812817T97
- POWERHEAD ASSEMBLY 823434T97
- POWERHEAD ASSEMBLY 823434T97
- POWERHEAD ASSEMBLY 812817T97
- POWERHEAD ASSEMBLY 813043T97



Quick Overview

HEAD KIT-CYLINDER

SKU : 18787A18

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061124486
