MERCURY 21825 Nut (.250-28) | PalmerPower
close
close
click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Boat Repair Service

    Diagnostics, Repairs, and Maintenance

  • Fast Delivery

MERCURY 21825 Nut, (.250-28), Throttle Cable

Write a Review
$1.60
SKU:
21825
Schematic Object Key:
12

MERCURY 21825 Nut, (.250-28), Throttle Cable

$1.60

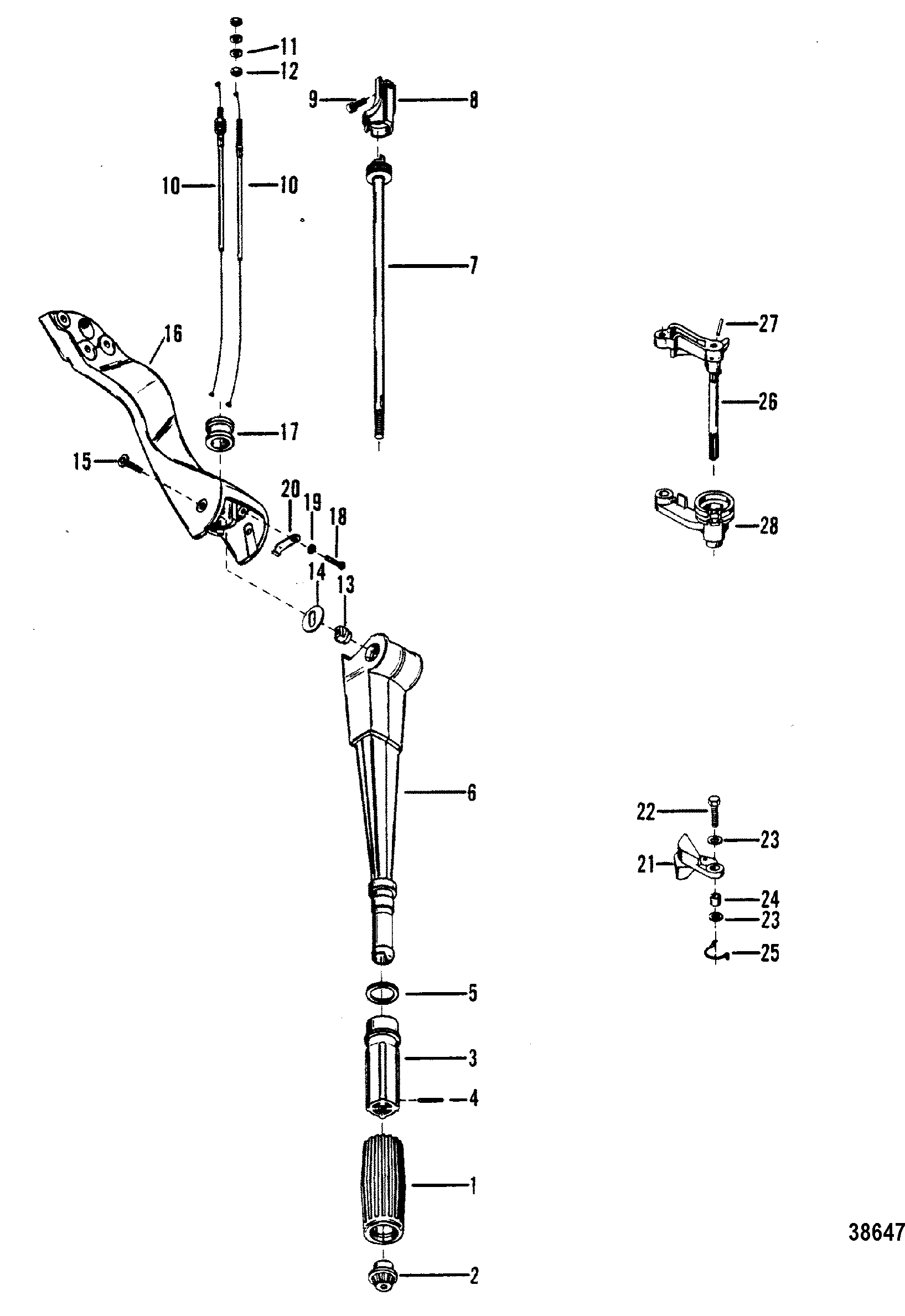

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 21825 Nut, (.250-28), Throttle Cable

Schematic Object Key : 12

Product Description : MERCURY 21825 Nut, (.250-28), Throttle Cable

Product Category : 7.5/ 7125388 & Up/ Steering Handle And Throttle Linkage

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- HANDLE ASSEMBLY, Steering 77194A 2
1 GRIP, HANDLE 60854
2 CAP, HANDLE 77237
3 HANDLE, THROTTLE SHAFT 77238A 1
4 PIN, STEERING HANDLE 31656
5 WASHER 62252
6 ARM, STEERING HANDLE 77194
7 SHAFT, THROTTLE 97379
7 SHAFT, Throttle 97379 1
8 BLOCK, CABLE GUIDE 77203
9 SCREW, (.250-28 x .750), BLOCK TO STEERING ARM 69069
10 CABLE, THROTTLE 86210
11 WASHER, THROTTLE CABLE 37998
12 NUT, (.250-28), THROTTLE CABLE 21825
13 PIVOT, STEERING HANDLE TO BRACKET 48003
14 SHIM (.015) 48002015
15 SCREW, (.250-28 x .620) 96138
16 BRACKET, STEERING ARM 96432F1
17 GROMMET, STEERING ARM BRACKET 67272
18 SCREW, (#10-16 x .625) 62233
19 WASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRING 30164
20 SPRING, DETENT - STEERING HANDLE 72847
21 FOLLOWER, OVER - SPEED LIMITER 86212
22 SCREW, (.250-28 x 1.00) 20653
23 WASHER, (.281 x .500 x .060) Stainless Steel, SPEED LIMITER FOLLOWER SCREW 29245
24 BUSHING, SPEED LIMITER FOLLOWER SCREW 63320
25 SPRING, NEUTRAL SPEED LIMITER FOLLOWER 39042
26 LEVER ASSEMBLY, THROTTLE CONTROL 66374A 2
27 PIN, Roll, THROTTLE CONTROL LEVER 76207
28 SPOOL, THROTTLE 86070
- HANDLE ASSEMBLY, Steering 77194A 2
1 GRIP, HANDLE 60854
2 CAP, HANDLE 77237
3 HANDLE, THROTTLE SHAFT 77238A 1
4 PIN, STEERING HANDLE 31656
5 WASHER 62252
6 ARM, STEERING HANDLE 77194
7 SHAFT, THROTTLE 97379
7 SHAFT, Throttle 97379 1
8 BLOCK, CABLE GUIDE 77203
9 SCREW, (.250-28 x .750), BLOCK TO STEERING ARM 69069
10 CABLE, THROTTLE 86210
11 WASHER, THROTTLE CABLE 37998
12 NUT, (.250-28), THROTTLE CABLE 21825
13 PIVOT, STEERING HANDLE TO BRACKET 48003
14 SHIM (.015) 48002015
15 SCREW, (.250-28 x .620) 96138
16 BRACKET, STEERING ARM 96432F1
17 GROMMET, STEERING ARM BRACKET 67272
18 SCREW, (#10-16 x .625) 62233
19 WASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRING 30164
20 SPRING, DETENT - STEERING HANDLE 72847
21 FOLLOWER, OVER - SPEED LIMITER 86212
22 SCREW, (.250-28 x 1.00) 20653
23 WASHER, (.281 x .500 x .060) Stainless Steel, SPEED LIMITER FOLLOWER SCREW 29245
24 BUSHING, SPEED LIMITER FOLLOWER SCREW 63320
25 SPRING, NEUTRAL SPEED LIMITER FOLLOWER 39042
26 LEVER ASSEMBLY, THROTTLE CONTROL 66374A 2
27 PIN, Roll, THROTTLE CONTROL LEVER 76207
28 SPOOL, THROTTLE 86070



Schematic Object Key : 14

Product Description : NUT, (.250-28)

Title : Mercruiser race Model NXT1 TRANSOM

Category: Gas; Race Sterndrives; NXT1 TRANSOM; 0M954505 & Up; Trim Pump Assembly


Quick Overview

MERCURY_21825

SKU : 21825

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force
