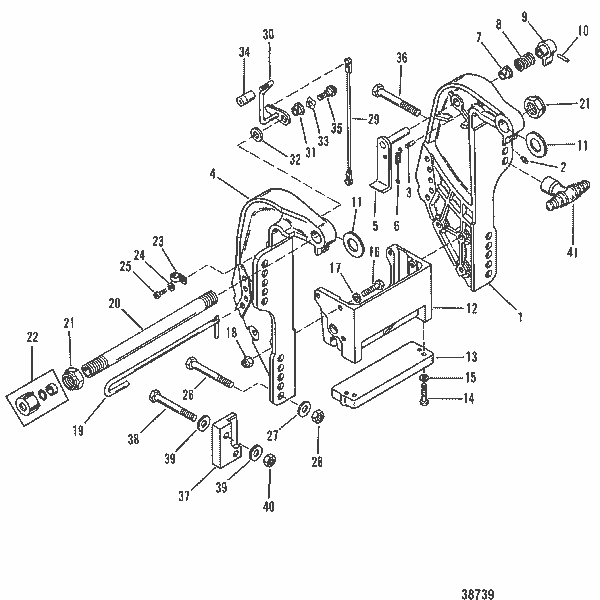

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 28
Product Description : MERCURY 35000 Nut, (.500-20) Stainless Steel
Product Category : 35/ 9466647 & Up/ Transom Bracket(Long Shaft)(0C159200 And Up); Others/Instock
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | BRACKET ASSEMBLY, Transom ( PORT ) | 9751A 1 |
2 | FITTING, Grease | 98727 |
3 | PIN, Groove | 99604 |
4 | BRACKET, Transom ( STARBOARD ) | 9750T |
5 | LEVER ASSEMBLY, Tilt Lock | 893704T01 |
6 | SPRING | 99622 |
7 | NYLINER | 65830 |
8 | SPRING | 812708 |
9 | KNOB | 812709 |
10 | PIN, Groove | 99615 |
11 | WASHER | 19619 |
12 | BRACKET, Anchor | 18486F5 |
13 | ANODE ASSEMBLY | 818298Q1 |
14 | SCREW, (M6 x 35) | 40003 32 |
15 | WASHER, (.281 x .500 x .060) Stainless Steel | 29245 |
16 | SCREW, (M8 x 30) | 40003 54 |
16 | SCREW, (M8 x 35) | 40003 55 |
17 | LOCKWASHER, (M8) | 40025 7 |
18 | NUT, (M8) | 401388 |
19 | PIN ASSEMBLY, Tilt | 19613A 1 |
20 | TILT TUBE | 8M0041938 |
21 | NUT, (.875-14) | 858869 |
22 | SEAL KIT | 19624A 1 |
23 | CLIP | 22740 |
24 | C WASHER | 8M0084613 |
25 | SCREW, (#10-16 x .500) | 878608 |
26 | SCREW, (.500-20 x 4.00) | 814259 |
27 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 28421 |
28 | NUT, (.500-20) Stainless Steel | 35000 |
29 | LINK | 8M0084737 |
30 | LEVER ASSEMBLY, Tilt | 19615A05 |
31 | BUSHING | 812707 |
32 | WASHER ( .030" ) | 815796 |
32 | WASHER, (.520 x .850 x .060) Nylon - Black | 8M0042643 |
33 | WAVE WASHER | 99611 |
34 | TILT KNOB | 8M0007469 |
35 | SCREW, (.375-16 x .62) | 19611 |
36 | SCREW, (.500-20 x 3.500) | 76841 |
37 | BRACKET, Mounting | 812432F5 |
37 | BRACKET, Mounting | 812433F5 |
38 | SCREW, (.375-24 x 4.00) | 88432 |
39 | WASHER, (.390 x 1.00 x .06) | 8M0042641 |
40 | NUT, (.375-24) | 862903 |
41 | NUT, T Handle | 812434A 2 |
1 | BRACKET ASSEMBLY, Transom ( PORT ) | 9751A 1 |
2 | FITTING, Grease | 98727 |
3 | PIN, Groove | 99604 |
4 | BRACKET, Transom ( STARBOARD ) | 9750T |
5 | LEVER ASSEMBLY, Tilt Lock | 893704T01 |
6 | SPRING | 99622 |
7 | NYLINER | 65830 |
8 | SPRING | 812708 |
9 | KNOB | 812709 |
10 | PIN, Groove | 99615 |
11 | WASHER | 19619 |
12 | BRACKET, Anchor | 18486F5 |
13 | ANODE ASSEMBLY | 818298Q1 |
14 | SCREW, (M6 x 35) | 40003 32 |
15 | WASHER, (.281 x .500 x .060) Stainless Steel | 29245 |
16 | SCREW, (M8 x 30) | 40003 54 |
16 | SCREW, (M8 x 35) | 40003 55 |
17 | LOCKWASHER, (M8) | 40025 7 |
18 | NUT, (M8) | 401388 |
19 | PIN ASSEMBLY, Tilt | 19613A 1 |
20 | TILT TUBE | 8M0041938 |
21 | NUT, (.875-14) | 858869 |
22 | SEAL KIT | 19624A 1 |
23 | CLIP | 22740 |
24 | C WASHER | 8M0084613 |
25 | SCREW, (#10-16 x .500) | 878608 |
26 | SCREW, (.500-20 x 4.00) | 814259 |
27 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 28421 |
28 | NUT, (.500-20) Stainless Steel | 35000 |
29 | LINK | 8M0084737 |
30 | LEVER ASSEMBLY, Tilt | 19615A05 |
31 | BUSHING | 812707 |
32 | WASHER ( .030" ) | 815796 |
32 | WASHER, (.520 x .850 x .060) Nylon - Black | 8M0042643 |
33 | WAVE WASHER | 99611 |
34 | TILT KNOB | 8M0007469 |
35 | SCREW, (.375-16 x .62) | 19611 |
36 | SCREW, (.500-20 x 3.500) | 76841 |
37 | BRACKET, Mounting | 812432F5 |
37 | BRACKET, Mounting | 812433F5 |
38 | SCREW, (.375-24 x 4.00) | 88432 |
39 | WASHER, (.390 x 1.00 x .06) | 8M0042641 |
40 | NUT, (.375-24) | 862903 |
41 | NUT, T Handle | 812434A 2 |
Schematic Object Key : 43
Product Description : NUT, (.500-20) Stainless Steel
Title : Mercruiser race Model NXT1 SSM
Category: Gas; Race Sterndrives; NXT1 SSM; ALL & Up; U Joint Housing Assembly(SSM Six - Late Style)
Quick Overview
NUT @2 Q=T 11
SKU : 35000
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061137783
