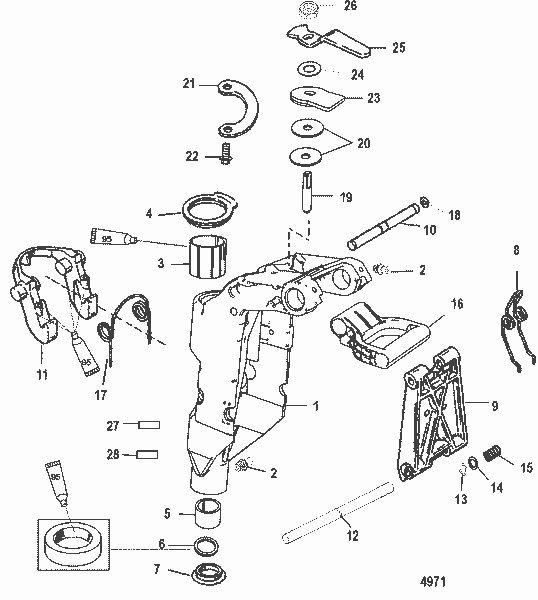

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 6
Product Description : MERCURY 42077 Seal
Product Category : 15/ 1B000001 & Up/ Swivel Bracket; Others/Instock
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | SWIVEL BRACKET ASSEMBLY | 8831T08 |
2 | FITTING, Grease | 74036 |
3 | BEARING | 42140 2 |
4 | BEARING, Thrust - Upper | 42080T01 |
5 | BUSHING | 42139 |
6 | SEAL | 42077 |
7 | THRUST WASHER | 42373 |
8 | SPRING | 42130 1 |
9 | BRACKET | 42082T04 |
10 | PIN | 42081 1 |
11 | HOOK, Reverse Lock | 8M0075731 |
12 | PIN ASSEMBLY, Pivot | 830741A 1 |
13 | RING, Retaining | 832720 |
14 | WASHER, (.390 x .600 x .032) | 8M0027716 |
15 | SPRING | 42128 |
16 | CARRYING HANDLE | 420852 |
17 | SPRING | 42127 |
18 | RING, Retaining | 13194 |
19 | ROD | 821961 |
20 | DISC | 816562 1 |
21 | PLATE KIT | 821958A 1 |
22 | SCREW, (M6 x 13) Stainless Steel | 40011126 |
23 | BRAKE PLATE | 821957 |
24 | WASHER | 29330 |
25 | HANDLE | 821959 |
26 | NUT, (.375-24) Stainless Steel | 826709113 |
27 | DECAL, Co-Pilot | 823701 1 |
28 | NOT SOLD SEPARATE, Decal-Serial Overlaminate | NSS |
1 | SWIVEL BRACKET ASSEMBLY | 8831T08 |
2 | FITTING, Grease | 74036 |
3 | BEARING | 42140 2 |
4 | BEARING, Thrust - Upper | 42080T01 |
5 | BUSHING | 42139 |
6 | SEAL | 42077 |
7 | THRUST WASHER | 42373 |
8 | SPRING | 42130 1 |
9 | BRACKET | 42082T04 |
10 | PIN | 42081 1 |
11 | HOOK, Reverse Lock | 8M0075731 |
12 | PIN ASSEMBLY, Pivot | 830741A 1 |
13 | RING, Retaining | 832720 |
14 | WASHER, (.390 x .600 x .032) | 8M0027716 |
15 | SPRING | 42128 |
16 | CARRYING HANDLE | 420852 |
17 | SPRING | 42127 |
18 | RING, Retaining | 13194 |
19 | ROD | 821961 |
20 | DISC | 816562 1 |
21 | PLATE KIT | 821958A 1 |
22 | SCREW, (M6 x 13) Stainless Steel | 40011126 |
23 | BRAKE PLATE | 821957 |
24 | WASHER | 29330 |
25 | HANDLE | 821959 |
26 | NUT, (.375-24) Stainless Steel | 826709113 |
27 | DECAL, Co-Pilot | 823701 1 |
28 | NOT SOLD SEPARATE, Decal-Serial Overlaminate | NSS |
Schematic Object Key : 3,14
Product Description : SEAL
Title : Mercruiser race Model Scorpion 377 Sterndrive
Category: Gas; Others; Scorpion 377 Sterndrive; 0L416146 THRU 0M907201; Oil Filter(Remote)
Quick Overview
SEAL Q=T 26
SKU : 42077
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061146426
