MERCURY 42213A24 Swivel Head

Write a Review
$346.25
SKU:
42213A24
Schematic Object Key:
1

MERCURY 42213A24 Swivel Head

$346.25

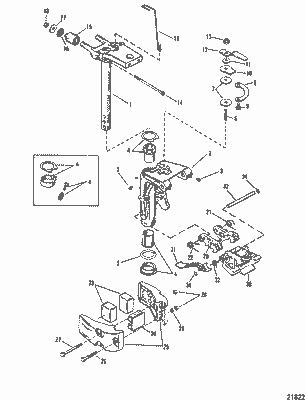

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 42213A24 Swivel Head

Schematic Object Key : 1

Product Description : MERCURY 42213A24 Swivel Head

Product Category : 15 VIKING/ 0P325500 & Up/ Swivel Head And Steering Handle

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 SWIVEL HEAD 42213A24
2 BUSHING 823939
3 PLATE 822147 1
4 FITTING, Grease 74036
5 SCREW, (M5 x 16) Stainless Steel 40105 16
6 WASHER 822145
7 WAVE WASHER 826792
8 WASHER 822146
9 ARM ASSEMBLY, Steering Handle 821468A66
10 RETAINER 822441
11 SCREW, (M5 x 16) Stainless Steel 40011107
12 COVER KIT 822148A 3
12 COVER KIT 822148A 2
13 PULLEY 822150
14 NOT SOLD SEPARATE (Pulley Case) NSS
15 SCREW, (#10-16 x .500) 878608
16 CABLE, Throttle 43242T18
16 CABLE, Throttle 43242 6
17 SLEEVE 96009 10
17 SLEEVE, (12.00 Inches) 96009 9
18 DECAL 824200 2
18 DECAL 824200 4
19 GRIP 99589003
20 SWITCH ASSEMBLY, Stop 823609A17
21 KNOB, Throttle 821972T
22 LOCK, Throttle 892995
23 SCREW, (M6 x 25) 40003 30
24 HANDLE, Throttle 822429
24 HANDLE, Throttle 821465
25 TILLER TUBE 821463T01
26 SPRING 96203
1 SWIVEL HEAD 42213A24
2 BUSHING 823939
3 PLATE 822147 1
4 FITTING, Grease 74036
5 SCREW, (M5 x 16) Stainless Steel 40105 16
6 WASHER 822145
7 WAVE WASHER 826792
8 WASHER 822146
9 ARM ASSEMBLY, Steering Handle 821468A66
10 RETAINER 822441
11 SCREW, (M5 x 16) Stainless Steel 40011107
12 COVER KIT 822148A 3
12 COVER KIT 822148A 2
13 PULLEY 822150
14 NOT SOLD SEPARATE (Pulley Case) NSS
15 SCREW, (#10-16 x .500) 878608
16 CABLE, Throttle 43242T18
16 CABLE, Throttle 43242 6
17 SLEEVE 96009 10
17 SLEEVE, (12.00 Inches) 96009 9
18 DECAL 824200 2
18 DECAL 824200 4
19 GRIP 99589003
20 SWITCH ASSEMBLY, Stop 823609A17
21 KNOB, Throttle 821972T
22 LOCK, Throttle 892995
23 SCREW, (M6 x 25) 40003 30
24 HANDLE, Throttle 822429
24 HANDLE, Throttle 821465
25 TILLER TUBE 821463T01
26 SPRING 96203



Quick Overview

SWIVEL HEAD-BLACK

SKU : 42213A24

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061147249
