MERCURY 55910 1 Nut, Pinion Gear

Write a Review
$4.10
SKU:
559101
Schematic Object Key:
25

MERCURY 55910 1 Nut, Pinion Gear

$4.10

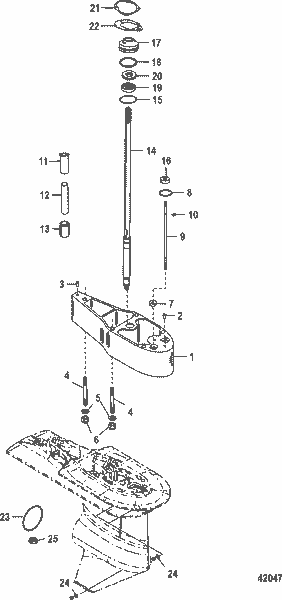

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 55910 1 Nut, Pinion Gear

Schematic Object Key : 25

Product Description : MERCURY 55910 1 Nut, Pinion Gear

Product Category : 40 EFI (4 CYL.)(4-STROKE)/ 1C050252 & Up/Extension Kit - 2.5 Inch, Driveshaft Housing (879

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- EXTENSION KIT, Driveshaft -2.5 Inch 879150A88
1 SPACER 816696T 5
2 PIN, Dowel - Without Hole (.375 x .625) 43044
3 PIN, Dowel - With Hole (.375 x .625) 8M0084244
4 STUD, (M10 x 120) 8M0034425
5 WASHER, (.406 x .750 x .105) Stainless Steel 856774
6 NUT, (M10) 40140
7 SPACER 813745
8 O-RING, (.987 x .103) 45258
9 SHIFT SHAFT ASSEMBLY 879172A39
10 E RING 29641
11 COUPLER 8M0151045
12 TUBE, Water 828937 2
13 SEAL 43023 2
14 DRIVESHAFT 880184
15 SHIM SET 812770A 1
16 SEAL, Oil 816464 1
17 BASE ASSEMBLY, Water Pump 812966A 7
18 O-RING, (1.859 x .139) 30224
19 SEAL, Oil 814669
20 SEAL, Oil 814670
21 GASKET, Upper Water Pump 822189
22 GASKET 8M4502052
23 O-RING 815460
24 SEAL 830749
25 NUT, Pinion Gear 55910 1
- INSTRUCTION SHEET, Extension Kit 879345036
- EXTENSION KIT, Driveshaft -2.5 Inch 879150A88
1 SPACER 816696T 5
2 PIN, Dowel - Without Hole (.375 x .625) 43044
3 PIN, Dowel - With Hole (.375 x .625) 8M0084244
4 STUD, (M10 x 120) 8M0034425
5 WASHER, (.406 x .750 x .105) Stainless Steel 856774
6 NUT, (M10) 40140
7 SPACER 813745
8 O-RING, (.987 x .103) 45258
9 SHIFT SHAFT ASSEMBLY 879172A39
10 E RING 29641
11 COUPLER 8M0151045
12 TUBE, Water 828937 2
13 SEAL 43023 2
14 DRIVESHAFT 880184
15 SHIM SET 812770A 1
16 SEAL, Oil 816464 1
17 BASE ASSEMBLY, Water Pump 812966A 7
18 O-RING, (1.859 x .139) 30224
19 SEAL, Oil 814669
20 SEAL, Oil 814670
21 GASKET, Upper Water Pump 822189
22 GASKET 8M4502052
23 O-RING 815460
24 SEAL 830749
25 NUT, Pinion Gear 55910 1
- INSTRUCTION SHEET, Extension Kit 879345036



Quick Overview

NUT @2 11

SKU : 559101

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061859159
