MERCURY 6029 Main Fuel Jet (.068 - 55/60)

Write a Review
$8.50
SKU:
6029
Schematic Object Key:
19

MERCURY 6029 Main Fuel Jet (.068 - 55/60)

$8.50

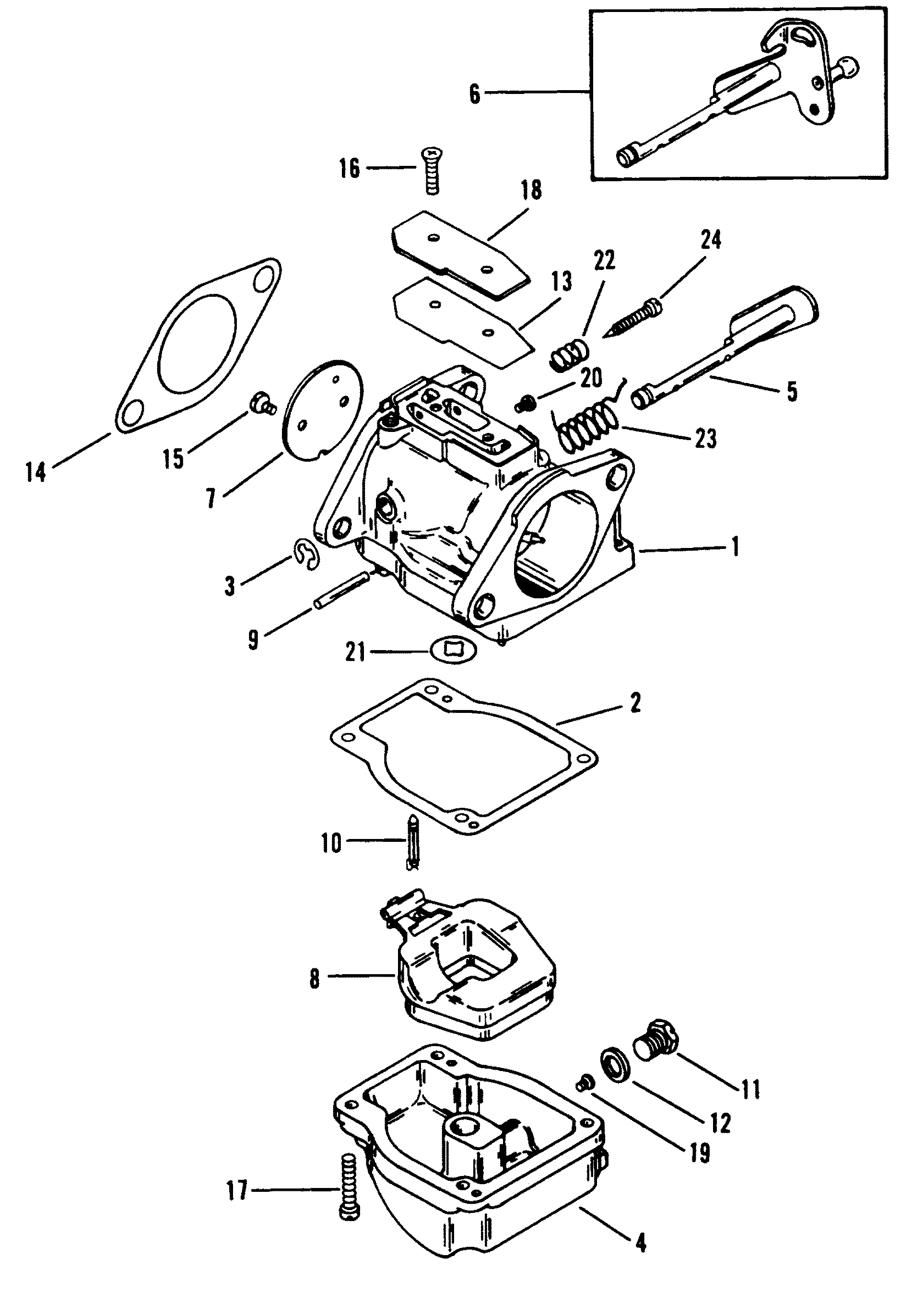

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 6029 Main Fuel Jet (.068 - 55/60)

Schematic Object Key : 19

Product Description : MERCURY 6029 Main Fuel Jet (.068 - 55/60)

Product Category : 50 (3 CYL.)/ 0D000750 THRU 0G290584/ Carburetor (Wme-22\22B\23\24\35)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 CARBURETOR (TOP) 815406A 1
1 CARBURETOR (CENTER) 815406A 2
1 CARBURETOR (BOTTOM) 815406A 3
1 CARBURETOR (TOP) 821946A45
1 CARBURETOR (CENTER) 821946A46
1 CARBURETOR (BOTTOM) 821946A47
1 CARBURETOR (TOP) 815405A 4
1 CARBURETOR (CENTER) 815405A 5
1 CARBURETOR (BOTTOM) 815405A 6
2 GASKET, FUEL BOWL NSS
3 RETAINING RING NSS
4 FUEL BOWL (UPPER) 811695
4 FUEL BOWL (CENTER/BOTTOM) 811693
4 FUEL BOWL (UPPER) 811695
4 FUEL BOWL (CENTER/BOTTOM) 811693
5 THROTTLE SHAFT (UPPER/BOTTOM) 811218
6 THROTTLE SHAFT (CENTER) 811219
7 THROTTLE VALVE 811216
7 THROTTLE VALVE 9593
8 FLOAT 9594
9 FLOAT SHAFT NSS
10 INLET NEEDLE VALVE 879194011
11 PLUG 95961
11 PLUG KIT 811694
12 GASKET, PLUG NSS
13 GASKET, COVER PLATE NSS
14 GASKET, FLANGE 814446 1
15 SCREW, THROTTLE VALVE NSS
16 SCREW, COVER PLATE 811220
17 SCREW, FUEL BOWL 808612
18 COVER PLATE 811221
19 MAIN FUEL JET (.052 - 50) 6359
19 MAIN FUEL JET (.068 - 55/60) 6029
19 MAIN FUEL JET (.070 - 60) 6030
20 VENT JET (.090) 6247
21 GASKET NSS
22 SPRING NSS
23 SPRING NSS
24 IDLE NEEDLE NSS
- ENGINE GASKET SET 812867A97
- CARB REPAIR KIT 8236354
- CARB GASKET KIT 811223 1
1 CARBURETOR (TOP) 815406A 1
1 CARBURETOR (CENTER) 815406A 2
1 CARBURETOR (BOTTOM) 815406A 3
1 CARBURETOR (TOP) 821946A45
1 CARBURETOR (CENTER) 821946A46
1 CARBURETOR (BOTTOM) 821946A47
1 CARBURETOR (TOP) 815405A 4
1 CARBURETOR (CENTER) 815405A 5
1 CARBURETOR (BOTTOM) 815405A 6
2 GASKET, FUEL BOWL NSS
3 RETAINING RING NSS
4 FUEL BOWL (UPPER) 811695
4 FUEL BOWL (CENTER/BOTTOM) 811693
4 FUEL BOWL (UPPER) 811695
4 FUEL BOWL (CENTER/BOTTOM) 811693
5 THROTTLE SHAFT (UPPER/BOTTOM) 811218
6 THROTTLE SHAFT (CENTER) 811219
7 THROTTLE VALVE 811216
7 THROTTLE VALVE 9593
8 FLOAT 9594
9 FLOAT SHAFT NSS
10 INLET NEEDLE VALVE 879194011
11 PLUG 95961
11 PLUG KIT 811694
12 GASKET, PLUG NSS
13 GASKET, COVER PLATE NSS
14 GASKET, FLANGE 814446 1
15 SCREW, THROTTLE VALVE NSS
16 SCREW, COVER PLATE 811220
17 SCREW, FUEL BOWL 808612
18 COVER PLATE 811221
19 MAIN FUEL JET (.052 - 50) 6359
19 MAIN FUEL JET (.068 - 55/60) 6029
19 MAIN FUEL JET (.070 - 60) 6030
20 VENT JET (.090) 6247
21 GASKET NSS
22 SPRING NSS
23 SPRING NSS
24 IDLE NEEDLE NSS
- ENGINE GASKET SET 812867A97
- CARB REPAIR KIT 8236354
- CARB GASKET KIT 811223 1



Quick Overview

JET-.068 1395

SKU : 6029

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061093256
