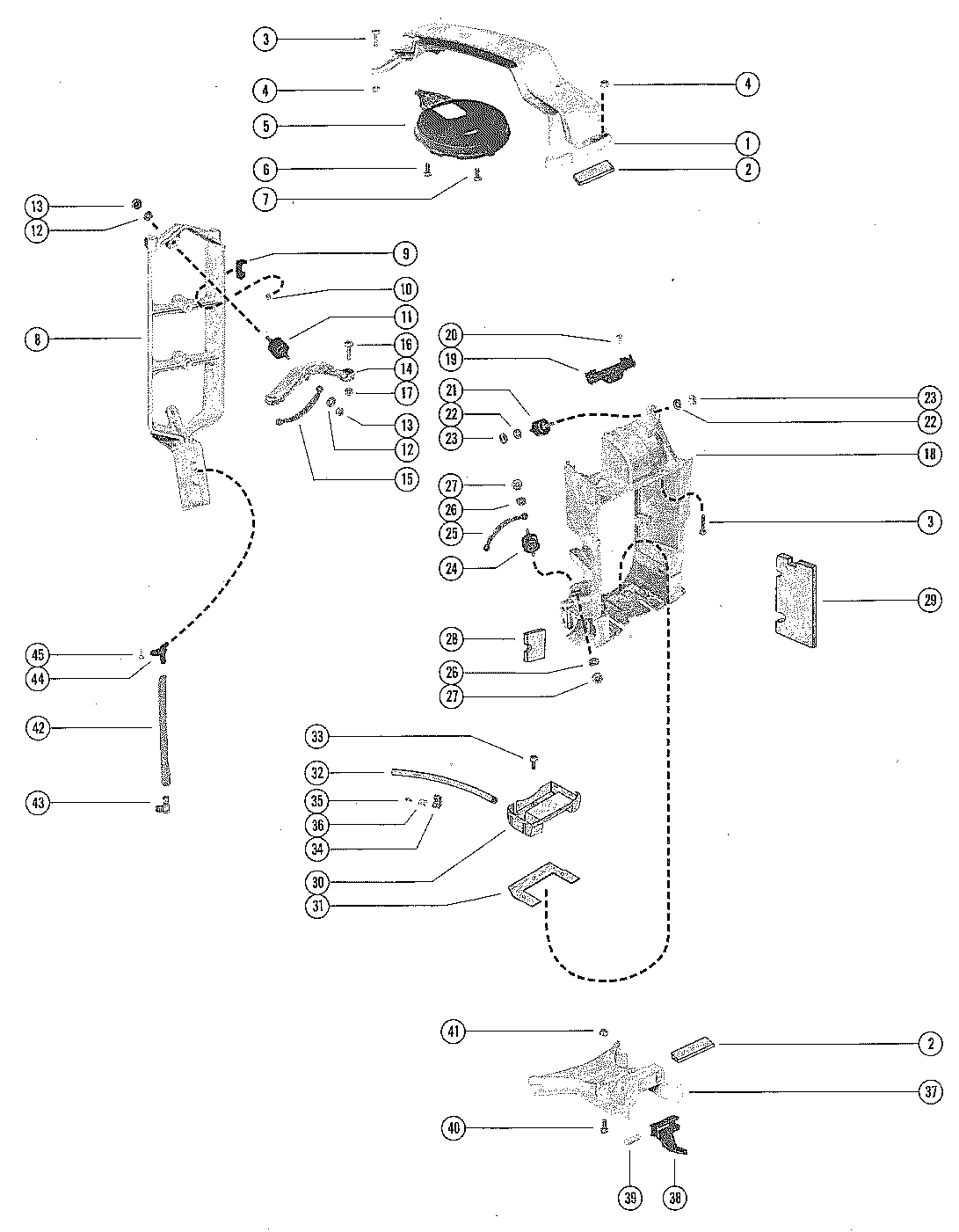

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 3
Product Description : MERCURY 60300 Screw, Top Cowl Bracket Attaching (3/4")
Product Category : 650 (3 CYL.)/ 3293184 THRU 3525440/ Cowl Support Brackets
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | BRACKET, COWL SUPPORT - TOP | 60117 |
2 | SEAL, RUBBER - TOP BRACKET AND COVER MOUNTING PLATE | 62444 |
3 | SCREW, TOP COWL BRACKET ATTACHING (3/4") | 60300 |
4 | NUT, SUPPORT BRACKET ATTACHING SCREW | 20184 |
5 | SHIELD ASSEMBLY, FLYWHEEL | 62501A 1 |
6 | SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8") - REAR | 48409 |
7 | SCREW, SHIELD TO TOP SUPPORT BRACKET (3/8") - FRONT | 62568 |
8 | BRACKET, COWL SUPPORT - REAR | 60112 |
9 | RETAINER, SPARK PLUG LEADS | 60299 |
10 | SCREW, RETAINER TO REAR SUPPORT BRACKET (1/2") | 69079 |
11 | MOUNT, RUBBER - BRACE TO REAR SUPPORT BRACKET | 90435 |
12 | WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET | 69057 |
13 | NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET | 8267089 |
14 | BRACE, REAR COWL SUPPORT BRACKET (TOP) | 60116 |
15 | GROUND STRAP ASS'Y BRACE TO REAR SUPPORT BRACKET | 49651A 1 |
16 | SCREW, SUPPORT BRACKET BRACE TO CYL. BLOCK COVER (1 3/8") | 24644 |
17 | NUT, SUPPORT BRACKET BRACE ATTACHING SCREW | 20184 |
18 | BRACKET, COWL SUPPORT (FRONT) | 64926 |
19 | RETAINER, WIRING HARNESS AND BATTERY CABLE | 61344 |
20 | SCREW, RETAINER TO FRONT SUPPORT BRACKET (1/2") | 35519 |
21 | MOUNT, RUBBER - FRONT SUPPORT BRACKET | 90435 |
22 | WASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET | 69057 |
23 | NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET | 8267089 |
24 | MOUNT, RUBBER - FRONT SUPPORT TO DISTRIBUTOR ADAPTOR | 90435 |
25 | GROUND STRAP ASSEMBLY, FRONT SUPPORT BRACKET | 49651A 1 |
26 | WASHER, RUBBER MOUNT ATTACHING | 69057 |
27 | NUT, RUBBER MOUNT ATTACHING | 8267089 |
28 | SEAL, FUEL CONNECTOR - FRONT SUPPORT BRACKET | 76410 |
29 | BLANKET, SOUND - FRONT SUPPORT BRACKET (PORT) | 62391 |
30 | DRIP TRAY, FRONT SUPPORT BRACKET | 65915A2 |
31 | BLANKET, SOUND - DRIP TRAY TO FRONT SUPPORT BRACKET | 62869 |
32 | HOSE, DRIP TRAY TO REAR SUPPORT BRACKET | 9912688 |
33 | SCREW, DRIP TRAY TO FRONT SUPPORT BRACKET (1/2") | 35519 |
34 | CLP, HOSE TO REAR SUPPORT BRACKET | 22740 |
34 | CLIP, HOSE TO EXHAUST PLATE | 22875 |
35 | SCREW, HOSE CLIP FASTENING (7/16") | 69079 |
35 | SCREW, HOSE CLIP FASTENING (7/16") | 69079 |
36 | "D" WASHER, CLIP FASTENING SCREW | 8M0084613 |
36 | "D" WASHER, CLIP FASTENING SCREW | 8M0084613 |
37 | PLATE, FRONT COVER MOUNTING | 76251A1 |
38 | LATCH, FRONT COVER ATTACHING | 76264 |
39 | SPRING, FRONT COVER LATCH | 60295 |
40 | SCREW, COVER PLATE TO SUPPORT BRACKET (5/8") | 38601 |
41 | NUT, ATTACHING SCREW COVER PLATE | 20184 |
42 | HOSE, TELL TALE - REAR BRACKET TO EXHAUST PLATE | 8M0108355 |
43 | ELBOW, TELL TALE HOSE TO EXHAUST EXTENSION PLATE | 996642 |
44 | NOZZLE, TELL TALE HOSE TO REAR SUPPORT BRACKET | 52889 |
45 | SCREW, NOZZLE TO REAR SUPPORT BRACKET (1/2") | 35519 |
1 | BRACKET, COWL SUPPORT - TOP | 60117 |
2 | SEAL, RUBBER - TOP BRACKET AND COVER MOUNTING PLATE | 62444 |
3 | SCREW, TOP COWL BRACKET ATTACHING (3/4") | 60300 |
4 | NUT, SUPPORT BRACKET ATTACHING SCREW | 20184 |
5 | SHIELD ASSEMBLY, FLYWHEEL | 62501A 1 |
6 | SCREW, SHIELD TO TOP SUPPORT BRACKET (5/8") - REAR | 48409 |
7 | SCREW, SHIELD TO TOP SUPPORT BRACKET (3/8") - FRONT | 62568 |
8 | BRACKET, COWL SUPPORT - REAR | 60112 |
9 | RETAINER, SPARK PLUG LEADS | 60299 |
10 | SCREW, RETAINER TO REAR SUPPORT BRACKET (1/2") | 69079 |
11 | MOUNT, RUBBER - BRACE TO REAR SUPPORT BRACKET | 90435 |
12 | WASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET | 69057 |
13 | NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET | 8267089 |
14 | BRACE, REAR COWL SUPPORT BRACKET (TOP) | 60116 |
15 | GROUND STRAP ASS'Y BRACE TO REAR SUPPORT BRACKET | 49651A 1 |
16 | SCREW, SUPPORT BRACKET BRACE TO CYL. BLOCK COVER (1 3/8") | 24644 |
17 | NUT, SUPPORT BRACKET BRACE ATTACHING SCREW | 20184 |
18 | BRACKET, COWL SUPPORT (FRONT) | 64926 |
19 | RETAINER, WIRING HARNESS AND BATTERY CABLE | 61344 |
20 | SCREW, RETAINER TO FRONT SUPPORT BRACKET (1/2") | 35519 |
21 | MOUNT, RUBBER - FRONT SUPPORT BRACKET | 90435 |
22 | WASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET | 69057 |
23 | NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET | 8267089 |
24 | MOUNT, RUBBER - FRONT SUPPORT TO DISTRIBUTOR ADAPTOR | 90435 |
25 | GROUND STRAP ASSEMBLY, FRONT SUPPORT BRACKET | 49651A 1 |
26 | WASHER, RUBBER MOUNT ATTACHING | 69057 |
27 | NUT, RUBBER MOUNT ATTACHING | 8267089 |
28 | SEAL, FUEL CONNECTOR - FRONT SUPPORT BRACKET | 76410 |
29 | BLANKET, SOUND - FRONT SUPPORT BRACKET (PORT) | 62391 |
30 | DRIP TRAY, FRONT SUPPORT BRACKET | 65915A2 |
31 | BLANKET, SOUND - DRIP TRAY TO FRONT SUPPORT BRACKET | 62869 |
32 | HOSE, DRIP TRAY TO REAR SUPPORT BRACKET | 9912688 |
33 | SCREW, DRIP TRAY TO FRONT SUPPORT BRACKET (1/2") | 35519 |
34 | CLP, HOSE TO REAR SUPPORT BRACKET | 22740 |
34 | CLIP, HOSE TO EXHAUST PLATE | 22875 |
35 | SCREW, HOSE CLIP FASTENING (7/16") | 69079 |
35 | SCREW, HOSE CLIP FASTENING (7/16") | 69079 |
36 | "D" WASHER, CLIP FASTENING SCREW | 8M0084613 |
36 | "D" WASHER, CLIP FASTENING SCREW | 8M0084613 |
37 | PLATE, FRONT COVER MOUNTING | 76251A1 |
38 | LATCH, FRONT COVER ATTACHING | 76264 |
39 | SPRING, FRONT COVER LATCH | 60295 |
40 | SCREW, COVER PLATE TO SUPPORT BRACKET (5/8") | 38601 |
41 | NUT, ATTACHING SCREW COVER PLATE | 20184 |
42 | HOSE, TELL TALE - REAR BRACKET TO EXHAUST PLATE | 8M0108355 |
43 | ELBOW, TELL TALE HOSE TO EXHAUST EXTENSION PLATE | 996642 |
44 | NOZZLE, TELL TALE HOSE TO REAR SUPPORT BRACKET | 52889 |
45 | SCREW, NOZZLE TO REAR SUPPORT BRACKET (1/2") | 35519 |
Schematic Object Key : 35
Product Description : SCREW, (.250-28 x .750)
Title : Mercruiser race Model 420 GM 454 V-8 1987-1989
Category: Gas; Others; 420 GM 454 V-8 1987-1989; 0A398941 THRU 0B622418; Transmission And Tailstock
Quick Overview
SCREW @2 10
SKU : 60300
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061163256
