MERCURY 65830 Nyliner

Write a Review
$5.50
SKU:
65830
Schematic Object Key:
7

MERCURY 65830 Nyliner

$5.50

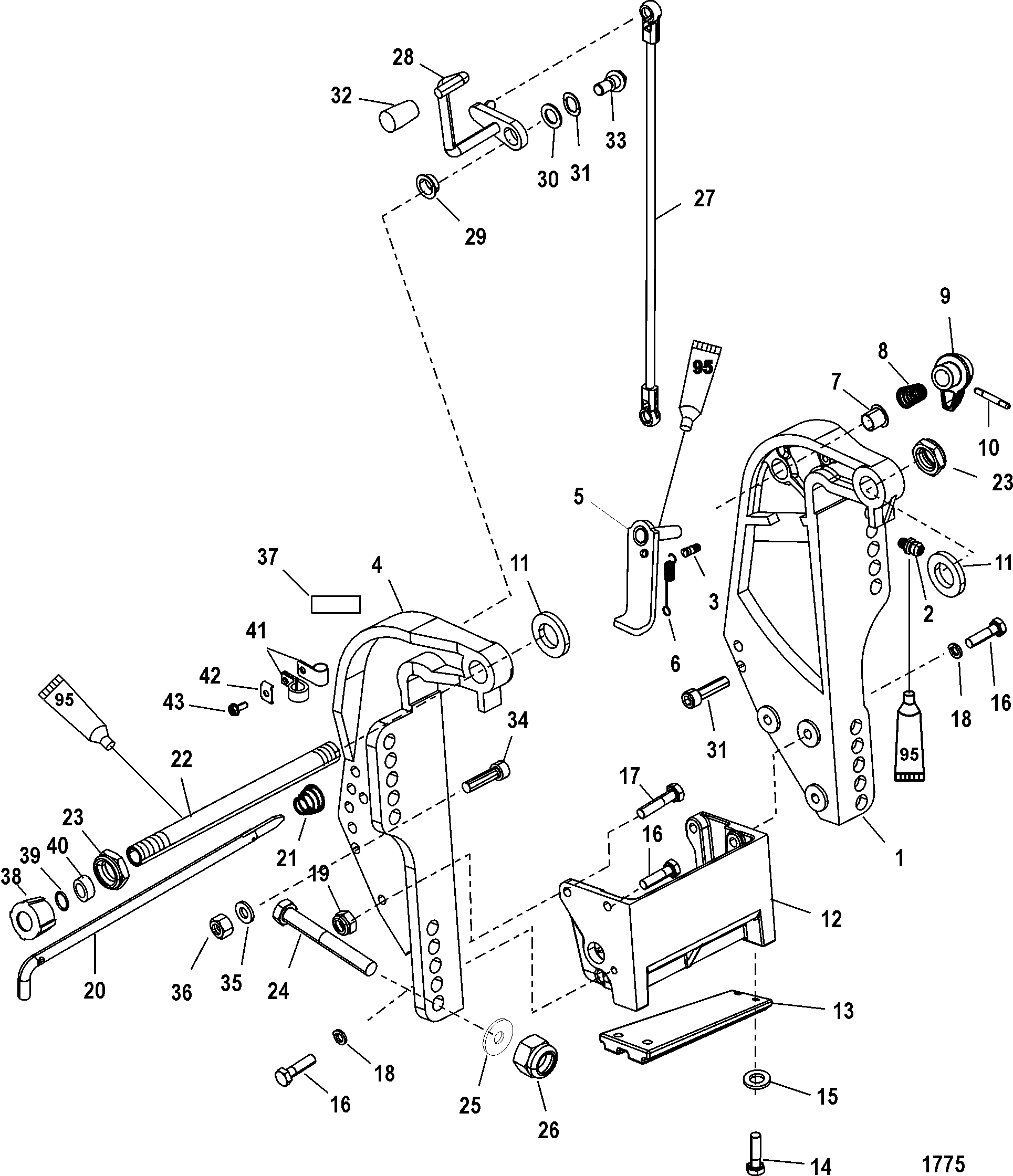

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 65830 Nyliner

Schematic Object Key : 7

Product Description : MERCURY 65830 Nyliner

Product Category : 40 EFI (3 CYL.)(4-STROKE)/ 1B227000 THRU 1B344398/ Transom Bracket

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 BRACKET, Transom - Port 822866T04
2 FITTING, Grease 98727
3 PIN, Groove 99604
4 BRACKET, Transom - Starboard 822865T05
5 LEVER ASSEMBLY, Tilt Lock 893704T01
6 SPRING 99622
7 NYLINER 65830
8 SPRING 812708
9 KNOB 812709
10 PIN, Groove 99615
11 WASHER 19619
12 BRACKET, Anchor 18486F 5
12 BRACKET KIT, Anchor 18486A08
13 ANODE KIT 818298Q 1
14 SCREW, (M6 x 25) 40003 30
15 WASHER, (.281 x .500 x .060) Stainless Steel 29245
16 SCREW, (M8 x 30) 40003 54
16 SCREW, (M8 x 30) 855940 30
17 SCREW, (M8 x 35) 40003 55
17 SCREW, (M8 x 35) 8M0000586
18 LOCKWASHER, (M8) 40025 7
18 WASHER, (.330 x .560 x .060) Stainless Steel 843108
19 NUT, (M8) Stainless Steel 40138 8
20 PIN ASSEMBLY, Tilt Lock (Non Power Trim) 8M0026068
21 SPRING (Non Power Trim) 821461
22 TILT TUBE 8M0041938
23 NUT, (.875-14) 858869
24 SCREW, (.500-20 x 4.00) 814259
25 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel 28421
26 NUT, (.500-20) 826711 17
27 LINK (Non Power Trim) 8M0084737
28 LEVER ASSEMBLY, Tilt (Non Power Trim) 19615A05
29 BUSHING (Non Power Trim) 812707
30 WASHER, (.520 x .850 x .060) Nylon - Black (Non Power Trim) 8M0042643
31 WAVE WASHER (Non Power Trim) 99611
32 TILT KNOB (Non Power Trim) 8M0007469
33 SCREW, (.375-16 x .62) (Non Power Trim) 19611
34 SCREW, (M10 x 40) Stainless Steel 40090 40
35 WASHER 40023 19
36 NUT, (M10) 40140
37 DECAL, Tilt Lock (Non Power Trim) 830253
38 SEAL KIT (Non Handle) 19624A 1
39 O-RING, (.583 x .103) (Non Handle) 29619
40 SPACER (Non Handle) 78861
41 CLIP (Power Trim) 22740
42 C WASHER (Power Trim) 8M0084613
43 SCREW, (#10-16 x .600) (Power Trim) 878609
1 BRACKET, Transom - Port 822866T04
2 FITTING, Grease 98727
3 PIN, Groove 99604
4 BRACKET, Transom - Starboard 822865T05
5 LEVER ASSEMBLY, Tilt Lock 893704T01
6 SPRING 99622
7 NYLINER 65830
8 SPRING 812708
9 KNOB 812709
10 PIN, Groove 99615
11 WASHER 19619
12 BRACKET, Anchor 18486F 5
12 BRACKET KIT, Anchor 18486A08
13 ANODE KIT 818298Q 1
14 SCREW, (M6 x 25) 40003 30
15 WASHER, (.281 x .500 x .060) Stainless Steel 29245
16 SCREW, (M8 x 30) 40003 54
16 SCREW, (M8 x 30) 855940 30
17 SCREW, (M8 x 35) 40003 55
17 SCREW, (M8 x 35) 8M0000586
18 LOCKWASHER, (M8) 40025 7
18 WASHER, (.330 x .560 x .060) Stainless Steel 843108
19 NUT, (M8) Stainless Steel 40138 8
20 PIN ASSEMBLY, Tilt Lock (Non Power Trim) 8M0026068
21 SPRING (Non Power Trim) 821461
22 TILT TUBE 8M0041938
23 NUT, (.875-14) 858869
24 SCREW, (.500-20 x 4.00) 814259
25 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel 28421
26 NUT, (.500-20) 826711 17
27 LINK (Non Power Trim) 8M0084737
28 LEVER ASSEMBLY, Tilt (Non Power Trim) 19615A05
29 BUSHING (Non Power Trim) 812707
30 WASHER, (.520 x .850 x .060) Nylon - Black (Non Power Trim) 8M0042643
31 WAVE WASHER (Non Power Trim) 99611
32 TILT KNOB (Non Power Trim) 8M0007469
33 SCREW, (.375-16 x .62) (Non Power Trim) 19611
34 SCREW, (M10 x 40) Stainless Steel 40090 40
35 WASHER 40023 19
36 NUT, (M10) 40140
37 DECAL, Tilt Lock (Non Power Trim) 830253
38 SEAL KIT (Non Handle) 19624A 1
39 O-RING, (.583 x .103) (Non Handle) 29619
40 SPACER (Non Handle) 78861
41 CLIP (Power Trim) 22740
42 C WASHER (Power Trim) 8M0084613
43 SCREW, (#10-16 x .600) (Power Trim) 878609



Quick Overview

NYLINER 23

SKU : 65830

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061167902
