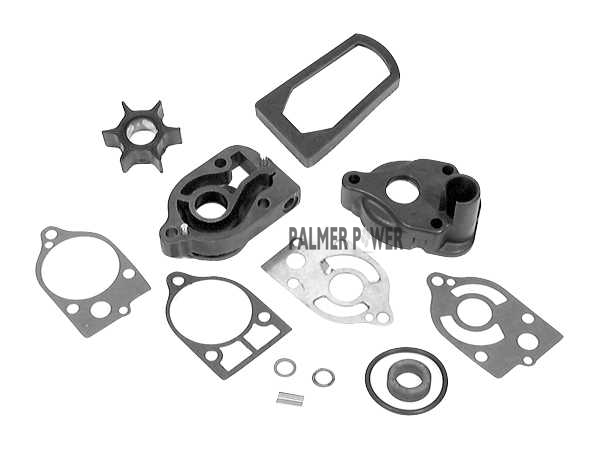

MERCURY 73640A2 Water Pump Kit

Write a Review
$99.92
SKU:
73640A2
Schematic Object Key:
-

MERCURY 73640A2 Water Pump Kit

$99.92

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 73640A2 Water Pump Kit

Schematic Object Key : -

Product Description : MERCURY 73640A2 Water Pump Kit

Product Category : 500, 50/ 4357640 THRU 5531629/Gear Housing Assembly, Complete (Serial Group No.; Alpha_Brands/SHOP BY BRANDS/Mercury

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, COMPLETE 6038A 5
- GEAR HOUSING ASSEMBLY, COMPLETE 6038A 7
- GEAR HOUSING ASSEMBLY, COMPLETE 6038A17
- GEAR HOUSING ASSEMBLY, COMPLETE 6038A18
1 GEAR HOUSING ASSEMBLY 6038A 6
2 PIN, DOWEL - GEAR HOUSING 8M0084726
3 STUD 33778
4 STUD 8M0034453
5 BEARING, ROLLER - DRIVE SHAFT 62091T
6 SCREEN, WATER INTAKE - STARBOARD 63850
6 SCREEN, WATER INTAKE - PORT 72849A1
7 SCREW 36070
8 NUT, WATER INTAKE SCREEN SCREW 859124
9 PLATE, SUPPORT - EXHAUST TUBE SEAL 92815
10 SEAL, EXHAUST TUBE 37721001
11 GEAR, PINION - DRIVE SHAFT 55607
12 NUT, PINION GEAR TO DRIVE SHAFT 55910
13 GASKET, WATER PUMP BASE TO GEAR HOUSING 32771
14 "O" RING, WATER PUMP BASE 26855
15 WATER PUMP BASE ASSEMBLY 73640T01
16 OIL SEAL, WATER PUMP BASE 79831
17 OIL SEAL, WATER PUMP BASE 90562
18 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY 35973
19 GASKET 19553
20 PLATE FACE 32768
21 GASKET UPPER 19551
22 IMPELLER, WATER PUMP 89983T
23 KEY, IMPELLER DRIVE 8M0032837
24 WATER PUMP BODY ASSEMBLY 77822A1
25 INSERT, WATER PUMP BODY 48753
26 WASHER, WATER PUMP BODY AND BASE STUDS 29245
27 NUT, WATER PUMP BODY AND BASE STUDS 36069
28 SEAL, WATER PUMP BODY TO WATER TUBE 38452
29 WASHER, CUPPED - WATER TUBE SEAL 38453
30 RING, RUBBER - CENTRIFUGAL SLINGER 20273
31 SCREW, GREASE FILLER AND VENT HOLE 79953Q04
32 WASHER, GREASE FILLER AND VENT HOLE SCREW 191833
35 SHAFT ASSEMBLY, SHIFT - LOWER 69787A 1
35 SHAFT ASSEMBLY, SHIFT - LOWER 76063A 1
36 CLIP, RETAINING - SHIFT SHAFT 29641
37 "O" RING, SHIFT SHAFT BUSHING 25439
38 BUSHING ASSEMBLY, SHIFT SHAFT 77631A2
39 OIL SEAL, SHIFT SHAFT BUSING (LOWER) 24590
40 OIL SEAL, SHIFT SHAFT (UPPER) 892361
41 WASHER, RUBBER - SHIFT SHAFT BUSHING 31266
42 BASE 78036
43 CAM, REVERSE LOCKING 69542
43 CAM, REVERSE LOCKING 43308T1
44 DRIVE SHAFT ASSEMBLY (SHORT SHAFT) 76089A2
44 DRIVE SHAFT ASSEMBLY (LONG SHAFT) 76088A2
44 DRIVE SHAFT ASSEMBLY (SHORT SHAFT) 76089A2
44 DRIVE SHAFT ASSEMBLY (LONG SHAFT) 76088A2
45 SPRING, COMPRESSION - DRIVE SHAFT 20254
46 PIN, DRIVE SHAFT 30515
47 SLEEVE, LUBRICTAION - DRIVE SHAFT 88181
48 SHIM, BEARING TI GEAR HOUSING (.OO2-3-5-10) 20929A 1
49 ROLLER BEARING ASSEMBLY 38146A 1
- WATER PUMP KIT 73640A2
- SEAL KIT 79831A1
- GASKET SET 72486A32
- GEAR HOUSING ASSEMBLY, COMPLETE 6038A 5
- GEAR HOUSING ASSEMBLY, COMPLETE 6038A 7
- GEAR HOUSING ASSEMBLY, COMPLETE 6038A17
- GEAR HOUSING ASSEMBLY, COMPLETE 6038A18
1 GEAR HOUSING ASSEMBLY 6038A 6
2 PIN, DOWEL - GEAR HOUSING 8M0084726
3 STUD 33778
4 STUD 8M0034453
5 BEARING, ROLLER - DRIVE SHAFT 62091T
6 SCREEN, WATER INTAKE - STARBOARD 63850
6 SCREEN, WATER INTAKE - PORT 72849A1
7 SCREW 36070
8 NUT, WATER INTAKE SCREEN SCREW 859124
9 PLATE, SUPPORT - EXHAUST TUBE SEAL 92815
10 SEAL, EXHAUST TUBE 37721001
11 GEAR, PINION - DRIVE SHAFT 55607
12 NUT, PINION GEAR TO DRIVE SHAFT 55910
13 GASKET, WATER PUMP BASE TO GEAR HOUSING 32771
14 "O" RING, WATER PUMP BASE 26855
15 WATER PUMP BASE ASSEMBLY 73640T01
16 OIL SEAL, WATER PUMP BASE 79831
17 OIL SEAL, WATER PUMP BASE 90562
18 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY 35973
19 GASKET 19553
20 PLATE FACE 32768
21 GASKET UPPER 19551
22 IMPELLER, WATER PUMP 89983T
23 KEY, IMPELLER DRIVE 8M0032837
24 WATER PUMP BODY ASSEMBLY 77822A1
25 INSERT, WATER PUMP BODY 48753
26 WASHER, WATER PUMP BODY AND BASE STUDS 29245
27 NUT, WATER PUMP BODY AND BASE STUDS 36069
28 SEAL, WATER PUMP BODY TO WATER TUBE 38452
29 WASHER, CUPPED - WATER TUBE SEAL 38453
30 RING, RUBBER - CENTRIFUGAL SLINGER 20273
31 SCREW, GREASE FILLER AND VENT HOLE 79953Q04
32 WASHER, GREASE FILLER AND VENT HOLE SCREW 191833
35 SHAFT ASSEMBLY, SHIFT - LOWER 69787A 1
35 SHAFT ASSEMBLY, SHIFT - LOWER 76063A 1
36 CLIP, RETAINING - SHIFT SHAFT 29641
37 "O" RING, SHIFT SHAFT BUSHING 25439
38 BUSHING ASSEMBLY, SHIFT SHAFT 77631A2
39 OIL SEAL, SHIFT SHAFT BUSING (LOWER) 24590
40 OIL SEAL, SHIFT SHAFT (UPPER) 892361
41 WASHER, RUBBER - SHIFT SHAFT BUSHING 31266
42 BASE 78036
43 CAM, REVERSE LOCKING 69542
43 CAM, REVERSE LOCKING 43308T1
44 DRIVE SHAFT ASSEMBLY (SHORT SHAFT) 76089A2
44 DRIVE SHAFT ASSEMBLY (LONG SHAFT) 76088A2
44 DRIVE SHAFT ASSEMBLY (SHORT SHAFT) 76089A2
44 DRIVE SHAFT ASSEMBLY (LONG SHAFT) 76088A2
45 SPRING, COMPRESSION - DRIVE SHAFT 20254
46 PIN, DRIVE SHAFT 30515
47 SLEEVE, LUBRICTAION - DRIVE SHAFT 88181
48 SHIM, BEARING TI GEAR HOUSING (.OO2-3-5-10) 20929A 1
49 ROLLER BEARING ASSEMBLY 38146A 1
- WATER PUMP KIT 73640A2
- SEAL KIT 79831A1
- GASKET SET 72486A32



Quick Overview

PUMP KIT-WATER 46

SKU : 73640A2

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061174986
