Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 15

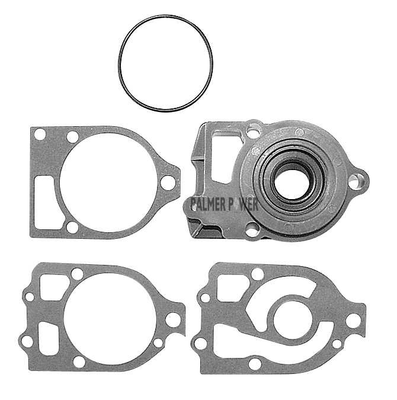

Product Description : MERCURY 73640T01 Water Pump Base Assembly
Product Category : 402/ 7047608 THRU 7112422/ Gear Housing Assembly, Complete (Page 1); Alpha_Brands/SHOP BY BRANDS/Mercury
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT) | 6038A17 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) | 6038A18 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) | 6038A5 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) | 6038A7 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) | 6038A 5 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) | 6038A 7 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) | 6038A17 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) | 6038A18 |
1 | GEAR HOUSING ASSEMBLY | 6038A6 |
1 | GEAR ASSEMBLY | 6038A 6 |
2 | PIN, DOWEL-GEAR HOUSING | 8M0084726 |
3 | STUD, WATER PUMP BODY/BASE TO GEAR HSG (2 5/8") | 33778 |
4 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING | 8M0034453 |
5 | BEARING, ROLLER-DRIVE SHAFT | 62091T |
6 | SCREEN, WATER INTAKE-STARBOARD | 63850 |
6 | SCREEN, WATER INTAKE-PORT | 72849A1 |
7 | SCREW,WATER INTAKE SCREEN TO GEAR HOUSING | 36070 |
8 | NUT,WATER INTAKE SCREEN SCREW | 859124 |
9 | PLATE, SUPPORT- EXHAUST TUBE | 92815 |
10 | SEAL, EXHAUST TUBE | 37721001 |
11 | GEAR, PINION-DRIVE SHAFT | 55607 |
12 | NUT, PINION GEAR TO DRIVE SHAFT | 55910 |
13 | GASKET, WATER PUMP BASE TO GEAR HOUSING | 32771 |
14 | "O" RING, WATER PUMP BASE | 26855 |
15 | WATER PUMP BASE ASSEMBLY | 77516A1 |
15 | WATER PUMP BASE ASSEMBLY | 73640T01 |
16 | OIL SEAL, WATER PUMP BASE | 79831 |
17 | OIL SEAL, WATER PUMP BASE | 90562 |
18 | DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY | 35973 |
19 | GASKET,LOWER-WATER PUMP BASE TO FACE PLATE | 19553 |
20 | PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY | 32768 |
21 | GASKET,UPPER-FACE PLATE TO WATER PUMP BODY | 19551 |
22 | IMPELLER, WATER PUMP | 89983T |
23 | KEY,IMPELLER DRIVE | 8M0032837 |
24 | WATER PUMP BODY ASSEMBLY | 77822A1 |
25 | INSERT,WATER PUMP BODY | 48753 |
27 | WASHER, WATER PUMP BODY AND BASE STUDS | 29245 |
28 | NUT, WATER PUMP BODY AND BASE STUDS | 36069 |
29 | SEAL, RUBBER-WATER INLET TUBE(WATER PUMP BODY) | 38452 |
30 | WASHER, NYLON-WATER PUMP BODY | 38453 |
31 | RING, RUBBER-CENTRIFUGAL SLINGER(DRIVE SHAFT) | 20273 |
32 | SCREW, GREASE FILLER AND VENT HOLE | 79953Q04 |
33 | WASHER, GREASE FILLER AND VENT HOLE SCREW | 191833 |
34 | PLUG, GEAR HOUSING FLUSHING HOLE | 48750 |
35 | WASHER, GEAR HOUSING FLUSHING HOLE | 49221 |
36 | SHAFT ASSEMBLY, SHIFT-LOWER | 76063A1 |
36 | SHAFT ASSEMBLY, SHIFT-LOWER | 69787A 1 |
36 | SHAFT ASSEMBLY, SHIFT-LOWER | 76063A 1 |
37 | CLIP, RETAINING-SHIFT SHAFT | 29641 |
38 | "O" RING, SHIFT SHAFT BUSHING | 25439 |
39 | BUSHING ASSEMBLY, SHIFT SHAFT | 77631A2 |
40 | OIL SEAL, SHIFT SHAFT BUSHING(UPPER) | 24590 |
41 | OIL SEAL, SHIFT SHAFT BUSHING(LOWER) | 892361 |
42 | WASHER, RUBBER-SHIFT SHAFT BUSHING | 31266 |
43 | CAM, REVERSE LOCKING- AND | 43308T1 |
43 | CAM, REVERSE LOCKING | 69542 |
44 | BASE, REVERSE LOCKING | 78036 |
45 | DRIVE SHAFT ASSEMBLY(SHORT SHAFT) | 76089A2 |
45 | DRIVE SHAFT ASSEMBLY(LONG SHAFT) | 76088A2 |
45 | DRIVE SHAFT ASSEMBLY (SHORT SHAFT) | 76089A2 |
45 | DRIVE SHAFT ASSEMBLY(LONG SHAFT) | 76088A2 |
46 | SPRING, COMPRESSION- DRIVE SHAFT | 20254 |
47 | PIN, DRIVE SHAFT | 30545 |
48 | SLEEVE, LUBRICATION-DRIVE SHAFT | 88181 |
49 | SHIM, BEARING TO GEAR HOUSING(.002-3-5-10) | 20929A 1 |
50 | ROLLER BEARING ASSEMBLY,TAPERED-DRIVE SHAFT | 38146A 1 |
- | GEAR HOUSING ASSEMBLY,COMPLETE(SHORT SHAFT) | 6038A17 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) | 6038A18 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) | 6038A5 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) | 6038A7 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) | 6038A 5 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) | 6038A 7 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(SHORT SHAFT) | 6038A17 |
- | GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT) | 6038A18 |
1 | GEAR HOUSING ASSEMBLY | 6038A6 |
1 | GEAR ASSEMBLY | 6038A 6 |
2 | PIN, DOWEL-GEAR HOUSING | 8M0084726 |
3 | STUD, WATER PUMP BODY/BASE TO GEAR HSG (2 5/8") | 33778 |
4 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING | 8M0034453 |
5 | BEARING, ROLLER-DRIVE SHAFT | 62091T |
6 | SCREEN, WATER INTAKE-STARBOARD | 63850 |
6 | SCREEN, WATER INTAKE-PORT | 72849A1 |
7 | SCREW,WATER INTAKE SCREEN TO GEAR HOUSING | 36070 |
8 | NUT,WATER INTAKE SCREEN SCREW | 859124 |
9 | PLATE, SUPPORT- EXHAUST TUBE | 92815 |
10 | SEAL, EXHAUST TUBE | 37721001 |
11 | GEAR, PINION-DRIVE SHAFT | 55607 |
12 | NUT, PINION GEAR TO DRIVE SHAFT | 55910 |
13 | GASKET, WATER PUMP BASE TO GEAR HOUSING | 32771 |
14 | "O" RING, WATER PUMP BASE | 26855 |
15 | WATER PUMP BASE ASSEMBLY | 77516A1 |
15 | WATER PUMP BASE ASSEMBLY | 73640T01 |
16 | OIL SEAL, WATER PUMP BASE | 79831 |
17 | OIL SEAL, WATER PUMP BASE | 90562 |
18 | DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY | 35973 |
19 | GASKET,LOWER-WATER PUMP BASE TO FACE PLATE | 19553 |
20 | PLATE, FACE-WATER PUMP BASE TO WATER PUMP BODY | 32768 |
21 | GASKET,UPPER-FACE PLATE TO WATER PUMP BODY | 19551 |
22 | IMPELLER, WATER PUMP | 89983T |
23 | KEY,IMPELLER DRIVE | 8M0032837 |
24 | WATER PUMP BODY ASSEMBLY | 77822A1 |
25 | INSERT,WATER PUMP BODY | 48753 |
27 | WASHER, WATER PUMP BODY AND BASE STUDS | 29245 |
28 | NUT, WATER PUMP BODY AND BASE STUDS | 36069 |
29 | SEAL, RUBBER-WATER INLET TUBE(WATER PUMP BODY) | 38452 |
30 | WASHER, NYLON-WATER PUMP BODY | 38453 |
31 | RING, RUBBER-CENTRIFUGAL SLINGER(DRIVE SHAFT) | 20273 |
32 | SCREW, GREASE FILLER AND VENT HOLE | 79953Q04 |
33 | WASHER, GREASE FILLER AND VENT HOLE SCREW | 191833 |
34 | PLUG, GEAR HOUSING FLUSHING HOLE | 48750 |
35 | WASHER, GEAR HOUSING FLUSHING HOLE | 49221 |
36 | SHAFT ASSEMBLY, SHIFT-LOWER | 76063A1 |
36 | SHAFT ASSEMBLY, SHIFT-LOWER | 69787A 1 |
36 | SHAFT ASSEMBLY, SHIFT-LOWER | 76063A 1 |
37 | CLIP, RETAINING-SHIFT SHAFT | 29641 |
38 | "O" RING, SHIFT SHAFT BUSHING | 25439 |
39 | BUSHING ASSEMBLY, SHIFT SHAFT | 77631A2 |
40 | OIL SEAL, SHIFT SHAFT BUSHING(UPPER) | 24590 |
41 | OIL SEAL, SHIFT SHAFT BUSHING(LOWER) | 892361 |
42 | WASHER, RUBBER-SHIFT SHAFT BUSHING | 31266 |
43 | CAM, REVERSE LOCKING- AND | 43308T1 |
43 | CAM, REVERSE LOCKING | 69542 |
44 | BASE, REVERSE LOCKING | 78036 |
45 | DRIVE SHAFT ASSEMBLY(SHORT SHAFT) | 76089A2 |
45 | DRIVE SHAFT ASSEMBLY(LONG SHAFT) | 76088A2 |
45 | DRIVE SHAFT ASSEMBLY (SHORT SHAFT) | 76089A2 |
45 | DRIVE SHAFT ASSEMBLY(LONG SHAFT) | 76088A2 |
46 | SPRING, COMPRESSION- DRIVE SHAFT | 20254 |
47 | PIN, DRIVE SHAFT | 30545 |
48 | SLEEVE, LUBRICATION-DRIVE SHAFT | 88181 |
49 | SHIM, BEARING TO GEAR HOUSING(.002-3-5-10) | 20929A 1 |
50 | ROLLER BEARING ASSEMBLY,TAPERED-DRIVE SHAFT | 38146A 1 |
Quick Overview
BASE ASY-WTR PMP 46
SKU : 73640T01
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061726307
