Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : -

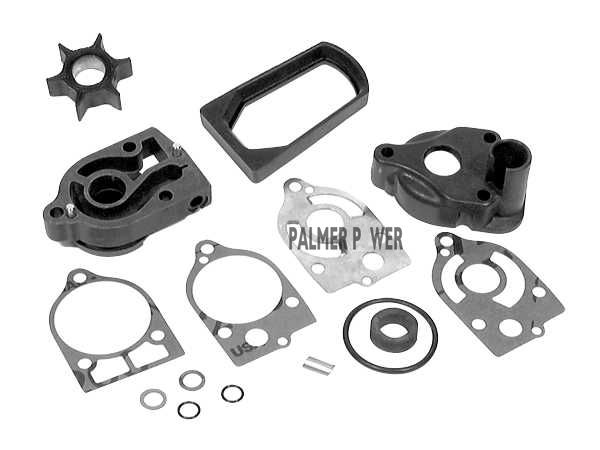

Product Description : MERCURY 77177A 3 Water Pump Kit
Product Category : 50 (3 CYL.)/ 0A721308 & Up/ Gear Housing(Driveshaft); Others/Instock; Alpha_Brands/SHOP BY BRANDS/Mercury
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK) | 9539A 2 |
- | GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK) | 9539A 3 |
- | GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY) | 9539A 9 |
1 | GEAR HOUSING ASSEMBLY (BLACK-BASIC) | 9539T1 |
1 | GEAR HOUSING ASSEMBLY (GRAY-BASIC) | 9539T8 |
2 | CONNECTOR ASSEMBLY, SPEEDOMETER | 85822A10 |
3 | PIN, Dowel (.187 x .530), GEAR HOUSING | 8M0084726 |
4 | STUD, WATER PUMP (2-5/8") | 33778 |
5 | STUD, (.437-14/.437-20 x 2.190), GEAR HOUSING | 8M0034453 |
6 | BEARING, Roller, DRIVESHAFT | 62091T |
7 | SCREEN ASSEMBLY, WATER INTAKE-STARBOARD AND PORT | 72849A 1 |
8 | SCREW, (#10-32 x 1.250), WATER INTAKE SCREEN | 36070 |
9 | NUT, (#10-32) Stainless Steel, WATER INTAKE SCREEN SCREW | 859124 |
10 | PLATE, SUPPORT-EXHAUST TUBE | 92815 |
11 | SEAL, EXHAUST TUBE | 37721001 |
12 | GEAR, Pinion | 88019T |
13 | NUT, (.437-20), PINION GEAR TO DRIVESHAFT | 55910 |
14 | GASKET, WATER PUMP | 19552 |
15 | O-RING, WATER PUMP BASE | 26722 |
16 | BASE ASSEMBLY, Water Pump | 77177A 1 |
17 | SEAL, Oil, WATER PUMP BASE | 79831 |
18 | SEAL, (1.254 x .312), WATER PUMP BASE | 90562 |
19 | PIN, Dowel, WATER PUMP BASE | 35973 |
20 | GASKET, LOWER-WATER PUMP | 19553 |
21 | FACE PLATE, WATER PUMP | 32768 |
22 | GASKET, UPPER-WATER PUMP | 19551 |
23 | IMPELLER, WATER PUMP | 89983T |
24 | KEY, IMPELLER DRIVE | 8M0032837 |
25 | BODY ASSEMBLY, Water Pump | 77822A 1 |
26 | INSERT, WATER PUMP BODY | 48753 |
27 | SEAL, RUBBER-WATER PUMP | 38452 |
28 | WASHER, NYLON-WATER PUMP | 38453 |
29 | WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUDS | 29245 |
30 | NUT, (.250-28), WATER PUMP STUDS | 8267119 |
31 | O-RING, RUBBER (DRIVE SHAFT) | 20273 |
32 | SEAT ASSEMBLY | 78654A 1 |
33 | SEAL, SPLINED | 86304 |
34 | SCREW, (.375-16 x .250), GREASE FILLER | 79953Q04 |
35 | SCREW, Magnetic, DRAIN | 8M0058389 |
36 | WASHER, Fiber, GREASE FILLER AND DRAIN SCREW | 191833 |
37 | SLEEVE, LUBRICATION | 88181 |
38 | SHIM SET, ROLLER BEARING (.002-3-5-10-20) | 92881A 1 |
39 | BEARING ASSEMBLY, Roller, TAPERED | 77420A 1 |
40 | DRIVESHAFT ASSEMLBY (SHORT SHAFT) | 98179 |
40 | DRIVESHAFT ASSEMBLY ( LONG SHAFT) | 98180 |
41 | SPRING, COMPRESSION-DRIVESHAFT | 20254 |
42 | PIN, DRIVESHAFT | 30545 |
43 | SHAFT ASSEMBLY, SHIFT-LOWER | 76063A 1 |
44 | E RING, RETAINING-SHIFT SHAFT | 29641 |
45 | O-RING, (.862 x .103), SHIFT SHAFT BUSHING | 25439 |
46 | BUSHING ASSEMBLY, SHIFT SHAFT | 77631A 2 |
47 | SEAL, Oil, SHIFT SHAFT BUSHING | 8164641 |
48 | WASHER, RUBBER-SHAFT BUSHING | 77674 |
49 | BASE, REVERSE LOCKING | 78036 |
50 | CAM, REVERSE LOCKING | 43308T1 |
- | WATER PUMP KIT | 77177A 3 |
- | SEAL KIT | 79831A 1 |
- | GASKET SET | 43779A87 |
- | GUIDE | 933361 |
- | GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK) | 9539A 2 |
- | GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK) | 9539A 3 |
- | GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY) | 9539A 9 |
1 | GEAR HOUSING ASSEMBLY (BLACK-BASIC) | 9539T1 |
1 | GEAR HOUSING ASSEMBLY (GRAY-BASIC) | 9539T8 |
2 | CONNECTOR ASSEMBLY, SPEEDOMETER | 85822A10 |
3 | PIN, Dowel (.187 x .530), GEAR HOUSING | 8M0084726 |
4 | STUD, WATER PUMP (2-5/8") | 33778 |
5 | STUD, (.437-14/.437-20 x 2.190), GEAR HOUSING | 8M0034453 |
6 | BEARING, Roller, DRIVESHAFT | 62091T |
7 | SCREEN ASSEMBLY, WATER INTAKE-STARBOARD AND PORT | 72849A 1 |
8 | SCREW, (#10-32 x 1.250), WATER INTAKE SCREEN | 36070 |
9 | NUT, (#10-32) Stainless Steel, WATER INTAKE SCREEN SCREW | 859124 |
10 | PLATE, SUPPORT-EXHAUST TUBE | 92815 |
11 | SEAL, EXHAUST TUBE | 37721001 |
12 | GEAR, Pinion | 88019T |
13 | NUT, (.437-20), PINION GEAR TO DRIVESHAFT | 55910 |
14 | GASKET, WATER PUMP | 19552 |
15 | O-RING, WATER PUMP BASE | 26722 |
16 | BASE ASSEMBLY, Water Pump | 77177A 1 |
17 | SEAL, Oil, WATER PUMP BASE | 79831 |
18 | SEAL, (1.254 x .312), WATER PUMP BASE | 90562 |
19 | PIN, Dowel, WATER PUMP BASE | 35973 |
20 | GASKET, LOWER-WATER PUMP | 19553 |
21 | FACE PLATE, WATER PUMP | 32768 |
22 | GASKET, UPPER-WATER PUMP | 19551 |
23 | IMPELLER, WATER PUMP | 89983T |
24 | KEY, IMPELLER DRIVE | 8M0032837 |
25 | BODY ASSEMBLY, Water Pump | 77822A 1 |
26 | INSERT, WATER PUMP BODY | 48753 |
27 | SEAL, RUBBER-WATER PUMP | 38452 |
28 | WASHER, NYLON-WATER PUMP | 38453 |
29 | WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP STUDS | 29245 |
30 | NUT, (.250-28), WATER PUMP STUDS | 8267119 |
31 | O-RING, RUBBER (DRIVE SHAFT) | 20273 |
32 | SEAT ASSEMBLY | 78654A 1 |
33 | SEAL, SPLINED | 86304 |
34 | SCREW, (.375-16 x .250), GREASE FILLER | 79953Q04 |
35 | SCREW, Magnetic, DRAIN | 8M0058389 |
36 | WASHER, Fiber, GREASE FILLER AND DRAIN SCREW | 191833 |
37 | SLEEVE, LUBRICATION | 88181 |
38 | SHIM SET, ROLLER BEARING (.002-3-5-10-20) | 92881A 1 |
39 | BEARING ASSEMBLY, Roller, TAPERED | 77420A 1 |
40 | DRIVESHAFT ASSEMLBY (SHORT SHAFT) | 98179 |
40 | DRIVESHAFT ASSEMBLY ( LONG SHAFT) | 98180 |
41 | SPRING, COMPRESSION-DRIVESHAFT | 20254 |
42 | PIN, DRIVESHAFT | 30545 |
43 | SHAFT ASSEMBLY, SHIFT-LOWER | 76063A 1 |
44 | E RING, RETAINING-SHIFT SHAFT | 29641 |
45 | O-RING, (.862 x .103), SHIFT SHAFT BUSHING | 25439 |
46 | BUSHING ASSEMBLY, SHIFT SHAFT | 77631A 2 |
47 | SEAL, Oil, SHIFT SHAFT BUSHING | 8164641 |
48 | WASHER, RUBBER-SHAFT BUSHING | 77674 |
49 | BASE, REVERSE LOCKING | 78036 |
50 | CAM, REVERSE LOCKING | 43308T1 |
- | WATER PUMP KIT | 77177A 3 |
- | SEAL KIT | 79831A 1 |
- | GASKET SET | 43779A87 |
- | GUIDE | 933361 |
Quick Overview
PUMP KIT-WATER Q=T 46
SKU : 77177A3
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
