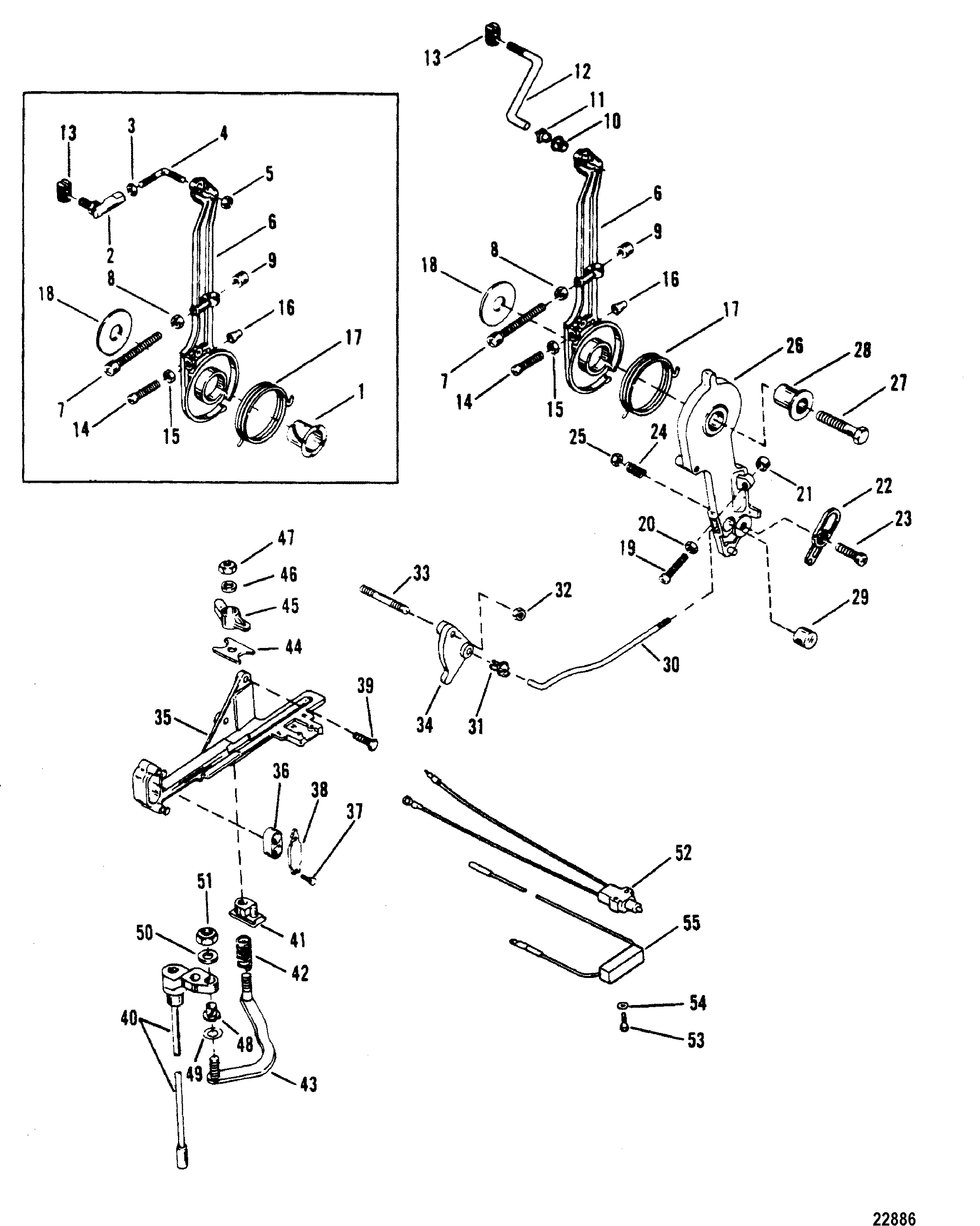

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 53
Product Description : MERCURY 77478 Screw, (#6-32 X .875)
Product Category : V-150/ 0D082000 THRU 0G303045/ Throttle Lever And Shift Shaft
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | BUSHING | 55171 |
2 | BALL JOINT ASSEMBLY | 62459T |
3 | NUT, (#10-32) Brass | 45076 |
4 | ROD | 76035 |
5 | NUT, (#10-32) | 46438 |
6 | LEVER ASSEMBLY (DESIGN I) | 41094A 3 |
6 | LEVER, Spark Advance (DESIGN II) | 823705A 1 |
7 | SCREW, (.250-20 x 2.125) | 64022 |
8 | NUT, (.250-20) | 64015 |
9 | CAP, Nylon | 26852 |
10 | SWIVEL BASE | 93254 |
11 | SWIVEL BALL | 93421 |
12 | LINK | 823706 |
13 | PIVOT | 74897T |
14 | SCREW, (.190-32 x 1.250) | 13627 |
15 | NUT, (#10-32) Stainless Steel | 68219 |
16 | CAP | 48039 |
17 | SPRING | 823235 |
18 | WASHER, (.390 x 1.50 x .120) | 46765 |
19 | SCREW, (.250-20 x 2.125) | 64022 |
20 | NUT, (.250-20) | 64015 |
21 | CAP, Nylon | 26852 |
22 | LATCH | 39483 |
23 | SCREW, (.250-28 x .880) | 69026 |
24 | SPRING | 20099 |
25 | NUT, (.250-28) | 826709109 |
26 | LEVER | 410952 |
27 | SCREW, (.375-16 x 1.75) | 818165 |
28 | BUSHING | 55164 |
29 | BARREL | 14638 |
30 | ROD | 814929 |
31 | BUSHING | 93248 1 |
32 | NUT, (.250-28) | 826709109 |
33 | STUD, (.250-28 x 1.750) | 20353 |
34 | CAM, Throttle | 815539T |
35 | BRACKET ASSEMBLY | 814283A 2 |
36 | CUP | 39519 |
37 | DRIVE SCREW | 42975 |
38 | LATCH | 98889 |
39 | SCREW, (.312-18 x .880) | 53167T |
40 | SHIFT SHAFT ASSEMBLY (LONG) | 79932A16 |
40 | SHIFT SHAFT ASSEMBLY (X-LONG) | 79932A17 |
41 | GUIDE BLOCK | 814284 |
42 | SPRING | 20099 |
43 | LINK ROD ASSEMBLY | 67073A 1 |
44 | WEAR PLATE | 52100 |
45 | LATCH | 8M0036768 |
46 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 35462 |
47 | NUT, (.250-28) | 826709109 |
48 | BUSHING | 26600 |
49 | WAVE WASHER | 29720 |
50 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 35462 |
51 | NUT, (.250-28) | 826709109 |
52 | IDLE STABILIZING SHIFT KIT | 814281A 1 |
53 | SCREW, (#6-32 x .875) | 77478 |
54 | WASHER | 27882 |
55 | RESISTOR MODULE | 17461A 3 |
1 | BUSHING | 55171 |
2 | BALL JOINT ASSEMBLY | 62459T |
3 | NUT, (#10-32) Brass | 45076 |
4 | ROD | 76035 |
5 | NUT, (#10-32) | 46438 |
6 | LEVER ASSEMBLY (DESIGN I) | 41094A 3 |
6 | LEVER, Spark Advance (DESIGN II) | 823705A 1 |
7 | SCREW, (.250-20 x 2.125) | 64022 |
8 | NUT, (.250-20) | 64015 |
9 | CAP, Nylon | 26852 |
10 | SWIVEL BASE | 93254 |
11 | SWIVEL BALL | 93421 |
12 | LINK | 823706 |
13 | PIVOT | 74897T |
14 | SCREW, (.190-32 x 1.250) | 13627 |
15 | NUT, (#10-32) Stainless Steel | 68219 |
16 | CAP | 48039 |
17 | SPRING | 823235 |
18 | WASHER, (.390 x 1.50 x .120) | 46765 |
19 | SCREW, (.250-20 x 2.125) | 64022 |
20 | NUT, (.250-20) | 64015 |
21 | CAP, Nylon | 26852 |
22 | LATCH | 39483 |
23 | SCREW, (.250-28 x .880) | 69026 |
24 | SPRING | 20099 |
25 | NUT, (.250-28) | 826709109 |
26 | LEVER | 410952 |
27 | SCREW, (.375-16 x 1.75) | 818165 |
28 | BUSHING | 55164 |
29 | BARREL | 14638 |
30 | ROD | 814929 |
31 | BUSHING | 93248 1 |
32 | NUT, (.250-28) | 826709109 |
33 | STUD, (.250-28 x 1.750) | 20353 |
34 | CAM, Throttle | 815539T |
35 | BRACKET ASSEMBLY | 814283A 2 |
36 | CUP | 39519 |
37 | DRIVE SCREW | 42975 |
38 | LATCH | 98889 |
39 | SCREW, (.312-18 x .880) | 53167T |
40 | SHIFT SHAFT ASSEMBLY (LONG) | 79932A16 |
40 | SHIFT SHAFT ASSEMBLY (X-LONG) | 79932A17 |
41 | GUIDE BLOCK | 814284 |
42 | SPRING | 20099 |
43 | LINK ROD ASSEMBLY | 67073A 1 |
44 | WEAR PLATE | 52100 |
45 | LATCH | 8M0036768 |
46 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 35462 |
47 | NUT, (.250-28) | 826709109 |
48 | BUSHING | 26600 |
49 | WAVE WASHER | 29720 |
50 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 35462 |
51 | NUT, (.250-28) | 826709109 |
52 | IDLE STABILIZING SHIFT KIT | 814281A 1 |
53 | SCREW, (#6-32 x .875) | 77478 |
54 | WASHER | 27882 |
55 | RESISTOR MODULE | 17461A 3 |
Quick Overview
SCREW 10
SKU : 77478
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061178571
