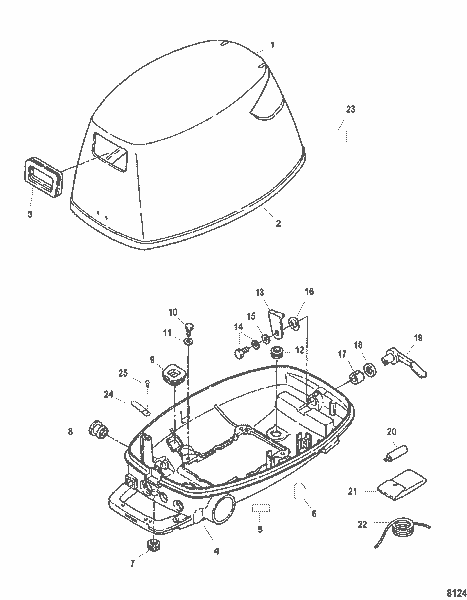

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description : MERCURY 803580T 4 Top Cowl Assembly
Product Category : 4 (4-STROKE)/ 0P073456 THRU 0P400999/ Cowling
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | TOP COWL ASSEMBLY | 803580T 1 |
1 | TOP COWL ASSEMBLY | 803580T 2 |
1 | TOP COWL ASSEMBLY | 803580T 4 |
1 | TOP COWL ASSEMBLY | 803580T 5 |
2 | SEAL | 810751 2 |
3 | SEAL, Rubber | 16228 2 |
4 | BOTTOM COWL | 803578T02 |
4 | BOTTOM COWL | 803578T 1 |
5 | DECAL, Fuel Lever, Remote Fuel Shut-Off | 815693 1 |
6 | DECAL, Fuel Lever | 879706 |
7 | GROMMET | 16226 |
8 | GROMMET | 16225 |
9 | GROMMET | 16231 |
10 | BOLT, (M6 x 16) | 16832 |
11 | WASHER, Stainless Steel | 16826 |
12 | GROMMET | 95387 1 |
13 | COVER HOOK | 803579 |
14 | BOLT | 16211 1 |
15 | WASHER, Stainless Steel | 95392 1 |
16 | WAVE WASHER | 16221 |
17 | BUSHING | 16220 |
18 | SEAL | 16219 |
19 | HOOK LEVER | 16218 1 |
20 | FLUSHING ATTACHMENT | 16841Q02 |
21 | TOOL KIT | 803581 |
22 | SAFETY ROPE | 16230 |
23 | DECAL, EPA Label Information | 856985 18 |
23 | DECAL, EPA Label Information | 804651A00 |
23 | DECAL, EPA Label Information | 804651A01 |
23 | DECAL, EPA Label Information | 804651A02 |
23 | DECAL, EPA Label Information | 804651A03 |
23 | DECAL, EPA Label Information | 804651A04 |
23 | DECAL, EPA Label Information | 804651A05 |
24 | CLAMP | 813275 |
25 | SCREW | 16827 |
- | DECAL, Fuel Lever | 824087 7 |
1 | TOP COWL ASSEMBLY | 803580T 1 |
1 | TOP COWL ASSEMBLY | 803580T 2 |
1 | TOP COWL ASSEMBLY | 803580T 4 |
1 | TOP COWL ASSEMBLY | 803580T 5 |
2 | SEAL | 810751 2 |
3 | SEAL, Rubber | 16228 2 |
4 | BOTTOM COWL | 803578T02 |
4 | BOTTOM COWL | 803578T 1 |
5 | DECAL, Fuel Lever, Remote Fuel Shut-Off | 815693 1 |
6 | DECAL, Fuel Lever | 879706 |
7 | GROMMET | 16226 |
8 | GROMMET | 16225 |
9 | GROMMET | 16231 |
10 | BOLT, (M6 x 16) | 16832 |
11 | WASHER, Stainless Steel | 16826 |
12 | GROMMET | 95387 1 |
13 | COVER HOOK | 803579 |
14 | BOLT | 16211 1 |
15 | WASHER, Stainless Steel | 95392 1 |
16 | WAVE WASHER | 16221 |
17 | BUSHING | 16220 |
18 | SEAL | 16219 |
19 | HOOK LEVER | 16218 1 |
20 | FLUSHING ATTACHMENT | 16841Q02 |
21 | TOOL KIT | 803581 |
22 | SAFETY ROPE | 16230 |
23 | DECAL, EPA Label Information | 856985 18 |
23 | DECAL, EPA Label Information | 804651A00 |
23 | DECAL, EPA Label Information | 804651A01 |
23 | DECAL, EPA Label Information | 804651A02 |
23 | DECAL, EPA Label Information | 804651A03 |
23 | DECAL, EPA Label Information | 804651A04 |
23 | DECAL, EPA Label Information | 804651A05 |
24 | CLAMP | 813275 |
25 | SCREW | 16827 |
- | DECAL, Fuel Lever | 824087 7 |
Quick Overview
TOP COWL-BLACK 114
SKU : 803580T4
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061269842
