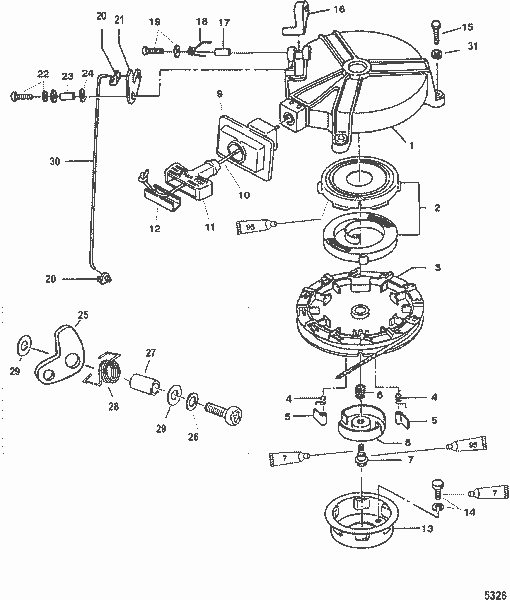

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description : MERCURY 812632002 Housing, Starter
Product Category : 5 (2-STROKE)/ 0G710613 THRU 0T894438/ Recoil Starter
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | STARTER ASSEMBLY, Recoil | 803576T02 |
1 | HOUSING, Starter | 812632002 |
2 | SPRING SET, Starter | 812645T |
3 | SHEEVE, Starter | 812633 |
4 | SPRING, Return | 812634 |
5 | RATCHET | 8M0060217 |
6 | SPRING, Friction | 812636 |
7 | BOLT | 812637 |
8 | FRICTION PLATE | 812638 |
9 | PLATE, Seal | 16110 1 |
10 | ROPE | 12066Q10 |
11 | HANDLE, Starter Rope | 812640 |
12 | RETAINER | 812641 |
13 | PULLEY, Starter | 812642 |
14 | SCREW AND LOCKWASHER | 16828 1 |
15 | SCREW | 810755 |
16 | LOCK, Starter | 17634 |
17 | COLLAR | 895130 |
18 | SPRING | 812645007 |
19 | SCREW | 855544 9 |
20 | SNAP, Link Rod | 17643 1 |
21 | CAM | 812643 |
22 | SCREW | 855544 |
23 | COLLAR | 855545 |
24 | WAVE WASHER | 17641 |
25 | LOCK CAM, Starter | 812643 1 |
26 | SCREW | 804364 |
27 | COLLAR | 804365 |
28 | SPRING | 804366 |
29 | WASHER, Stainless Steel | 16826 |
30 | ROD | 17642001 |
31 | LOCKWASHER, (M6) | 40025 6 |
- | STARTER ASSEMBLY, Recoil | 803576T02 |
1 | HOUSING, Starter | 812632002 |
2 | SPRING SET, Starter | 812645T |
3 | SHEEVE, Starter | 812633 |
4 | SPRING, Return | 812634 |
5 | RATCHET | 8M0060217 |
6 | SPRING, Friction | 812636 |
7 | BOLT | 812637 |
8 | FRICTION PLATE | 812638 |
9 | PLATE, Seal | 16110 1 |
10 | ROPE | 12066Q10 |
11 | HANDLE, Starter Rope | 812640 |
12 | RETAINER | 812641 |
13 | PULLEY, Starter | 812642 |
14 | SCREW AND LOCKWASHER | 16828 1 |
15 | SCREW | 810755 |
16 | LOCK, Starter | 17634 |
17 | COLLAR | 895130 |
18 | SPRING | 812645007 |
19 | SCREW | 855544 9 |
20 | SNAP, Link Rod | 17643 1 |
21 | CAM | 812643 |
22 | SCREW | 855544 |
23 | COLLAR | 855545 |
24 | WAVE WASHER | 17641 |
25 | LOCK CAM, Starter | 812643 1 |
26 | SCREW | 804364 |
27 | COLLAR | 804365 |
28 | SPRING | 804366 |
29 | WASHER, Stainless Steel | 16826 |
30 | ROD | 17642001 |
31 | LOCKWASHER, (M6) | 40025 6 |
Quick Overview
HOUSING-STARTER
SKU : 812632002
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061706514
