Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

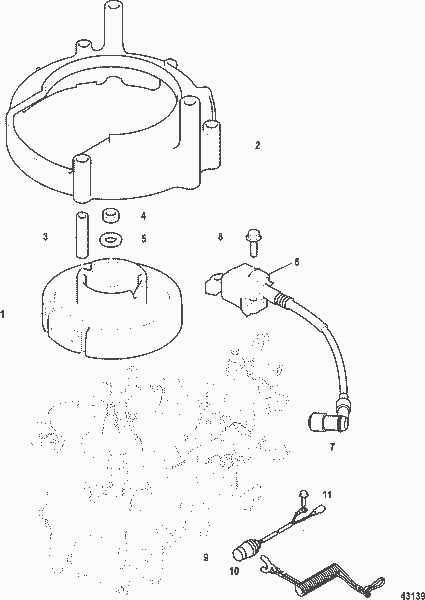

Schematic Object Key : 1
Product Description : MERCURY 812644T01 Flywheel
Product Category : 3.5 (4-STROKE) Carb/ 0R131842 & Up/ Flywheel Cup, Serial # 0R318096 And Up
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | FLYWHEEL | 812644T01 |
2 | COVER, Flywheel | 898103T59 |
3 | COLLAR | 898101305 |
4 | NUT | 95233 |
5 | WASHER | 898101307 |
6 | IGNITER, With Cap | 803559T08 |
7 | BOOT | 803560001 |
8 | BOLT, (M6 x 20) | 16705 1 |
9 | SWITCH ASSEMBLY, Stop - Lanyard | 823037A06 |
10 | LANYARD | 823054 |
11 | BOLT | 898103117 |
1 | FLYWHEEL | 812644T01 |
2 | COVER, Flywheel | 898103T59 |
3 | COLLAR | 898101305 |
4 | NUT | 95233 |
5 | WASHER | 898101307 |
6 | IGNITER, With Cap | 803559T08 |
7 | BOOT | 803560001 |
8 | BOLT, (M6 x 20) | 16705 1 |
9 | SWITCH ASSEMBLY, Stop - Lanyard | 823037A06 |
10 | LANYARD | 823054 |
11 | BOLT | 898103117 |
Quick Overview
CUP-FLYWHEEL
SKU : 812644T01
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
