MERCURY 816728T14 Starter Assembly, Recoil

Write a Review
$355.00
SKU:
816728T14
Schematic Object Key:
-

MERCURY 816728T14 Starter Assembly, Recoil

$355.00

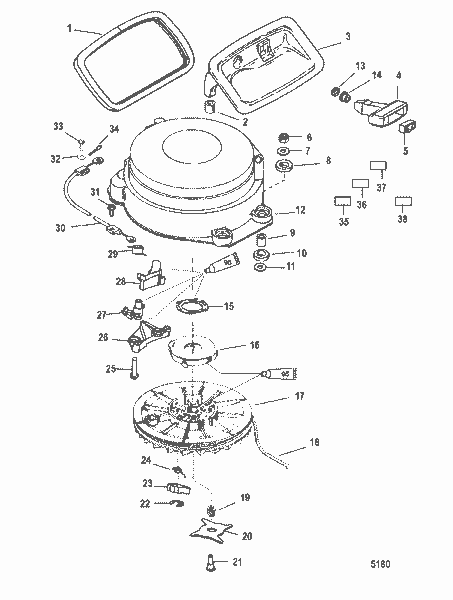

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 816728T14 Starter Assembly, Recoil

Schematic Object Key : -

Product Description : MERCURY 816728T14 Starter Assembly, Recoil

Product Category : 30 (2 CYL.)/ 0P325500 & Up/ Manual Start Components

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 SEAL, Handle Rest 8M0043416
2 SPACER, Handle Rest 822392
3 REST, Starter Handle 821788T02
4 HANDLE ASSEMBLY 85174A 1
5 NOT SOLD SEPARATE, Retainer NSS
6 NUT, (M6) Stainless Steel 40136 6
7 WASHER, (.265 x .750 x .048) 858779
8 GROMMET 815795 1
9 BUSHING 816086
10 GROMMET 815795 1
11 WASHER, (.265 x .750 x .048) 858779
- STARTER ASSEMBLY, Recoil 816728T14
12 HOUSING 816728T05
13 RING, Retaining 818853
14 BUSHING 42690
15 LOCKWASHER 826229
16 SPRING 86857T01
17 SHEAVE, Starter 825269T01
18 ROPE 12066Q10
19 SPRING 86852 3
20 CAM 86853T01
21 SCREW, (.250-20 x .625) 826253
22 RING, Retaining 86849T01
23 CAM 86850 1
24 SPRING 86851T02
25 SCREW, (#10-16 x 1.00) 818249 1
26 RETAINER 816711
27 CAM 816712T01
28 LEVER 816690 3
29 SPRING 826791
30 CABLE, Interlock, Interlock 856754 2
31 SCREW, (#10-16 x .500) 878608
32 WASHER, (.220 x .500 x .030) Stainless Steel 73288
33 SCREW, (#10-16 x .625) 821428 1
34 COTTER PIN 26811
35 DECAL, EPA Label Information (2005) 804664A05
35 DECAL, EPA Label Information (2006) 804664A06
36 DECAL, Warning, High Voltage 827282 2
37 NOT SOLD SEPARATE, Decal-Caution in Gear Idle NSS
38 NOT SOLD SEPARATE, Decal-Timing NSS
1 SEAL, Handle Rest 8M0043416
2 SPACER, Handle Rest 822392
3 REST, Starter Handle 821788T02
4 HANDLE ASSEMBLY 85174A 1
5 NOT SOLD SEPARATE, Retainer NSS
6 NUT, (M6) Stainless Steel 40136 6
7 WASHER, (.265 x .750 x .048) 858779
8 GROMMET 815795 1
9 BUSHING 816086
10 GROMMET 815795 1
11 WASHER, (.265 x .750 x .048) 858779
- STARTER ASSEMBLY, Recoil 816728T14
12 HOUSING 816728T05
13 RING, Retaining 818853
14 BUSHING 42690
15 LOCKWASHER 826229
16 SPRING 86857T01
17 SHEAVE, Starter 825269T01
18 ROPE 12066Q10
19 SPRING 86852 3
20 CAM 86853T01
21 SCREW, (.250-20 x .625) 826253
22 RING, Retaining 86849T01
23 CAM 86850 1
24 SPRING 86851T02
25 SCREW, (#10-16 x 1.00) 818249 1
26 RETAINER 816711
27 CAM 816712T01
28 LEVER 816690 3
29 SPRING 826791
30 CABLE, Interlock, Interlock 856754 2
31 SCREW, (#10-16 x .500) 878608
32 WASHER, (.220 x .500 x .030) Stainless Steel 73288
33 SCREW, (#10-16 x .625) 821428 1
34 COTTER PIN 26811
35 DECAL, EPA Label Information (2005) 804664A05
35 DECAL, EPA Label Information (2006) 804664A06
36 DECAL, Warning, High Voltage 827282 2
37 NOT SOLD SEPARATE, Decal-Caution in Gear Idle NSS
38 NOT SOLD SEPARATE, Decal-Timing NSS



Quick Overview

STARTER ASY-RECOI

SKU : 816728T14

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061319691
