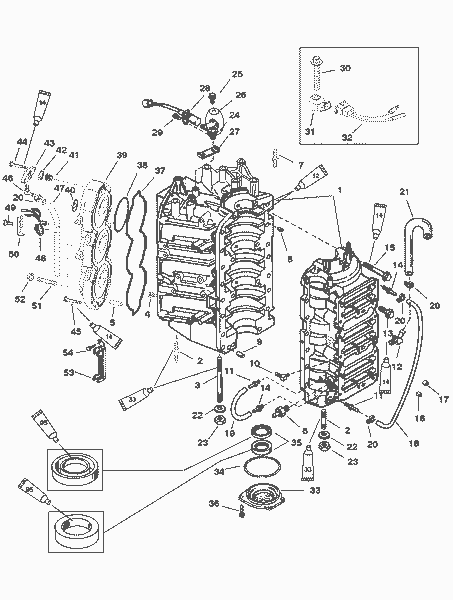

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 46
Product Description : MERCURY 8167811 Elbow
Product Category : 200 (DFI)/ 0G386496 THRU 0G589999/ Cylinder Block And End Cap
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
33 | LOWER END CAP | 9787A 4 |
34 | O RING | 62700 |
35 | OIL SEAL | 8308981 |
36 | SCREW (M6 X 1) | 821300 20 |
37 | SEAL- CYLINDER HEAD | 818574 |
38 | O RING | 818573 |
39 | CYLINDER HEAD | 835431A 1 |
39 | CYLINDER HEAD | 835432A 1 |
40 | WAHER-CUPPED | 828694A 1 |
41 | THERMOSTAT (143 DEGREES) | 833072003 |
42 | GASKET- THERMOSTAT | 62386001 |
43 | COVER- THERMOSTAT | 8M0039353 |
44 | SCREW (M6 X 25) | 821300 25 |
45 | SCREW (M8 X 50) | 8M0045380 |
46 | ELBOW | 8167811 |
47 | TUBING (21-1/2 IN. & 23 IN.) | 77653101 |
48 | TEMPERATURE SENSOR | 13536A14 |
49 | SCREW (M8 X 12) | 818934 12 |
50 | SENSOR RETAINER | 828523 |
51 | STUD | 90350 9 |
52 | NUT | 826292 |
53 | CLAMP | 826624 1 |
54 | SCREW (M6 X 1) | 821300 12 |
- | GASKET SET | 814195A97 |
- | POWERHEAD | 809973A97 |
33 | LOWER END CAP | 9787A 4 |
34 | O RING | 62700 |
35 | OIL SEAL | 8308981 |
36 | SCREW (M6 X 1) | 821300 20 |
37 | SEAL- CYLINDER HEAD | 818574 |
38 | O RING | 818573 |
39 | CYLINDER HEAD | 835431A 1 |
39 | CYLINDER HEAD | 835432A 1 |
40 | WAHER-CUPPED | 828694A 1 |
41 | THERMOSTAT (143 DEGREES) | 833072003 |
42 | GASKET- THERMOSTAT | 62386001 |
43 | COVER- THERMOSTAT | 8M0039353 |
44 | SCREW (M6 X 25) | 821300 25 |
45 | SCREW (M8 X 50) | 8M0045380 |
46 | ELBOW | 8167811 |
47 | TUBING (21-1/2 IN. & 23 IN.) | 77653101 |
48 | TEMPERATURE SENSOR | 13536A14 |
49 | SCREW (M8 X 12) | 818934 12 |
50 | SENSOR RETAINER | 828523 |
51 | STUD | 90350 9 |
52 | NUT | 826292 |
53 | CLAMP | 826624 1 |
54 | SCREW (M6 X 1) | 821300 12 |
- | GASKET SET | 814195A97 |
- | POWERHEAD | 809973A97 |
Quick Overview
FITTING 22
SKU : 8167811
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061319950
