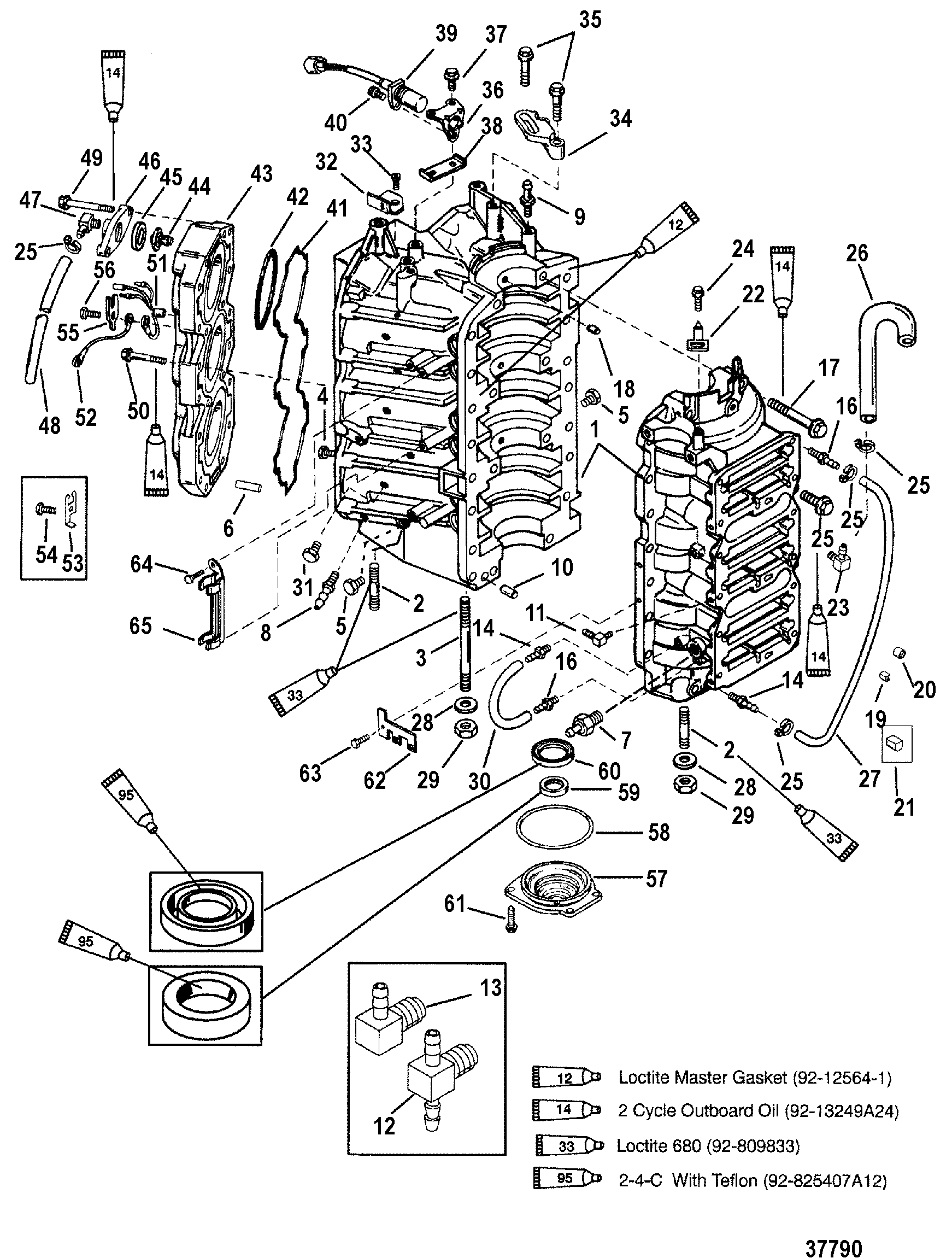

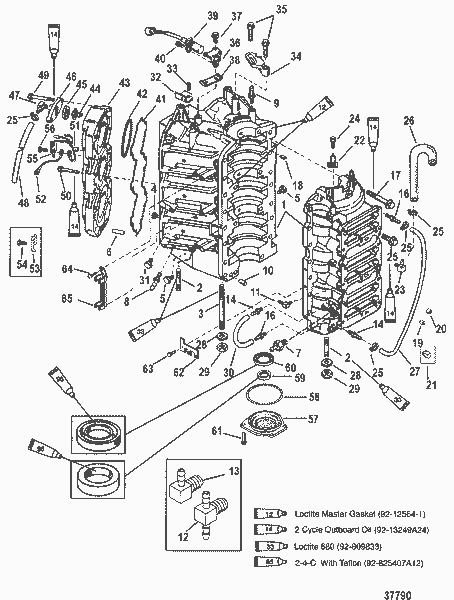

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 34
Product Description : MERCURY 821105 1 Bracket, Alternator
Product Category : 250 (3.0L EFI)/ 0G129222 THRU 0G760299/ Cylinder Block And End Cap
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | CYLINDER BLOCK | 9811A19 |
1 | CYLINDER BLOCK | 9811A19 |
2 | STUD, (M10 x 1.5 x 64) | 90350 9 |
3 | STUD, (M10 x 1.5 x 155) | 815443 1 |
4 | PLUG, Pipe (.125-27) | 328022 |
5 | FITTING, (.250-18 x .62) Brass (USE WHERE APPLICABLE) | 36382 |
6 | DEFLECTOR, Water | 8248577 |
7 | FITTING | 8781051 |
8 | CONNECTOR | 824502 1 |
9 | PIN | 8215832 |
10 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
11 | FITTING | 768431 |
11 | FITTING | 768431 |
12 | CHECK VALVE | 834804 1 |
13 | CHECK VALVE | 828218 2 |
14 | CHECK VALVE | 42658 5 |
15 | SCREW, (M8 x 35) | 818934 35 |
16 | CHECK VALVE | 815923 4 |
17 | SCREW, (M10 x 80) | 824461 80 |
18 | PIN | 8M0036405 |
19 | CARRIER ASSEMBLY (INCLUDES 6 CARRIERS) | 825367A 1 |
20 | CHECK VALVE | 42657A 3 |
21 | PLUG | 850309001 |
22 | TIMING POINTER | 821762 1 |
23 | FITTING, (.250-18) 90 Degree - Brass (INCLUDED W/REF. #26) | 687271 |
24 | SCREW, (M6 x 12) | 821300 12 |
25 | TIE STRAP, (8.00 Inches) | 816311T |
26 | TUBING KIT | 826544A 1 |
27 | TUBING, (20.00 Feet Bulk) (22-1/2 IN.) | 892024122 |
28 | WASHER, (.406 x .750 x .104) | 856774 |
29 | NUT, (M10) | 4013610 |
30 | TUBING, (20.00 Feet Bulk) (3-3/4 IN.) | 892024122 |
30 | TUBING, (20.00 Feet Bulk) (4 IN.) | 892024122 |
31 | PIPE PLUG | 8272011 |
32 | BRACKET | 825675 1 |
33 | SCREW, (M6 x 12) | 821300 12 |
34 | BRACKET, Alternator | 821105 1 |
35 | SCREW, (M8 x 50) | 818934 50 |
36 | BRACKET | 821225 1 |
37 | SCREW, (M6 x 12) | 821300 12 |
38 | BRACKET, Guide | 822486 |
39 | SENSOR | 821909 |
40 | SCREW, (M5 x 10) | 821045 10 |
41 | SEAL | 818574 |
42 | O-RING | 818573 |
43 | CYLINDER HEAD | 812851A 2 |
44 | THERMOSTAT, 62° Celsius (143° Fahrenheit) | 833072003 |
44 | THERMOSTAT (143 DEGREES) | 75692 |
45 | GASKET | 62386001 |
46 | THERMOSTAT COVER | 19801A 1 |
46 | COVER, Thermostat | 19801A1 |
47 | FITTING (45 DEGREE) | 8167811 |
47 | FITTING, (.250-18) 90 Degree - Brass | 687271 |
48 | HOSE, (59.00 Inches Bulk) (19 IN.)(20-1/2 IN.) | 77653101 |
48 | HOSE, (59.00 Inches Bulk) (20 IN.)(21-1/2 IN.) | 77653101 |
49 | SCREW, (M8 x 90) | 824460 90 |
50 | SCREW, (M8 x 50) | 8M0045380 |
51 | SENSOR ASSEMBLY, Temperature | 13536A14 |
52 | CABLE ASSEMBLY (USE WHERE APPLICABLE) | 88807A42 |
53 | RETAINER, Sensor | 828523 |
54 | SCREW, (.375-16 x .500) | 828552 |
55 | RETAINER | 13715 1 |
56 | SCREW, (M8 x 12) | 818934 12 |
57 | END CAP ASSEMBLY, Lower | 9787A5 |
57 | END CAP ASSEMBLY | 9787A 4 |
58 | O-RING, (3.237 x .103) | 62700 |
58 | O-RING, (3.237 x .103) | 62700 |
59 | SEAL, Oil | 818571 1 |
59 | SEAL, Oil | 8308981 |
60 | SEAL, Oil | 859093 |
61 | SCREW, (M6 x 20) | 821300 20 |
62 | BRACKET | 826121 1 |
63 | SCREW, (#10-16 x .500) | 48408 |
64 | SCREW, (M6 x 12) | 821300 12 |
65 | CLAMP | 826624 1 |
- | GASKET SET | 814195A93 |
- | POWERHEAD ASSEMBLY | 809794A97 |
1 | CYLINDER BLOCK | 9811A19 |
1 | CYLINDER BLOCK | 9811A19 |
2 | STUD, (M10 x 1.5 x 64) | 90350 9 |
3 | STUD, (M10 x 1.5 x 155) | 815443 1 |
4 | PLUG, Pipe (.125-27) | 328022 |
5 | FITTING, (.250-18 x .62) Brass (USE WHERE APPLICABLE) | 36382 |
6 | DEFLECTOR, Water | 8248577 |
7 | FITTING | 8781051 |
8 | CONNECTOR | 824502 1 |
9 | PIN | 8215832 |
10 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
11 | FITTING | 768431 |
11 | FITTING | 768431 |
12 | CHECK VALVE | 834804 1 |
13 | CHECK VALVE | 828218 2 |
14 | CHECK VALVE | 42658 5 |
15 | SCREW, (M8 x 35) | 818934 35 |
16 | CHECK VALVE | 815923 4 |
17 | SCREW, (M10 x 80) | 824461 80 |
18 | PIN | 8M0036405 |
19 | CARRIER ASSEMBLY (INCLUDES 6 CARRIERS) | 825367A 1 |
20 | CHECK VALVE | 42657A 3 |
21 | PLUG | 850309001 |
22 | TIMING POINTER | 821762 1 |
23 | FITTING, (.250-18) 90 Degree - Brass (INCLUDED W/REF. #26) | 687271 |
24 | SCREW, (M6 x 12) | 821300 12 |
25 | TIE STRAP, (8.00 Inches) | 816311T |
26 | TUBING KIT | 826544A 1 |
27 | TUBING, (20.00 Feet Bulk) (22-1/2 IN.) | 892024122 |
28 | WASHER, (.406 x .750 x .104) | 856774 |
29 | NUT, (M10) | 4013610 |
30 | TUBING, (20.00 Feet Bulk) (3-3/4 IN.) | 892024122 |
30 | TUBING, (20.00 Feet Bulk) (4 IN.) | 892024122 |
31 | PIPE PLUG | 8272011 |
32 | BRACKET | 825675 1 |
33 | SCREW, (M6 x 12) | 821300 12 |
34 | BRACKET, Alternator | 821105 1 |
35 | SCREW, (M8 x 50) | 818934 50 |
36 | BRACKET | 821225 1 |
37 | SCREW, (M6 x 12) | 821300 12 |
38 | BRACKET, Guide | 822486 |
39 | SENSOR | 821909 |
40 | SCREW, (M5 x 10) | 821045 10 |
41 | SEAL | 818574 |
42 | O-RING | 818573 |
43 | CYLINDER HEAD | 812851A 2 |
44 | THERMOSTAT, 62° Celsius (143° Fahrenheit) | 833072003 |
44 | THERMOSTAT (143 DEGREES) | 75692 |
45 | GASKET | 62386001 |
46 | THERMOSTAT COVER | 19801A 1 |
46 | COVER, Thermostat | 19801A1 |
47 | FITTING (45 DEGREE) | 8167811 |
47 | FITTING, (.250-18) 90 Degree - Brass | 687271 |
48 | HOSE, (59.00 Inches Bulk) (19 IN.)(20-1/2 IN.) | 77653101 |
48 | HOSE, (59.00 Inches Bulk) (20 IN.)(21-1/2 IN.) | 77653101 |
49 | SCREW, (M8 x 90) | 824460 90 |
50 | SCREW, (M8 x 50) | 8M0045380 |
51 | SENSOR ASSEMBLY, Temperature | 13536A14 |
52 | CABLE ASSEMBLY (USE WHERE APPLICABLE) | 88807A42 |
53 | RETAINER, Sensor | 828523 |
54 | SCREW, (.375-16 x .500) | 828552 |
55 | RETAINER | 13715 1 |
56 | SCREW, (M8 x 12) | 818934 12 |
57 | END CAP ASSEMBLY, Lower | 9787A5 |
57 | END CAP ASSEMBLY | 9787A 4 |
58 | O-RING, (3.237 x .103) | 62700 |
58 | O-RING, (3.237 x .103) | 62700 |
59 | SEAL, Oil | 818571 1 |
59 | SEAL, Oil | 8308981 |
60 | SEAL, Oil | 859093 |
61 | SCREW, (M6 x 20) | 821300 20 |
62 | BRACKET | 826121 1 |
63 | SCREW, (#10-16 x .500) | 48408 |
64 | SCREW, (M6 x 12) | 821300 12 |
65 | CLAMP | 826624 1 |
- | GASKET SET | 814195A93 |
- | POWERHEAD ASSEMBLY | 809794A97 |
Quick Overview
BRACKET
SKU : 8211051
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061332010
