MERCURY 821321A 1 Bearing Assembly, Roller

Write a Review
$35.08
SKU:
821321A1
Schematic Object Key:
44

MERCURY 821321A 1 Bearing Assembly, Roller

$35.08

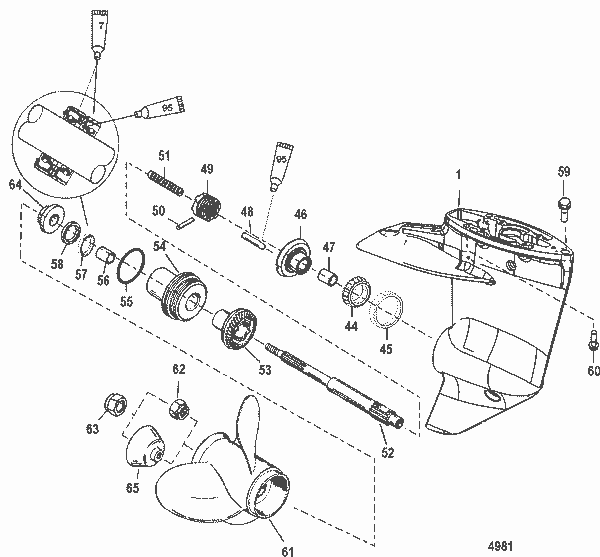

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 821321A 1 Bearing Assembly, Roller

Schematic Object Key : 44

Product Description : MERCURY 821321A 1 Bearing Assembly, Roller

Product Category : 9.9/ 1B000001 & Up/ Gear Housing, Propeller Shaft - 2.00:1 Gear Ratio

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY 8833T13
- GEAR HOUSING ASSEMBLY 8833T15
1 GEAR HOUSING ASSEMBLY, Basic-Black 8M0083312
44 BEARING ASSEMBLY, Roller 821321A 1
45 NOT SOLD SEPARATE, Cup NSS
46 GEAR ASSEMBLY, Forward (26 Teeth) 821924A 1
47 BUSHING 41367
48 FOLLOWER, Cam 813139
49 CLUTCH ASSEMBLY 821930A 1
50 PIN, Cross 823951
51 SPRING 42204
52 PROPELLER SHAFT 821929
53 GEAR, Reverse - 13/26 821926T 1
54 CARRIER, Bearing 42144T 3
55 O-RING, (1.984 x .139) 33145
56 BUSHING 821927
57 SEAL 99325
58 SEAL, Oil 821928
59 SCREW, (M8 x 50) 824071 10
60 SCREW, (M8 x 30) 824071 7
61 PROPELLER, 3-Blade (9.25 x 7.00) 828152A12
61 PROPELLER, (9.00 x 9.00) 828156A12
61 PROPELLER, (9.25 x 6.50) 828150A12
62 SPACER 42091 1
63 NUT, (M10) 40140
64 THRUST HUB 821932 1
65 CUP 822559Q01
- SEAL KIT 41365A 3
- GASKET SET, Engine 42364A92
- GEAR HOUSING ASSEMBLY 8833T13
- GEAR HOUSING ASSEMBLY 8833T15
1 GEAR HOUSING ASSEMBLY, Basic-Black 8M0083312
44 BEARING ASSEMBLY, Roller 821321A 1
45 NOT SOLD SEPARATE, Cup NSS
46 GEAR ASSEMBLY, Forward (26 Teeth) 821924A 1
47 BUSHING 41367
48 FOLLOWER, Cam 813139
49 CLUTCH ASSEMBLY 821930A 1
50 PIN, Cross 823951
51 SPRING 42204
52 PROPELLER SHAFT 821929
53 GEAR, Reverse - 13/26 821926T 1
54 CARRIER, Bearing 42144T 3
55 O-RING, (1.984 x .139) 33145
56 BUSHING 821927
57 SEAL 99325
58 SEAL, Oil 821928
59 SCREW, (M8 x 50) 824071 10
60 SCREW, (M8 x 30) 824071 7
61 PROPELLER, 3-Blade (9.25 x 7.00) 828152A12
61 PROPELLER, (9.00 x 9.00) 828156A12
61 PROPELLER, (9.25 x 6.50) 828150A12
62 SPACER 42091 1
63 NUT, (M10) 40140
64 THRUST HUB 821932 1
65 CUP 822559Q01
- SEAL KIT 41365A 3
- GASKET SET, Engine 42364A92



Quick Overview

BEARING KIT 31

SKU : 821321A1

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061333314
