MERCURY 821854T21 Carburetor, (Wme 57-3) (Bottom)(55/60 Manual)

Write a Review
$300.50
SKU:
821854T21

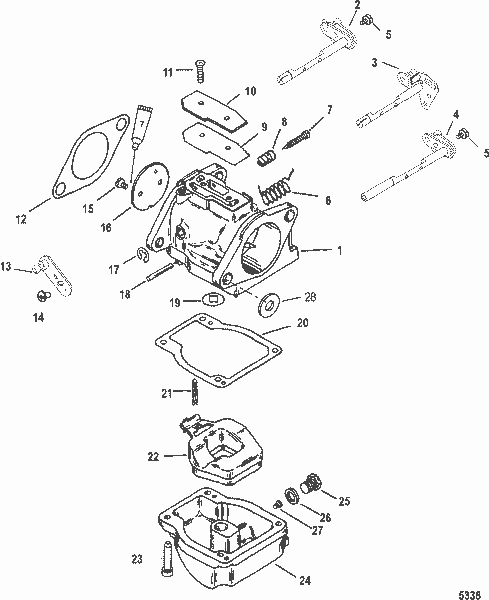

Schematic Object Key:
1

MERCURY 821854T21 Carburetor, (Wme 57-3) (Bottom)(55/60 Manual)

$300.50

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 821854T21 Carburetor, (Wme 57-3) (Bottom)(55/60 Manual)

Schematic Object Key : 1

Product Description : MERCURY 821854T21 Carburetor, (Wme 57-3) (Bottom)(55/60 Manual)

Product Category : 45 JET/ 0P017000 THRU 0P094499/ Carburetor

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 CARBURETOR, (WME 58-1) (Top)(60 Electric) 821854T22
1 CARBURETOR, (WME 58-2) (Center)(60 Electric) 821854T23
1 CARBURETOR, (WME 58-3) (Bottom)(60 Electric) 821854T24
1 CARBURETOR, (WME 57-1) (Top)(55/60 Manual) 821854T19
1 CARBURETOR, (WME 57-2) (Center)(55/60 Manual) 821854T20
1 CARBURETOR, (WME 57-3) (Bottom)(55/60 Manual) 821854T21
1 CARBURETOR, (WME 95-1) (Top)(60 Electric) 821854T22
1 CARBURETOR, (WME 95-2) (Center)(60 Electric) 821854T23
1 CARBURETOR, (WME 95-3) (Bottom)(60 Electric) 821854T24
1 CARBURETOR KIT, (WME 94-1) (Carburetor and Filter Assembly) 821854A25
1 CARBURETOR KIT, (WME 94-2) (Carburetor and Filter Assembly) 821854A26
1 CARBURETOR KIT, (WME 94-3) (Carburetor and Filter Assembly) 821854A27
1 CARBURETOR, (WME 94-1) (Top)(55/60 Manual) 821854T19
1 CARBURETOR, (WME 94-2) (Center)(55/60 Manual) 821854T20
1 CARBURETOR, (WME 94-3) (Bottom)(55/60 Manual) 821854T21
2 SHAFT, Throttle 823632
2 SHAFT, Throttle 823632
3 SHAFT, Throttle 823633
3 SHAFT, Throttle 823633
4 SHAFT, Throttle 823636
5 SCREW 823634
6 NOT SOLD SEPARATE, Spring-Throttle Return NSS
7 NOT SOLD SEPARATE, Idle Needle NSS
8 NOT SOLD SEPARATE, Spring-Idle Needle NSS
9 NOT SOLD SEPARATE, Gasket-Cover Plate NSS
10 COVER PLATE 811221
11 SCREW, Cover Plate 811220
12 GASKET, Flange 814446 1
13 LEVER, Oil Pump 811352 2
14 SCREW, Lever Retainer 808612 1
15 SCREW, Throttle Valve F10155
16 VALVE, Throttle 9724 6
17 NOT SOLD SEPARATE, Retaining Ring NSS
18 SHAFT F10064
19 GASKET 808738
20 NOT SOLD SEPARATE, Gasket-Fuel Bowl NSS
21 VALVE, Inlet Needle 9595 1
22 FLOAT 9594
23 SCREW AND WASHER, (#8-32 x .750) 808612
24 BOWL, Fuel 811695
24 BOWL, Fuel 811693
24 BOWL, Fuel 811693
25 PLUG KIT 811694
26 SEAL (Consists of 4 seals) 802731
27 JET, Main Fuel (.058) 7831
27 JET, Main (.060) 6487
- GASKET SET 812867A97
- REPAIR KIT, Carburetor 823635 4
- GASKET SET, Carburetor 811223 1
1 CARBURETOR, (WME 58-1) (Top)(60 Electric) 821854T22
1 CARBURETOR, (WME 58-2) (Center)(60 Electric) 821854T23
1 CARBURETOR, (WME 58-3) (Bottom)(60 Electric) 821854T24
1 CARBURETOR, (WME 57-1) (Top)(55/60 Manual) 821854T19
1 CARBURETOR, (WME 57-2) (Center)(55/60 Manual) 821854T20
1 CARBURETOR, (WME 57-3) (Bottom)(55/60 Manual) 821854T21
1 CARBURETOR, (WME 95-1) (Top)(60 Electric) 821854T22
1 CARBURETOR, (WME 95-2) (Center)(60 Electric) 821854T23
1 CARBURETOR, (WME 95-3) (Bottom)(60 Electric) 821854T24
1 CARBURETOR KIT, (WME 94-1) (Carburetor and Filter Assembly) 821854A25
1 CARBURETOR KIT, (WME 94-2) (Carburetor and Filter Assembly) 821854A26
1 CARBURETOR KIT, (WME 94-3) (Carburetor and Filter Assembly) 821854A27
1 CARBURETOR, (WME 94-1) (Top)(55/60 Manual) 821854T19
1 CARBURETOR, (WME 94-2) (Center)(55/60 Manual) 821854T20
1 CARBURETOR, (WME 94-3) (Bottom)(55/60 Manual) 821854T21
2 SHAFT, Throttle 823632
2 SHAFT, Throttle 823632
3 SHAFT, Throttle 823633
3 SHAFT, Throttle 823633
4 SHAFT, Throttle 823636
5 SCREW 823634
6 NOT SOLD SEPARATE, Spring-Throttle Return NSS
7 NOT SOLD SEPARATE, Idle Needle NSS
8 NOT SOLD SEPARATE, Spring-Idle Needle NSS
9 NOT SOLD SEPARATE, Gasket-Cover Plate NSS
10 COVER PLATE 811221
11 SCREW, Cover Plate 811220
12 GASKET, Flange 814446 1
13 LEVER, Oil Pump 811352 2
14 SCREW, Lever Retainer 808612 1
15 SCREW, Throttle Valve F10155
16 VALVE, Throttle 9724 6
17 NOT SOLD SEPARATE, Retaining Ring NSS
18 SHAFT F10064
19 GASKET 808738
20 NOT SOLD SEPARATE, Gasket-Fuel Bowl NSS
21 VALVE, Inlet Needle 9595 1
22 FLOAT 9594
23 SCREW AND WASHER, (#8-32 x .750) 808612
24 BOWL, Fuel 811695
24 BOWL, Fuel 811693
24 BOWL, Fuel 811693
25 PLUG KIT 811694
26 SEAL (Consists of 4 seals) 802731
27 JET, Main Fuel (.058) 7831
27 JET, Main (.060) 6487
- GASKET SET 812867A97
- REPAIR KIT, Carburetor 823635 4
- GASKET SET, Carburetor 811223 1



Quick Overview

CARBURETOR 3301

SKU : 821854T21

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061589971
