MERCURY 822002 Grommet

Write a Review
$8.40
SKU:
822002
Schematic Object Key:
31

MERCURY 822002 Grommet

$8.40

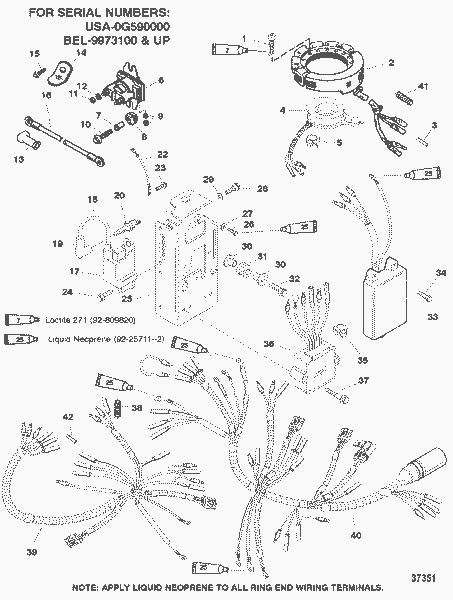

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 822002 Grommet

Schematic Object Key : 31

Product Description : MERCURY 822002 Grommet

Product Category : 30 (2 CYL.)/ 9854537 THRU 0P016999/ Electrical Components(3)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 SCREW, (M5 x 30) 4013930
2 STATOR 832074A11
3 PLUG, Male 13541
4 TRIGGER 853960T
5 TIE STRAP, (4.00 Inches) 56762
6 SOLENOID ASSEMBLY 850187T1
7 BUSHING 818968
8 GROMMET 818967
9 NUT, (#8-32) Brass 26419
10 SCREW, (M6 x 25) Stainless Steel 40011129
11 NUT, (.250-20) 64015
12 LOCKWASHER, (.250) Stainless Steel 26992
13 BOOT, Insulator - Red 830233
14 RETAINER 827510 1
15 SCREW, (#10-16 x .600) 878609
16 CABLE ASSEMBLY, Battery - Negative (ELECTRIC) 88439A 4
17 CDM ASSEMBLY 827509T7
18 CABLE ASSEMBLY, Hi Tension 821945A61
19 BOOT/TERMINAL KIT 63709A 1
20 SPARK PLUG (NGK# BP8H-N-10) 816737Q
21 SPARK PLUG (NGK#BPZ-8H-N-10) 816837Q
22 CABLE ASSEMBLY 88807A44
23 SCREW, (M8 x 12) 818934 12
24 SCREW, (M6 x 16) 821291 16
25 PLATE, Electrical 830236 1
26 SCREW, (M5 x 12) 822393 12
27 WASHER, (.203 x .406 x .040) 89302
28 SCREW, (M6 x 14) 821291 14
29 WASHER, (.281 x .500 x .060) Stainless Steel 29245
30 BUSHING 831870 1
31 GROMMET 822002
32 SCREW, (M6 x 30) Stainless Steel 40011130
33 REV LIMITER 821889A49
33 REV LIMITER 821889A50
34 SCREW, (M6 x 25 MM) 821291 25
35 TIE STRAP, (8.00 Inches) 816311T
36 REGULATOR, Voltage 8M0084173
37 SCREW, (M6 x 35) 821291 35
38 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) 828547353
39 HARNESS ASSEMBLY, Engine 854323A 2
40 HARNESS ASSEMBLY, Engine 854322A 2
41 CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk) 828547T
42 PLUG, Male 13541
42 CAP, Female 13540
- POWERHEAD ASSEMBLY 808569T02
1 SCREW, (M5 x 30) 4013930
2 STATOR 832074A11
3 PLUG, Male 13541
4 TRIGGER 853960T
5 TIE STRAP, (4.00 Inches) 56762
6 SOLENOID ASSEMBLY 850187T1
7 BUSHING 818968
8 GROMMET 818967
9 NUT, (#8-32) Brass 26419
10 SCREW, (M6 x 25) Stainless Steel 40011129
11 NUT, (.250-20) 64015
12 LOCKWASHER, (.250) Stainless Steel 26992
13 BOOT, Insulator - Red 830233
14 RETAINER 827510 1
15 SCREW, (#10-16 x .600) 878609
16 CABLE ASSEMBLY, Battery - Negative (ELECTRIC) 88439A 4
17 CDM ASSEMBLY 827509T7
18 CABLE ASSEMBLY, Hi Tension 821945A61
19 BOOT/TERMINAL KIT 63709A 1
20 SPARK PLUG (NGK# BP8H-N-10) 816737Q
21 SPARK PLUG (NGK#BPZ-8H-N-10) 816837Q
22 CABLE ASSEMBLY 88807A44
23 SCREW, (M8 x 12) 818934 12
24 SCREW, (M6 x 16) 821291 16
25 PLATE, Electrical 830236 1
26 SCREW, (M5 x 12) 822393 12
27 WASHER, (.203 x .406 x .040) 89302
28 SCREW, (M6 x 14) 821291 14
29 WASHER, (.281 x .500 x .060) Stainless Steel 29245
30 BUSHING 831870 1
31 GROMMET 822002
32 SCREW, (M6 x 30) Stainless Steel 40011130
33 REV LIMITER 821889A49
33 REV LIMITER 821889A50
34 SCREW, (M6 x 25 MM) 821291 25
35 TIE STRAP, (8.00 Inches) 816311T
36 REGULATOR, Voltage 8M0084173
37 SCREW, (M6 x 35) 821291 35
38 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk) 828547353
39 HARNESS ASSEMBLY, Engine 854323A 2
40 HARNESS ASSEMBLY, Engine 854322A 2
41 CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk) 828547T
42 PLUG, Male 13541
42 CAP, Female 13540
- POWERHEAD ASSEMBLY 808569T02



Quick Overview

GROMMET 25

SKU : 822002

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061078628
