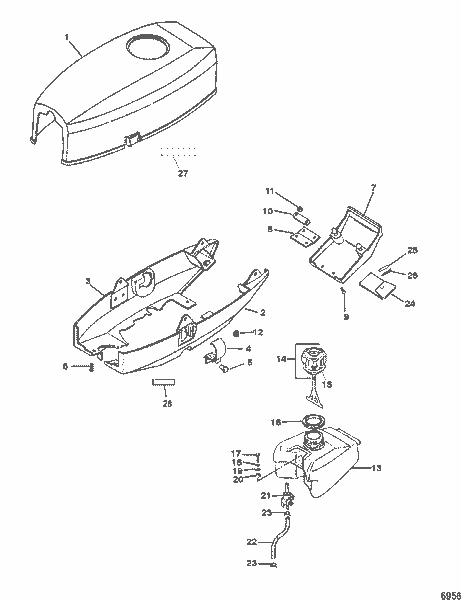

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 13
Product Description : MERCURY 824963A03 Tank Assembly, Fuel
Product Category : 3.3/ 0P401000 & Up/ Cowl And Fuel Tank, 1B575523 And Up
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | TOP COWL ASSEMBLY | 8M0046053 |
1 | TOP COWL ASSEMBLY | 8M0046051 |
2 | BOTTOM COWL, Port | 8M0145392 |
3 | BOTTOM COWL, Starboard | 8M0145391 |
4 | LATCH KIT | 8M0114258 |
5 | RIVET | 825829 |
6 | SCREW | 16827 |
7 | COVER | 8M0148363 |
8 | HINGE, Rear | 815105 |
9 | BOLT | 95386 |
10 | PLATE | 95280 |
11 | NUT | 95385 |
12 | GROMMET | 95387 |
13 | TANK ASSEMBLY, Fuel | 824963A03 |
14 | CAP | 8M0060029 |
15 | GASKET | 8M0065762 |
16 | SEAL | 815109 |
17 | BOLT | 803858 |
18 | LOCKWASHER | 16818 |
19 | WASHER | 95392 |
20 | SPACER | 95390 |
21 | VALVE | 95393 |
22 | LINE, Fuel (1000 mm) | 8M0057113 |
23 | CLIP, Stainless Steel | 95395 |
24 | TOOL KIT | 95399 |
25 | SHEAR PIN, Stainless Steel | 815111Q02 |
26 | COTTER PIN | 95295 |
27 | DECAL, EPA Label Information | 804660A06 |
28 | DECAL, Fuel Lever | 824085 7 |
1 | TOP COWL ASSEMBLY | 8M0046053 |
1 | TOP COWL ASSEMBLY | 8M0046051 |
2 | BOTTOM COWL, Port | 8M0145392 |
3 | BOTTOM COWL, Starboard | 8M0145391 |
4 | LATCH KIT | 8M0114258 |
5 | RIVET | 825829 |
6 | SCREW | 16827 |
7 | COVER | 8M0148363 |
8 | HINGE, Rear | 815105 |
9 | BOLT | 95386 |
10 | PLATE | 95280 |
11 | NUT | 95385 |
12 | GROMMET | 95387 |
13 | TANK ASSEMBLY, Fuel | 824963A03 |
14 | CAP | 8M0060029 |
15 | GASKET | 8M0065762 |
16 | SEAL | 815109 |
17 | BOLT | 803858 |
18 | LOCKWASHER | 16818 |
19 | WASHER | 95392 |
20 | SPACER | 95390 |
21 | VALVE | 95393 |
22 | LINE, Fuel (1000 mm) | 8M0057113 |
23 | CLIP, Stainless Steel | 95395 |
24 | TOOL KIT | 95399 |
25 | SHEAR PIN, Stainless Steel | 815111Q02 |
26 | COTTER PIN | 95295 |
27 | DECAL, EPA Label Information | 804660A06 |
28 | DECAL, Fuel Lever | 824085 7 |
Quick Overview
FUEL TANK 1258
SKU : 824963A03
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061349049
