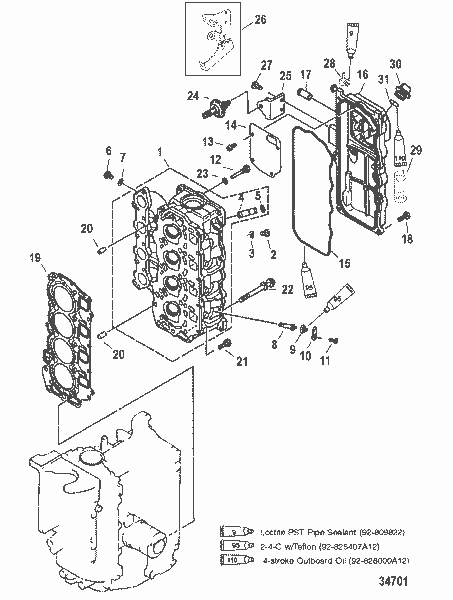

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 15
Product Description : MERCURY 825056 O-Ring
Product Category : 40 (4-STROKE)/ 0G231123 THRU 0G760299/ Cylinder Head
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | CYLINDER HEAD ASSEMBLY | 825034A17 |
1 | CYLINDER HEAD ASSEMBLY | 825034A 9 |
2 | BOLT | 831247 14 |
3 | WASHER, Sealing | 831246 |
4 | GUIDE | 8M0054272 |
5 | CIRCLIP | 825038 |
6 | SCREW, (M6 x 10) | 84088M |
7 | GASKET | 827610 |
8 | ANODE | 826887M |
9 | GROMMET | 825040 |
10 | COVER | 826888M |
11 | SCREW, (M6 x 20) Stainless Steel | 8M4503518 |
12 | BOLT | 827607 |
13 | SCREW, (M4 x 10) | 40057 85 |
14 | COVER | 825055 |
15 | O-RING | 825056 |
16 | COVER | 825053 4 |
16 | COVER | 8250534 |
17 | BREATHER PIPE | 825054 |
18 | SCREW, (M6 x 20) Stainless Steel | 8M4503518 |
19 | GASKET | 825032 |
20 | PIN, Dowel | 825010 |
21 | SCREW, (M6 x 25) | 893745025 |
22 | SCREW, (M9 x 95) | 825033 95 |
23 | GASKET | 827610 |
24 | DIAPHRAGM | 826060 |
25 | BRACKET | 828528 |
26 | BRACKET | 830294T1 |
27 | SCREW, (M6 x 13) Stainless Steel | 40011126 |
28 | ELBOW, (.125-27) | 629101 |
29 | CLAMP | 826624 1 |
30 | PLUG | 859578A1 |
31 | O-RING | 8M0052669 |
- | GASKET SET | 832013A96 |
- | POWERHEAD ASSEMBLY | 822775T97 |
- | POWERHEAD ASSEMBLY | 822775A98 |
- | CYLINDER HEAD ASSEMBLY | 825034A17 |
1 | CYLINDER HEAD ASSEMBLY | 825034A 9 |
2 | BOLT | 831247 14 |
3 | WASHER, Sealing | 831246 |
4 | GUIDE | 8M0054272 |
5 | CIRCLIP | 825038 |
6 | SCREW, (M6 x 10) | 84088M |
7 | GASKET | 827610 |
8 | ANODE | 826887M |
9 | GROMMET | 825040 |
10 | COVER | 826888M |
11 | SCREW, (M6 x 20) Stainless Steel | 8M4503518 |
12 | BOLT | 827607 |
13 | SCREW, (M4 x 10) | 40057 85 |
14 | COVER | 825055 |
15 | O-RING | 825056 |
16 | COVER | 825053 4 |
16 | COVER | 8250534 |
17 | BREATHER PIPE | 825054 |
18 | SCREW, (M6 x 20) Stainless Steel | 8M4503518 |
19 | GASKET | 825032 |
20 | PIN, Dowel | 825010 |
21 | SCREW, (M6 x 25) | 893745025 |
22 | SCREW, (M9 x 95) | 825033 95 |
23 | GASKET | 827610 |
24 | DIAPHRAGM | 826060 |
25 | BRACKET | 828528 |
26 | BRACKET | 830294T1 |
27 | SCREW, (M6 x 13) Stainless Steel | 40011126 |
28 | ELBOW, (.125-27) | 629101 |
29 | CLAMP | 826624 1 |
30 | PLUG | 859578A1 |
31 | O-RING | 8M0052669 |
- | GASKET SET | 832013A96 |
- | POWERHEAD ASSEMBLY | 822775T97 |
- | POWERHEAD ASSEMBLY | 822775A98 |
Quick Overview
O RING 25
SKU : 825056
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061349612
