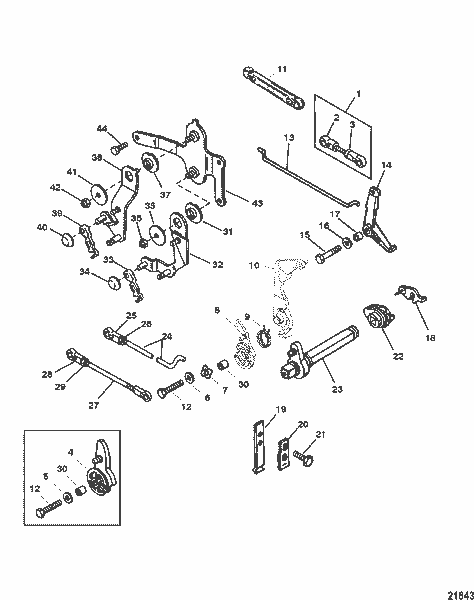

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 34
Product Description : MERCURY 825677 Push Nut
Product Category : 20 JET/ 9807909 THRU 0P016999/ Throttle And Shift Linkage(Remote Control)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | LINK ASSEMBLY, Spark Adjustment | 823857A 1 |
2 | SOCKET | 817428 |
3 | NUT, (#10-32) Brass | 45076 |
4 | CAM, Throttle | 823757 1 |
5 | WASHER, (.255 x .620 x .030) Stainless Steel | 69056 |
6 | WASHER, (.265 x .750 x .048) Stainless Steel | 65567 |
7 | WAVE WASHER | 99611 |
8 | CAM, Throttle | 831978 1 |
9 | SPRING | 42164 |
10 | SPARK ARM | 888191 |
11 | TIMING LINK | 8327471 |
12 | SCREW, (M6 x 25) | 40003 30 |
13 | LINK INTERLOCK | 42161 |
14 | LEVER, Interlock Control | 823610 3 |
15 | SCREW, (M6 x 25) | 40003 30 |
16 | WASHER, (.255 x .620 x .030) Stainless Steel | 69056 |
17 | BUSHING | 823806 |
18 | LEVER, Backplate | 823862 |
19 | SPRING, Detent | 826077 |
20 | SPRING, Plate | 824994 |
21 | SCREW, (M5 x 16) Stainless Steel | 40011107 |
22 | LEVER, Horizontal Shift Shaft (PORT) | 823863 2 |
23 | SHIFT SHAFT (HORIZONTAL) | 823601 1 |
24 | SHIFT ROD ASSEMBLY | 881228A1 |
25 | SOCKET | 817428 |
26 | NUT, (#10-32) Brass | 45076 |
27 | LINK ASSEMBLY, Throttle | 881227A3 |
28 | SOCKET | 817428 |
29 | NUT, (#10-32) Brass | 45076 |
30 | BUSHING | 823806 |
31 | NYLINER | 825319 |
32 | LEVER, Shift | 825168 1 |
33 | RETAINER | 822459 |
34 | PUSH NUT | 825677 |
35 | WASHER, (.255 x .620 x .030) Stainless Steel | 35280 |
36 | NUT, (M6) | 401386 |
37 | NYLINER | 825319 |
38 | LEVER, Throttle | 825169 |
39 | RETAINER | 822459 |
40 | PUSH NUT | 825677 |
41 | WASHER, (.255 x .620 x .030) Stainless Steel | 35280 |
42 | NUT, (M6) | 401386 |
43 | BRACKET, Mounting | 825170 1 |
44 | SCREW, (M6 x 16) | 40067 31 |
1 | LINK ASSEMBLY, Spark Adjustment | 823857A 1 |
2 | SOCKET | 817428 |
3 | NUT, (#10-32) Brass | 45076 |
4 | CAM, Throttle | 823757 1 |
5 | WASHER, (.255 x .620 x .030) Stainless Steel | 69056 |
6 | WASHER, (.265 x .750 x .048) Stainless Steel | 65567 |
7 | WAVE WASHER | 99611 |
8 | CAM, Throttle | 831978 1 |
9 | SPRING | 42164 |
10 | SPARK ARM | 888191 |
11 | TIMING LINK | 8327471 |
12 | SCREW, (M6 x 25) | 40003 30 |
13 | LINK INTERLOCK | 42161 |
14 | LEVER, Interlock Control | 823610 3 |
15 | SCREW, (M6 x 25) | 40003 30 |
16 | WASHER, (.255 x .620 x .030) Stainless Steel | 69056 |
17 | BUSHING | 823806 |
18 | LEVER, Backplate | 823862 |
19 | SPRING, Detent | 826077 |
20 | SPRING, Plate | 824994 |
21 | SCREW, (M5 x 16) Stainless Steel | 40011107 |
22 | LEVER, Horizontal Shift Shaft (PORT) | 823863 2 |
23 | SHIFT SHAFT (HORIZONTAL) | 823601 1 |
24 | SHIFT ROD ASSEMBLY | 881228A1 |
25 | SOCKET | 817428 |
26 | NUT, (#10-32) Brass | 45076 |
27 | LINK ASSEMBLY, Throttle | 881227A3 |
28 | SOCKET | 817428 |
29 | NUT, (#10-32) Brass | 45076 |
30 | BUSHING | 823806 |
31 | NYLINER | 825319 |
32 | LEVER, Shift | 825168 1 |
33 | RETAINER | 822459 |
34 | PUSH NUT | 825677 |
35 | WASHER, (.255 x .620 x .030) Stainless Steel | 35280 |
36 | NUT, (M6) | 401386 |
37 | NYLINER | 825319 |
38 | LEVER, Throttle | 825169 |
39 | RETAINER | 822459 |
40 | PUSH NUT | 825677 |
41 | WASHER, (.255 x .620 x .030) Stainless Steel | 35280 |
42 | NUT, (M6) | 401386 |
43 | BRACKET, Mounting | 825170 1 |
44 | SCREW, (M6 x 16) | 40067 31 |
Quick Overview
NUT-PUSH 11
SKU : 825677
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061352339
