MERCURY 826802A 4 Harness Assembly

Write a Review
$168.32
SKU:
826802A4
Schematic Object Key:
21

MERCURY 826802A 4 Harness Assembly

$168.32

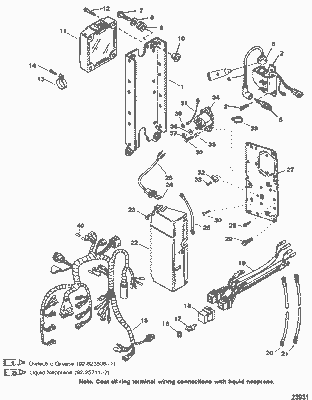

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 826802A 4 Harness Assembly

Schematic Object Key : 21

Product Description : MERCURY 826802A 4 Harness Assembly

Product Category : V-150 (EFI)/ 0G303046 THRU 0G760299/ Ignition Coil\Voltage Regulator

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 MOUNTING PLATE 19587 2
2 STUD 33778
3 BUSHING 19661
4 LOCKWASHER, (.250) Stainless Steel 26992
5 NUT, (.250-28) 8267119
6 CABLE ASSEMBLY 88807A35
7 REGULATOR, Voltage 8M0084173
8 HARNESS ASSEMBLY 69739A 7
9 TIE STRAP, (8.00 Inches) 816311T
10 COVER 43542
11 SCREW, (#10-32 x 2.125) 90048
12 WASHER, (.203 x .406 x .040) (USE WHERE APPLICABLE) 89302
13 NUT, (#10-32) 90078
14 CABLE ASSEMBLY 88807A13
15 SCREW, (#10-32 x .500) Stainless Steel 69022
16 COIL KIT 832757A 4
17 NUT, (#10-32) Brass 45076
18 CABLE ASSEMBLY, High Tension 813715A9
19 BOOT/TERMINAL KIT 63709A 1
20 SPARK PLUG (NGK #BU8H) 13686Q
20 SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM) 14103568
21 HARNESS ASSEMBLY 826802A 4
22 RELAY ASSEMBLY 882751A1
23 BRACKET 828102
24 BUSHING 818968
25 GROMMET 818967
26 WASHER, (.273 x .437 x .031) Stainless Steel 35950
27 NUT/SCREW KIT 13855A 1
28 NOT SOLD SEPARATE, SCREW NSS
1 MOUNTING PLATE 19587 2
2 STUD 33778
3 BUSHING 19661
4 LOCKWASHER, (.250) Stainless Steel 26992
5 NUT, (.250-28) 8267119
6 CABLE ASSEMBLY 88807A35
7 REGULATOR, Voltage 8M0084173
8 HARNESS ASSEMBLY 69739A 7
9 TIE STRAP, (8.00 Inches) 816311T
10 COVER 43542
11 SCREW, (#10-32 x 2.125) 90048
12 WASHER, (.203 x .406 x .040) (USE WHERE APPLICABLE) 89302
13 NUT, (#10-32) 90078
14 CABLE ASSEMBLY 88807A13
15 SCREW, (#10-32 x .500) Stainless Steel 69022
16 COIL KIT 832757A 4
17 NUT, (#10-32) Brass 45076
18 CABLE ASSEMBLY, High Tension 813715A9
19 BOOT/TERMINAL KIT 63709A 1
20 SPARK PLUG (NGK #BU8H) 13686Q
20 SPARK PLUG (NGK #BUZ8H - CANADA/BELGIUM) 14103568
21 HARNESS ASSEMBLY 826802A 4
22 RELAY ASSEMBLY 882751A1
23 BRACKET 828102
24 BUSHING 818968
25 GROMMET 818967
26 WASHER, (.273 x .437 x .031) Stainless Steel 35950
27 NUT/SCREW KIT 13855A 1
28 NOT SOLD SEPARATE, SCREW NSS



Quick Overview

HARNESS ASSY 84

SKU : 826802A4

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061356016
