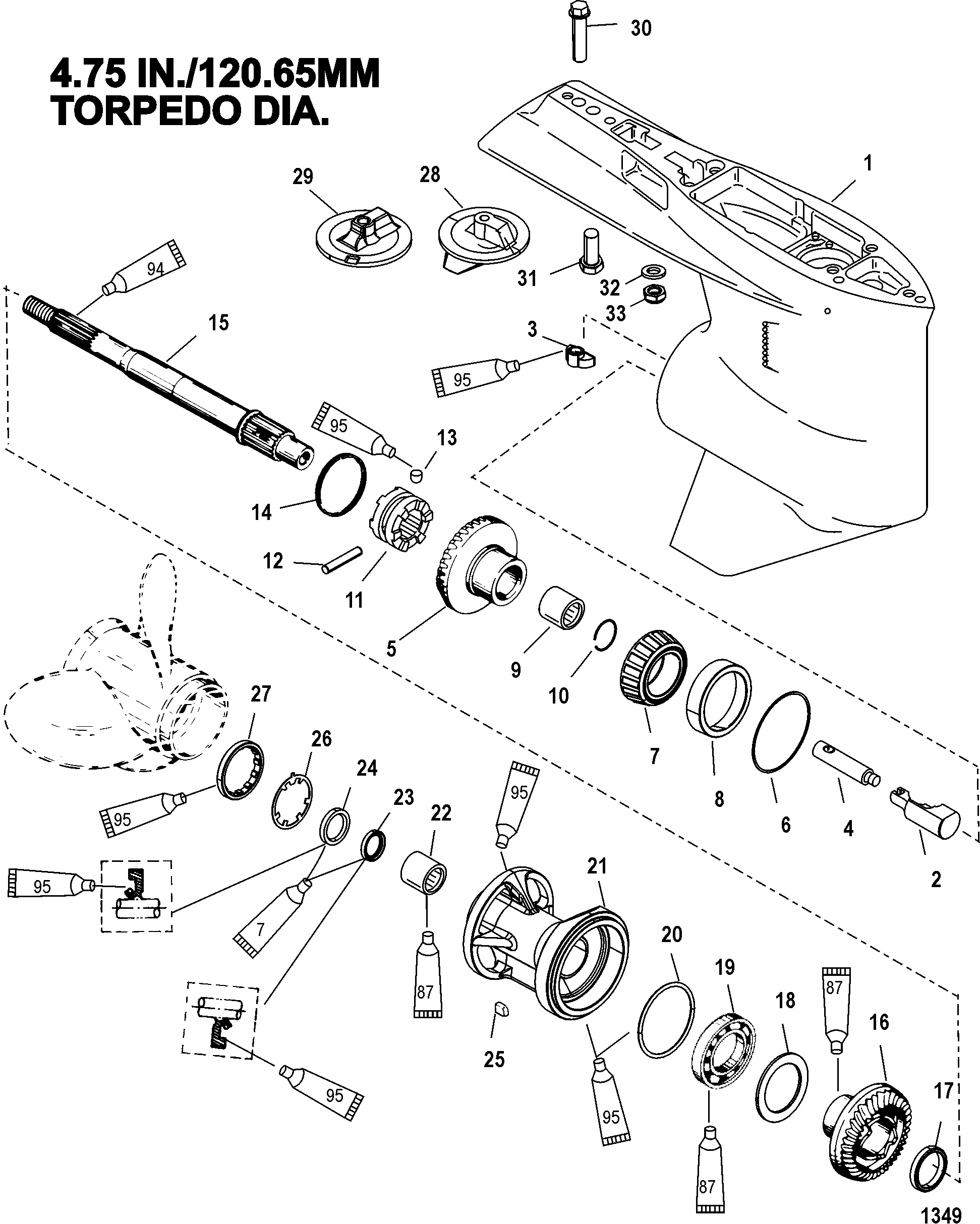

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 16
Product Description : MERCURY 828177A 1 Gear Assembly, Reverse - 14/28
Product Category : V-200/ 0G960500 THRU 1B226999/ Gear Housing, Propeller Shaft - Standard Rotation
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 9148T84 |
- | GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 9148T85 |
- | GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 9148T81 |
- | GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 9148T82 |
1 | GEAR HOUSING ASSEMBLY, Basic | 9148T93 |
2 | FOLLOWER ASSEMBLY | 89594A 1 |
3 | SHIFT CAM | 78956 2 |
4 | ROD | 828287 |
5 | GEAR ASSEMBLY, Forward 1.87:1 - 15/28 | 878613A 2 |
5 | GEAR ASSEMBLY, Pinion/Forward | 803615T 2 |
5 | GEAR ASSEMBLY, Forward 2:1 - 14/28 | 878615A 2 |
5 | GEAR ASSEMBLY, Pinion/Forward | 803612T 2 |
6 | SHIM SET | 44491A 1 |
7 | BEARING SET, Cup And Cone | 30894A 1 |
8 | NOT SOLD SEPARATE, Cup | NSS |
9 | BEARING, Needle | 30895T |
10 | RING, Retaining | 856823 |
11 | CLUTCH | 859340T |
12 | PIN, Cross | 8M0100263 |
13 | PIN, Detent | 828356 |
14 | SPRING | 30893 |
15 | PROPELLER SHAFT | 94148 |
16 | GEAR ASSEMBLY, Reverse - 15/28 | 828175A 1 |
16 | GEAR ASSEMBLY, Reverse - 14/28 | 828177A 1 |
17 | SPACER | 824108 |
18 | RING, Thrust | 68100 1 |
19 | BEARING, Ball | 88957T |
20 | O-RING | 31534 |
21 | CARRIER ASSEMBLY, Bearing | 43567T 1 |
22 | BEARING, Needle | 30956T |
23 | SEAL, Oil (INSIDE) | 14077 |
24 | SEAL (OUTSIDE) | 76868 |
25 | KEY | 30281 |
26 | TAB WASHER | 79447 |
27 | RETAINER | 8M2011027 |
28 | TRIM TAB | 31640T07 |
29 | ANODE KIT | 76214Q 5 |
30 | SCREW, (.437-14 x 1.750) | 806327 |
31 | SCREW, (.375-16 x 1.00) | 65210 |
32 | WASHER, (.453 x .812 x .105) Stainless Steel | 45176 |
33 | NUT, (.437-20) Stainless Steel | 34933 |
- | SEAL KIT | 89238A 2 |
- | FOLLOWER ASSEMBLY, Clutch/Cam | 803491T 1 |
- | BEARING AND SEAL KIT (W/O Foward Bearing) | 803033T 1 |
- | GASKET SET, Engine, Cylinder head o-rings and seal not included | 815791A00 |
- | GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 9148T84 |
- | GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 9148T85 |
- | GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 9148T81 |
- | GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter) | 9148T82 |
1 | GEAR HOUSING ASSEMBLY, Basic | 9148T93 |
2 | FOLLOWER ASSEMBLY | 89594A 1 |
3 | SHIFT CAM | 78956 2 |
4 | ROD | 828287 |
5 | GEAR ASSEMBLY, Forward 1.87:1 - 15/28 | 878613A 2 |
5 | GEAR ASSEMBLY, Pinion/Forward | 803615T 2 |
5 | GEAR ASSEMBLY, Forward 2:1 - 14/28 | 878615A 2 |
5 | GEAR ASSEMBLY, Pinion/Forward | 803612T 2 |
6 | SHIM SET | 44491A 1 |
7 | BEARING SET, Cup And Cone | 30894A 1 |
8 | NOT SOLD SEPARATE, Cup | NSS |
9 | BEARING, Needle | 30895T |
10 | RING, Retaining | 856823 |
11 | CLUTCH | 859340T |
12 | PIN, Cross | 8M0100263 |
13 | PIN, Detent | 828356 |
14 | SPRING | 30893 |
15 | PROPELLER SHAFT | 94148 |
16 | GEAR ASSEMBLY, Reverse - 15/28 | 828175A 1 |
16 | GEAR ASSEMBLY, Reverse - 14/28 | 828177A 1 |
17 | SPACER | 824108 |
18 | RING, Thrust | 68100 1 |
19 | BEARING, Ball | 88957T |
20 | O-RING | 31534 |
21 | CARRIER ASSEMBLY, Bearing | 43567T 1 |
22 | BEARING, Needle | 30956T |
23 | SEAL, Oil (INSIDE) | 14077 |
24 | SEAL (OUTSIDE) | 76868 |
25 | KEY | 30281 |
26 | TAB WASHER | 79447 |
27 | RETAINER | 8M2011027 |
28 | TRIM TAB | 31640T07 |
29 | ANODE KIT | 76214Q 5 |
30 | SCREW, (.437-14 x 1.750) | 806327 |
31 | SCREW, (.375-16 x 1.00) | 65210 |
32 | WASHER, (.453 x .812 x .105) Stainless Steel | 45176 |
33 | NUT, (.437-20) Stainless Steel | 34933 |
- | SEAL KIT | 89238A 2 |
- | FOLLOWER ASSEMBLY, Clutch/Cam | 803491T 1 |
- | BEARING AND SEAL KIT (W/O Foward Bearing) | 803033T 1 |
- | GASKET SET, Engine, Cylinder head o-rings and seal not included | 815791A00 |
Quick Overview
MERCURY_828177A1
SKU : 828177A1
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
