MERCURY 830046T05 Ecu, Engine Control Unit

Write a Review
$953.86
SKU:
830046T05
Schematic Object Key:
14

MERCURY 830046T05 Ecu, Engine Control Unit

$953.86

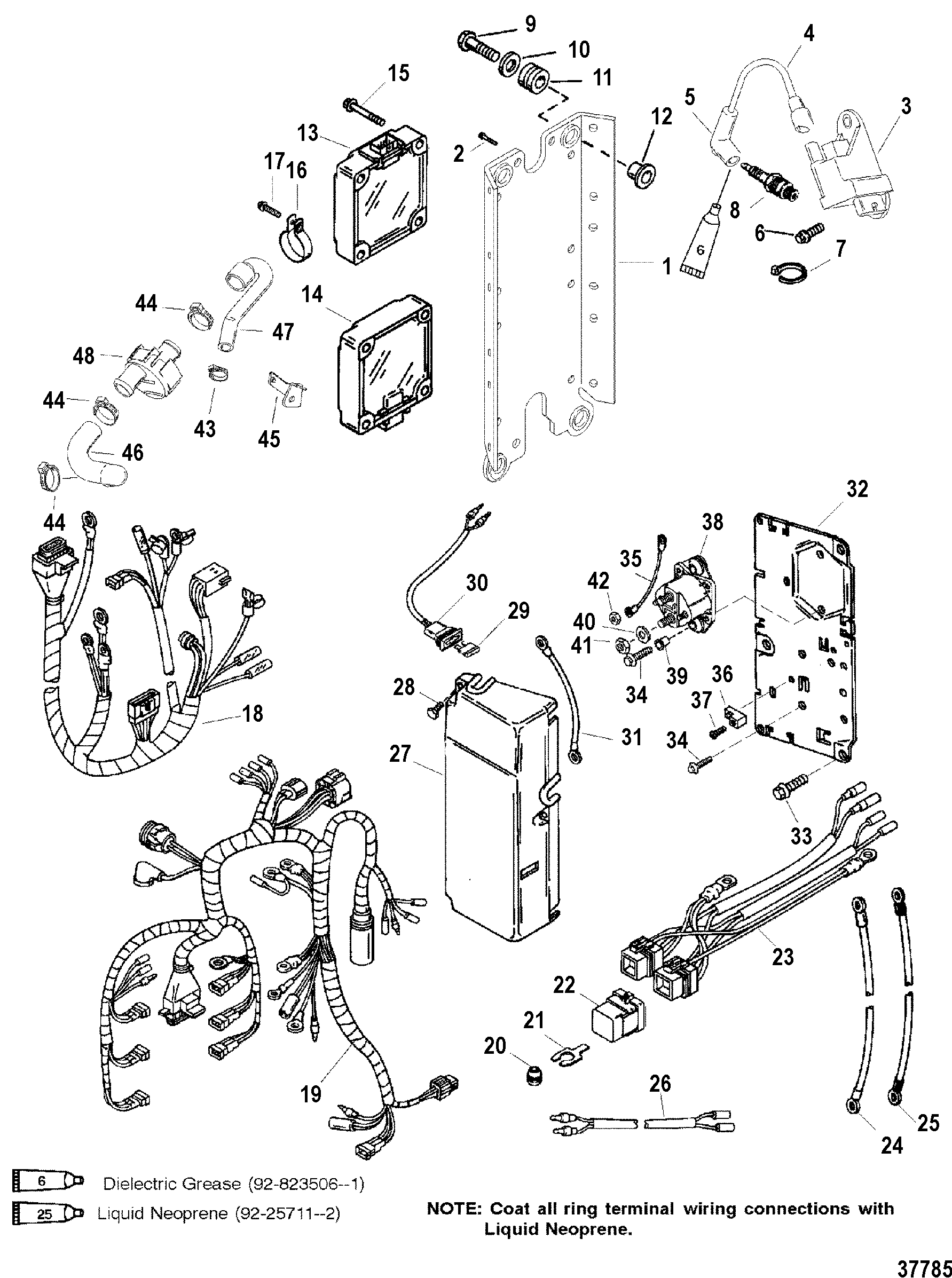

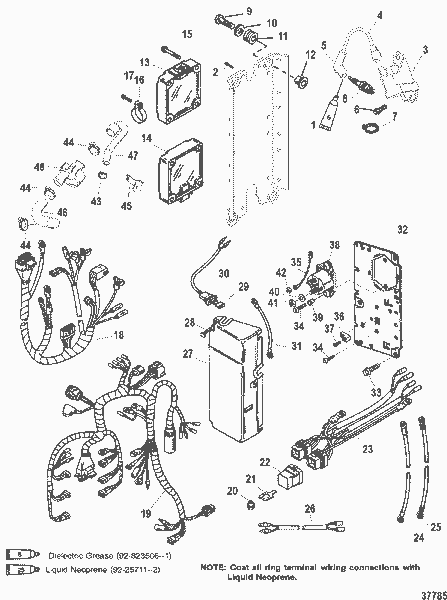

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 830046T05 Ecu, Engine Control Unit

Schematic Object Key : 14

Product Description : MERCURY 830046T05 Ecu, Engine Control Unit

Product Category : 250 (3.0L EFI)/ 0G129222 THRU 0G760299/ Electrical Components(S\N-0G303046 And Up)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 PLATE, Electrical Mounting 825296T1
2 SCREW, (M6 x 14) 821291 14
3 CDM ASSEMBLY 827509T7
4 CABLE ASSEMBLY, Hi Tension (SET OF 6) 813706A56
4 CABLE ASSEMBLY, Hi Tension (SINGLE CABLE) 821945A61
5 BOOT/TERMINAL KIT 63709A 1
6 SCREW, (M6 x 16) 821291 16
7 TIE STRAP, (8.00 Inches) 816311T
8 SPARK PLUG 941
9 SCREW, (M8 x 35) 818934 35
10 WASHER, (.330 x .750 x .060) Stainless Steel 56720
11 GROMMET 825380001
12 BUSHING 19064
13 ECU, Engine Control Unit 83004414T
13 ECU, Engine Control Unit 83004415T
13 ECU, Engine Control Unit 830044T04
13 ECU, Engine Control Unit 830044T05
14 ECU, Engine Control Unit 830046T07
14 ECU, Engine Control Unit 830046T08
14 ECU, Engine Control Unit 830046 4
14 ECU, Engine Control Unit 830046T05
14 ECU, Engine Control Unit 830046T02
14 ECU, Engine Control Unit 830046T01
15 SCREW, (M6 x 45) 821291 45
16 CLAMP 826188
17 SCREW, (M5 x 20) 821045 20
18 HARNESS ASSEMBLY (EFI) 825763A 5
19 HARNESS ASSEMBLY, Ignition 825433A11
20 GROMMET 818967
21 BRACKET 828102
22 RELAY 882751A1
23 HARNESS ASSEMBLY, Trim 826802A 2
24 CABLE ASSEMBLY, Positive - Battery 88439A34
25 CABLE ASSEMBLY, Negative - Battery 88439A24
26 HARNESS ASSEMBLY (26 IN.) 827356A 2
27 COVER 821609 1
28 SCREW, (M5 x 20) 822393 20
29 FUSE, Yellow - 20 Ampere 812619
30 SOCKET, Fuse 19637
31 CABLE ASSEMBLY, Black 93388A 8
32 PLATE, Solenoid Mounting 821228 2
33 SCREW, (M8 x 25) Stainless Steel 821550 25
34 SCREW, (M6 x 25) 821291 25
35 CABLE ASSEMBLY, (4.00 Inches) Black 88807A16
36 TERMINAL BLOCK 45915
37 SCREW, (#10-16 x .500) 878608
37 SCREW, (#10-16 x .380) 878607
38 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) 817109A 2
39 BUSHING 818968
40 LOCKWASHER, (.312) 53166
41 NUT, (.312-18) 68292
42 NUT, (#10-32) Brass 45076
43 CLAMP 850895
44 CLAMP, (28.6) 850896
45 BRACKET 850802
46 HOSE (INLET) 850803
47 HOSE (OUTLET) 850804
48 PULSE FLUSH 850801T2
