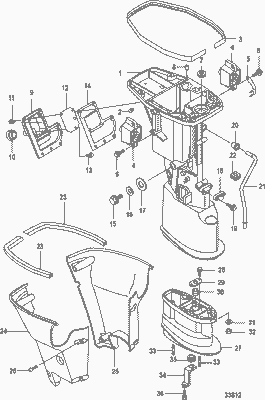

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 1
Product Description : MERCURY 832937A06 Housing Assembly, Driveshaft - Long
Product Category : 225 PRO XS (3.0L DFI)/ 1B752547 & Up/ Drivehshaft Housing And Exhaust Tube
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | HOUSING ASSEMBLY, Driveshaft - Long | 832937A06 |
1 | HOUSING ASSEMBLY, Driveshaft - X/XX-Long | 832938A06 |
2 | STUD, (M12 x 1.75 x 52) | 8M0008031 |
3 | SCREW, (M12 x 35 MM), External Hex | 8M0102995 |
3 | SCREW, (M12 x 35), Internal Hex | 892860 |
4 | GROMMET | 833123 1 |
5 | WASHER, (.500 x .810 x .090) Stainless Steel | 856982 |
6 | NUT, (M12) | 896895 |
7 | PLUG | 64649 |
8 | BOLT, (M14 x 178) | 898834 |
9 | CABLE ASSEMBLY, Ground | 88238A10 |
10 | WASHER, (.562 x 2.00 x .125) | 815432 |
11 | WASHER, (1.25 x 2.00 x .19) | 815433 1 |
12 | MOUNT | 813771 1 |
12 | MOUNT | 8M0055931 |
13 | WASHER | 825190 |
14 | NUT, (M14) | 896602 |
15 | CLAMP, When Depleted Order Design II Kit 879150A90 | 818644 2 |
16 | SCREW, (M8 x 40) | 8M0084475 |
17 | LOCKWASHER, Internal Tooth | 72521 |
18 | COVER, Lower Mount, When Depleted Order Design II Kit 879150A90 | 8M0001136 |
19 | SCREW, (#10-16 x .440) | 69079 |
20 | SEAL | 832932 1 |
21 | TUBE ASSEMBLY, Exhaust | 833116A19 |
21 | TUBE ASSEMBLY, Exhaust | 8M0075819 |
22 | STRAINER | 8M0026113 |
22 | STRAINER | 8M0026113 |
23 | SCREW, (M8 x 35) | 818934 35 |
24 | TUBE, Water | 8M0042785 |
24 | TUBE, Water | 8M0042786 |
25 | SEAL | 832940001 |
26 | CLAMP | 832939 1 |
27 | SCREW, (.250-20 x .500) Stainless Steel | 41508 |
28 | SCREW, (M8 x 35) | 818934 35 |
29 | WASHER | 847541 |
30 | COVER KIT, Lower Mount | 879150A90 |
31 | COVER, Lower Mount | 8M0148785 |
32 | CLAMP | 8M4501003 |
33 | SCREW, (#10-16 x .440) | 69079 |
1 | HOUSING ASSEMBLY, Driveshaft - Long | 832937A06 |
1 | HOUSING ASSEMBLY, Driveshaft - X/XX-Long | 832938A06 |
2 | STUD, (M12 x 1.75 x 52) | 8M0008031 |
3 | SCREW, (M12 x 35 MM), External Hex | 8M0102995 |
3 | SCREW, (M12 x 35), Internal Hex | 892860 |
4 | GROMMET | 833123 1 |
5 | WASHER, (.500 x .810 x .090) Stainless Steel | 856982 |
6 | NUT, (M12) | 896895 |
7 | PLUG | 64649 |
8 | BOLT, (M14 x 178) | 898834 |
9 | CABLE ASSEMBLY, Ground | 88238A10 |
10 | WASHER, (.562 x 2.00 x .125) | 815432 |
11 | WASHER, (1.25 x 2.00 x .19) | 815433 1 |
12 | MOUNT | 813771 1 |
12 | MOUNT | 8M0055931 |
13 | WASHER | 825190 |
14 | NUT, (M14) | 896602 |
15 | CLAMP, When Depleted Order Design II Kit 879150A90 | 818644 2 |
16 | SCREW, (M8 x 40) | 8M0084475 |
17 | LOCKWASHER, Internal Tooth | 72521 |
18 | COVER, Lower Mount, When Depleted Order Design II Kit 879150A90 | 8M0001136 |
19 | SCREW, (#10-16 x .440) | 69079 |
20 | SEAL | 832932 1 |
21 | TUBE ASSEMBLY, Exhaust | 833116A19 |
21 | TUBE ASSEMBLY, Exhaust | 8M0075819 |
22 | STRAINER | 8M0026113 |
22 | STRAINER | 8M0026113 |
23 | SCREW, (M8 x 35) | 818934 35 |
24 | TUBE, Water | 8M0042785 |
24 | TUBE, Water | 8M0042786 |
25 | SEAL | 832940001 |
26 | CLAMP | 832939 1 |
27 | SCREW, (.250-20 x .500) Stainless Steel | 41508 |
28 | SCREW, (M8 x 35) | 818934 35 |
29 | WASHER | 847541 |
30 | COVER KIT, Lower Mount | 879150A90 |
31 | COVER, Lower Mount | 8M0148785 |
32 | CLAMP | 8M4501003 |
33 | SCREW, (#10-16 x .440) | 69079 |
Quick Overview
HOUSING-DRIVESHAF 3518
SKU : 832937A06
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061377240
