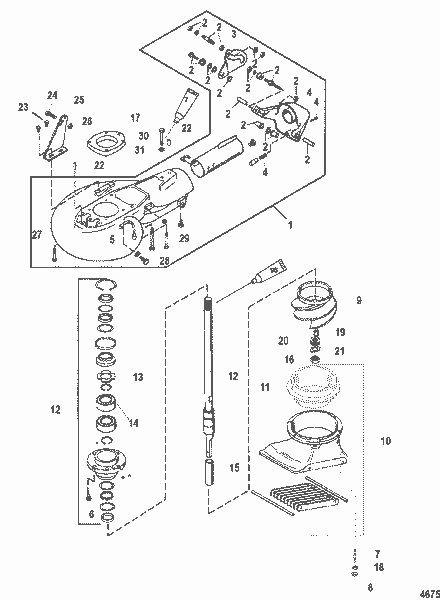

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 7
Product Description : MERCURY 855840 Stud, (.312-18 X 1.81)
Product Category : 75 (3 CYL.)/ 0P017000 THRU 0P325499/ Jet Pump Assembly
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | JET PUMP ASSEMBLY | 856143A 1 |
1 | HOUSING, Pump | 855767T90 |
2 | SHIFT LINKAGE KIT | 878377 |
3 | CAM | 878382 |
4 | GATE, Reverse - With Bumper | 878380 |
5 | HOSE, Lube | 827490 |
6 | SCREW, (.312-18 x 1.00) | 848497 |
7 | STUD, (.312-18 x 1.81) | 855840 |
8 | NUT, (.312-18) | 82670910 |
9 | IMPELLER | 855708115 |
10 | HOUSING, Intake | 855768 90 |
11 | LINER | 855771 |
12 | DRIVESHAFT | 855769 90 |
13 | THRUST WASHER | 879652 2 |
14 | BEARING, Ball | 879653 1 |
15 | SLEEVE | 827189 1 |
16 | NUT | 827190 1 |
17 | ADAPTOR, Pump | 808747 |
18 | WASHER | 36001 |
19 | KEY | 801405875 |
20 | SHIM, Impeller | 801404875 |
21 | TAB WASHER | 801403875 |
22 | PIN, Dowel | 801407 |
23 | SCREW, (.250-20 x .625) | 19923062 |
24 | SCREW, (.312-18 x 1.250) | 60411 |
25 | BRACKET, Cable Support | 801410 |
26 | NUT, (.312-18) | 82670910 |
27 | SCREW, (M10 x 60) Hex Flange - Stainless Steel | 40108 60 |
28 | SCREW, (M10 x 90) Hex Flange - Stainless Steel | 40108 90 |
29 | SCREW, (M10 x 70) Hex Flange - Stainless Steel | 40108 70 |
30 | SCREW, (.375-16 x 4.00) Stainless Steel | 843575 |
31 | WASHER, (.406 x .750 x .105) Stainless Steel | 856774 |
- | JET PUMP ASSEMBLY | 856143A 1 |
1 | HOUSING, Pump | 855767T90 |
2 | SHIFT LINKAGE KIT | 878377 |
3 | CAM | 878382 |
4 | GATE, Reverse - With Bumper | 878380 |
5 | HOSE, Lube | 827490 |
6 | SCREW, (.312-18 x 1.00) | 848497 |
7 | STUD, (.312-18 x 1.81) | 855840 |
8 | NUT, (.312-18) | 82670910 |
9 | IMPELLER | 855708115 |
10 | HOUSING, Intake | 855768 90 |
11 | LINER | 855771 |
12 | DRIVESHAFT | 855769 90 |
13 | THRUST WASHER | 879652 2 |
14 | BEARING, Ball | 879653 1 |
15 | SLEEVE | 827189 1 |
16 | NUT | 827190 1 |
17 | ADAPTOR, Pump | 808747 |
18 | WASHER | 36001 |
19 | KEY | 801405875 |
20 | SHIM, Impeller | 801404875 |
21 | TAB WASHER | 801403875 |
22 | PIN, Dowel | 801407 |
23 | SCREW, (.250-20 x .625) | 19923062 |
24 | SCREW, (.312-18 x 1.250) | 60411 |
25 | BRACKET, Cable Support | 801410 |
26 | NUT, (.312-18) | 82670910 |
27 | SCREW, (M10 x 60) Hex Flange - Stainless Steel | 40108 60 |
28 | SCREW, (M10 x 90) Hex Flange - Stainless Steel | 40108 90 |
29 | SCREW, (M10 x 70) Hex Flange - Stainless Steel | 40108 70 |
30 | SCREW, (.375-16 x 4.00) Stainless Steel | 843575 |
31 | WASHER, (.406 x .750 x .105) Stainless Steel | 856774 |
Quick Overview
STUD 16
SKU : 855840
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061437982
