MERCURY 856143A6 Jet Pump Assembly

Write a Review
$3,079.93
SKU:
856143A6

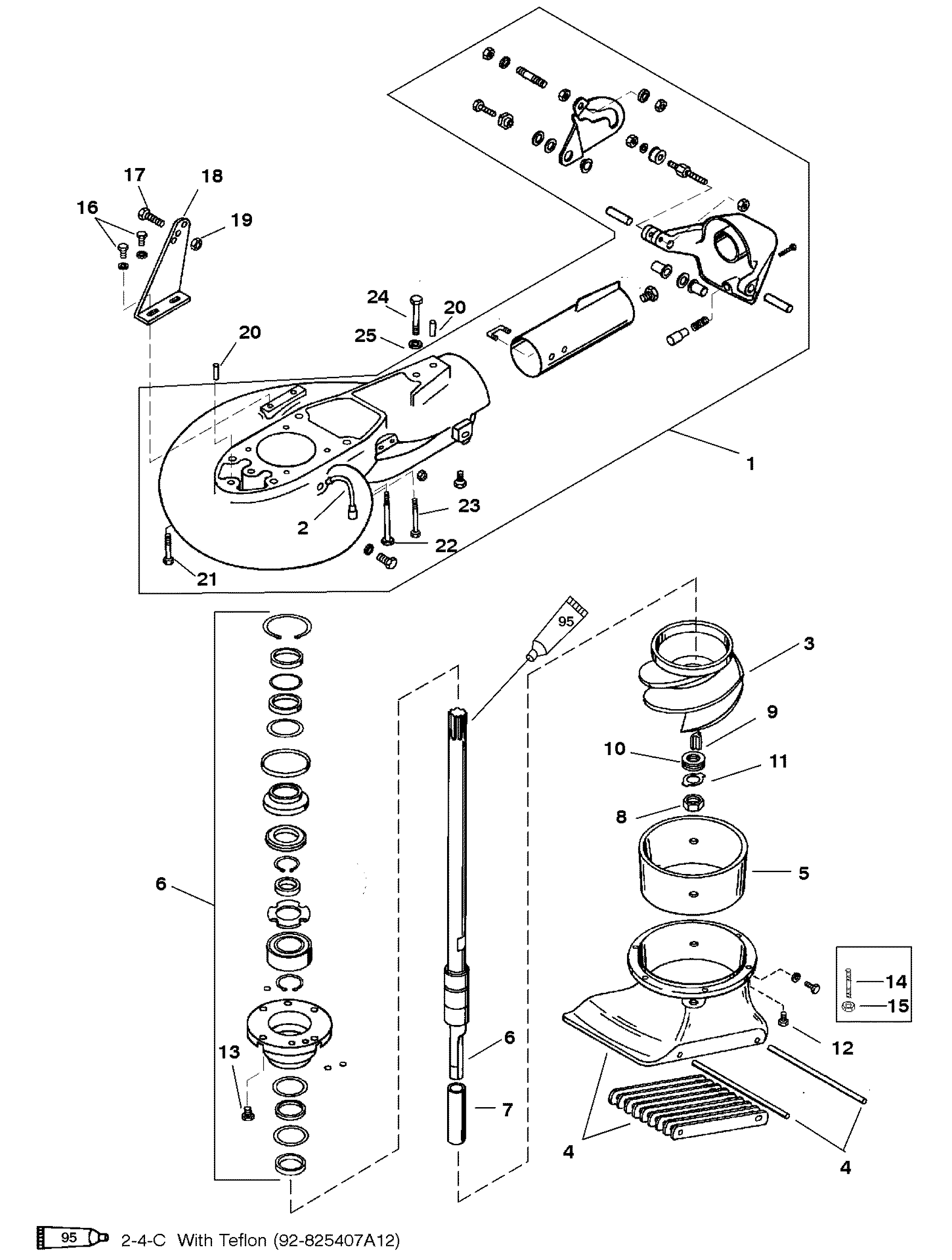

Schematic Object Key:
-

MERCURY 856143A6 Jet Pump Assembly

$3,079.93

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 856143A6 Jet Pump Assembly

Schematic Object Key : -

Product Description : MERCURY 856143A6 Jet Pump Assembly

Product Category : 50 (3 CYL.)/ 0G290585 THRU 0G589999/ Jet Pump Assembly

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- JET PUMP ASSEMBLY 856143A6
- JET PUMP ASSEMBLY 856143A6
- JET PUMP ASSEMBLY 856143A6
1 HOUSING-PUMP 801411T60
1 HOUSING-PUMP 855767T60
2 HOSE-LUBE 827490
3 IMPELLER 855708T60
4 HOUSING-INTAKE 801412 60
5 LINER 827188 2
6 DRIVESHAFT 801413 60
6 DRIVESHAFT 855769 60
7 SLEEVE 827189 1
8 NUT 827190 1
9 KEY 801405875
10 SHIM 801404875
11 TAB WASHER 801403875
12 SCREW (.312-18 X .1) 848497
13 SCREW (1/4-20 X .875) 19923088
13 SCREW (.312-18 X .1) 848497
14 STUD (.312-18 X1.81) 855840
15 NUT 82670910
16 SCREW (1/4-20 X .625) 19923062
17 SCREW (.312-18 X 1.25) 60411
18 BRACKET 801410
19 NUT 82670910
20 PIN-DOWEL 801407
21 SCREW (M10 X 60) 40108 60
22 SCREW (M10 X 90) 40108 90
23 SCREW (M10 X 70) 40108 70
24 SCREW (.375-16 X 3-1/4) 95802
25 WASHER 856774
- JET PUMP ASSEMBLY 856143A6
- JET PUMP ASSEMBLY 856143A6
- JET PUMP ASSEMBLY 856143A6
1 HOUSING-PUMP 801411T60
1 HOUSING-PUMP 855767T60
2 HOSE-LUBE 827490
3 IMPELLER 855708T60
4 HOUSING-INTAKE 801412 60
5 LINER 827188 2
6 DRIVESHAFT 801413 60
6 DRIVESHAFT 855769 60
7 SLEEVE 827189 1
8 NUT 827190 1
9 KEY 801405875
10 SHIM 801404875
11 TAB WASHER 801403875
12 SCREW (.312-18 X .1) 848497
13 SCREW (1/4-20 X .875) 19923088
13 SCREW (.312-18 X .1) 848497
14 STUD (.312-18 X1.81) 855840
15 NUT 82670910
16 SCREW (1/4-20 X .625) 19923062
17 SCREW (.312-18 X 1.25) 60411
18 BRACKET 801410
19 NUT 82670910
20 PIN-DOWEL 801407
21 SCREW (M10 X 60) 40108 60
22 SCREW (M10 X 90) 40108 90
23 SCREW (M10 X 70) 40108 70
24 SCREW (.375-16 X 3-1/4) 95802
25 WASHER 856774



Quick Overview

JET PUMP (45)

SKU : 856143A6

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061438507
