MERCURY 856982 Washer, (.500 X .810 X .090) Stainless Steel

Write a Review
$1.70
SKU:
856982
Schematic Object Key:
10

MERCURY 856982 Washer, (.500 X .810 X .090) Stainless Steel

$1.70

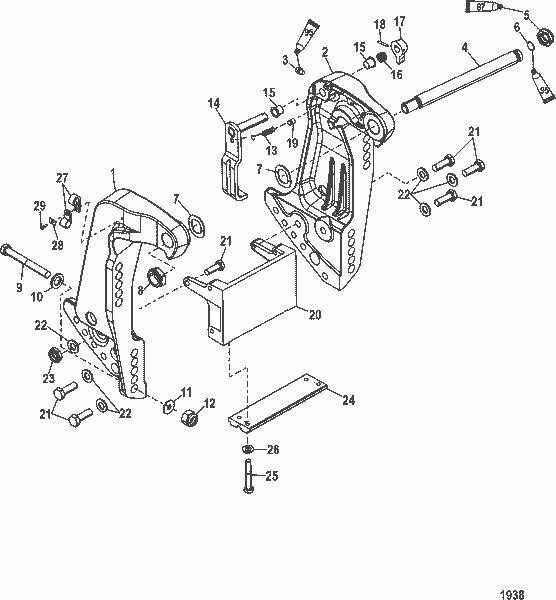

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 856982 Washer, (.500 X .810 X .090) Stainless Steel

Schematic Object Key : 10

Product Description : MERCURY 856982 Washer, (.500 X .810 X .090) Stainless Steel

Product Category : 75 DFI (3 CYL.)(1.5L)/ 1B417702 THRU 1B736885/ Transom Bracket

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 BRACKET ASSEMBLY, Transom - Starboard 828334T02
2 BRACKET ASSEMBLY, Transom - Port 828333T07
3 FITTING, Grease, Port 98727
4 TILT TUBE 826125A 1
5 NUT, (1.00-14) Nylon Insert 826135
6 O-RING, (.612 x .103) 45711
7 WASHER 88750
8 NUT, (.875-14) 826164
9 SCREW, (.500-20 x 4.500) 67755 1
10 WASHER, (.500 x .810 x .090) Stainless Steel 856982
11 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel 28421
12 NUT, (.500-20) 826711 17
13 SPRING, Tension 830899
14 LEVER ASSEMBLY, Tilt Lock 8M0109798
15 NYLINER 65830
16 SPRING, Compression 830900
17 KNOB 99633
18 PIN, Groove 99615
19 PIN 893709
20 BRACKET, Anchor 8M0086406
21 SCREW, (M10 x 30) 858771
22 WASHER 40023 19
23 NUT, (M10 x 1.5) 40114
24 ANODE KIT 818298T 1
25 SCREW, (M6 x 25) 40003 30
26 WASHER, (.281 x .500 x .060) Stainless Steel 29245
27 CLIP 22740
28 C WASHER 8M0084613
29 SCREW, (#10-16 x .600) 878609
1 BRACKET ASSEMBLY, Transom - Starboard 828334T02
2 BRACKET ASSEMBLY, Transom - Port 828333T07
3 FITTING, Grease, Port 98727
4 TILT TUBE 826125A 1
5 NUT, (1.00-14) Nylon Insert 826135
6 O-RING, (.612 x .103) 45711
7 WASHER 88750
8 NUT, (.875-14) 826164
9 SCREW, (.500-20 x 4.500) 67755 1
10 WASHER, (.500 x .810 x .090) Stainless Steel 856982
11 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel 28421
12 NUT, (.500-20) 826711 17
13 SPRING, Tension 830899
14 LEVER ASSEMBLY, Tilt Lock 8M0109798
15 NYLINER 65830
16 SPRING, Compression 830900
17 KNOB 99633
18 PIN, Groove 99615
19 PIN 893709
20 BRACKET, Anchor 8M0086406
21 SCREW, (M10 x 30) 858771
22 WASHER 40023 19
23 NUT, (M10 x 1.5) 40114
24 ANODE KIT 818298T 1
25 SCREW, (M6 x 25) 40003 30
26 WASHER, (.281 x .500 x .060) Stainless Steel 29245
27 CLIP 22740
28 C WASHER 8M0084613
29 SCREW, (#10-16 x .600) 878609



Schematic Object Key : 42

Product Description : WASHER, (.500 x .810 x .090) Stainless Steel

Title : Mercruiser race Model 900 SC Dry Sump

Category: Gas; Race Sterndrives; 900 SC Dry Sump; 0L306805 THRU 0M901290; Intake Manifold And Front Cover


Quick Overview

MERCURY_856982

SKU : 856982

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force
