MERCURY 859321A 3 Gear Set, Forward/Pinion (12/21)

Write a Review
$518.07
SKU:
859321A3
Schematic Object Key:
53

MERCURY 859321A 3 Gear Set, Forward/Pinion (12/21)

$518.07

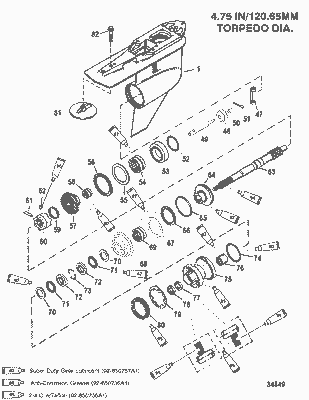

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 859321A 3 Gear Set, Forward/Pinion (12/21)

Schematic Object Key : 53

Product Description : MERCURY 859321A 3 Gear Set, Forward/Pinion (12/21)

Product Category : 225 (3.0L CARB)/ 0G760300 THRU 0T408999/ Gear Hsg(Propshaft-Std-S\N-0G960500 & Up)

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
1 GEAR HOUSING ASSEMBLY, Basic 859399T18
47 PLUG 859403
48 SHIFT CRANK 823903
49 SPOOL ASSEMBLY 19755T 7
50 NOT SOLD SEPARATE, Shift Spool NSS
51 COTTER PIN 46950 1
52 NOT SOLD SEPARATE, Sleeve NSS
53 GEAR SET, Forward/Pinion (12/21) 859321A 3
54 SHIM SET 44491A 1
55 BEARING SET, Cup And Cone 30894A 1
56 NOT SOLD SEPARATE, Cup NSS
57 RING, Retaining 856823
58 BEARING, Needle 30895T
59 SPRING 30893
60 CLUTCH 859340T
61 PIN, Detent 828356
62 PIN, Cross 8M0100263
63 PROPELLER SHAFT 8M0140440
64 GEAR, Reverse (12/21) 859322A 1
65 SPACER 824108
66 RING, Thrust 68100 1
67 BEARING, Ball 88957T
68 O-RING 31534
69 CARRIER ASSEMBLY, Bearing 818763T11
70 BEARING, Needle 30956T
71 SEAL, Oil (INSIDE) 14077
72 SEAL (OUTSIDE) 76868
73 TAB WASHER 18323
74 RETAINER 8M2011027
75 ANODE KIT 76214Q 5
76 SCREW, (.437-14 x 1.750) 806327
- SEAL KIT, Gear Housing 816575A 4
1 GEAR HOUSING ASSEMBLY, Basic 859399T18
47 PLUG 859403
48 SHIFT CRANK 823903
49 SPOOL ASSEMBLY 19755T 7
50 NOT SOLD SEPARATE, Shift Spool NSS
51 COTTER PIN 46950 1
52 NOT SOLD SEPARATE, Sleeve NSS
53 GEAR SET, Forward/Pinion (12/21) 859321A 3
54 SHIM SET 44491A 1
55 BEARING SET, Cup And Cone 30894A 1
56 NOT SOLD SEPARATE, Cup NSS
57 RING, Retaining 856823
58 BEARING, Needle 30895T
59 SPRING 30893
60 CLUTCH 859340T
61 PIN, Detent 828356
62 PIN, Cross 8M0100263
63 PROPELLER SHAFT 8M0140440
64 GEAR, Reverse (12/21) 859322A 1
65 SPACER 824108
66 RING, Thrust 68100 1
67 BEARING, Ball 88957T
68 O-RING 31534
69 CARRIER ASSEMBLY, Bearing 818763T11
70 BEARING, Needle 30956T
71 SEAL, Oil (INSIDE) 14077
72 SEAL (OUTSIDE) 76868
73 TAB WASHER 18323
74 RETAINER 8M2011027
75 ANODE KIT 76214Q 5
76 SCREW, (.437-14 x 1.750) 806327
- SEAL KIT, Gear Housing 816575A 4



Quick Overview

GEAR SET-FORWARD 43

SKU : 859321A3

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061445239
