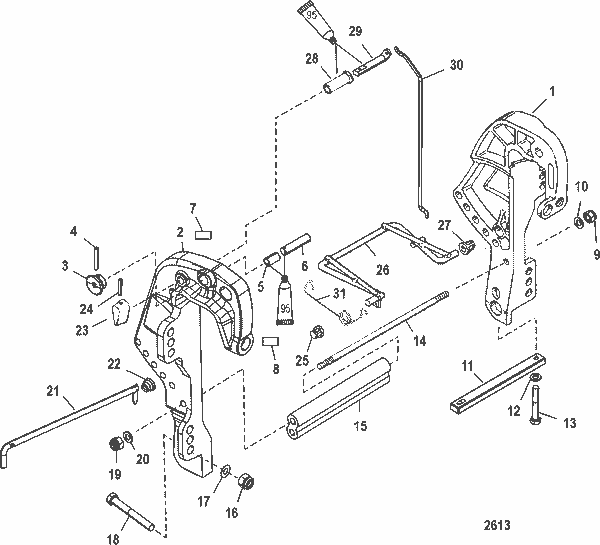

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 5
Product Description : MERCURY 86637 Bearing
Product Category : 25 (4-STROKE)/ 0T409000 THRU 1B344298/ Clamp Bracket(Remote Control)
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
1 | CLAMP BRACKET | 821773T 1 |
2 | CLAMP BRACKET | 821774T 8 |
3 | CAP | 822401 1 |
4 | PIN | 25810 |
5 | BEARING | 86637 |
6 | PIN | 822400 2 |
7 | NOT SOLD SEPARATE, Decal-Shallow Water | NSS |
8 | DECAL, Tilt Lock | 830253 |
9 | NUT, (M10) | 40140 |
10 | WASHER | 40023 19 |
11 | ANODE | 825271 1 |
12 | WASHER, (.281 x .500 x .060) Stainless Steel | 29245 |
13 | SCREW, (M6 x 25) | 40003 30 |
14 | STUD, (M10 x 277) | 8M0034459 |
15 | SPACER | 824952 |
16 | NUT, (.500-20) | 826711 17 |
17 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 28421 |
18 | SCREW, (.500-20 x 4.00) | 814259 |
19 | NUT, (M10) | 40140 |
20 | WASHER | 40023 19 |
21 | PIN ASSEMBLY, Tilt Lock | 8M0026103 |
22 | SPRING | 821461 |
23 | LEVER | 822409 |
24 | PIN, (.125 x 0.75 Inches) | 25319 |
25 | BUSHING (PLASTIC) | 824858 |
26 | ROD, Plastic | 878580 |
27 | BUSHING (PLASTIC) | 824858 |
28 | BUSHING | 823812 |
29 | ARM | 822411 |
30 | LINK ROD | 878563 |
30 | LINK ROD | 878563 |
30 | LINK ROD | 878563 |
31 | SPRING | 832085A 1 |
1 | CLAMP BRACKET | 821773T 1 |
2 | CLAMP BRACKET | 821774T 8 |
3 | CAP | 822401 1 |
4 | PIN | 25810 |
5 | BEARING | 86637 |
6 | PIN | 822400 2 |
7 | NOT SOLD SEPARATE, Decal-Shallow Water | NSS |
8 | DECAL, Tilt Lock | 830253 |
9 | NUT, (M10) | 40140 |
10 | WASHER | 40023 19 |
11 | ANODE | 825271 1 |
12 | WASHER, (.281 x .500 x .060) Stainless Steel | 29245 |
13 | SCREW, (M6 x 25) | 40003 30 |
14 | STUD, (M10 x 277) | 8M0034459 |
15 | SPACER | 824952 |
16 | NUT, (.500-20) | 826711 17 |
17 | WASHER, (1.5 x 3.05 x 0.13) Stainless Steel | 28421 |
18 | SCREW, (.500-20 x 4.00) | 814259 |
19 | NUT, (M10) | 40140 |
20 | WASHER | 40023 19 |
21 | PIN ASSEMBLY, Tilt Lock | 8M0026103 |
22 | SPRING | 821461 |
23 | LEVER | 822409 |
24 | PIN, (.125 x 0.75 Inches) | 25319 |
25 | BUSHING (PLASTIC) | 824858 |
26 | ROD, Plastic | 878580 |
27 | BUSHING (PLASTIC) | 824858 |
28 | BUSHING | 823812 |
29 | ARM | 822411 |
30 | LINK ROD | 878563 |
30 | LINK ROD | 878563 |
30 | LINK ROD | 878563 |
31 | SPRING | 832085A 1 |
Quick Overview
BEARING 23
SKU : 86637
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061201064
