MERCURY 875208 Anode

Write a Review
$8.49
SKU:
875208-MER
Schematic Object Key:
64

MERCURY 875208 Anode

$8.49

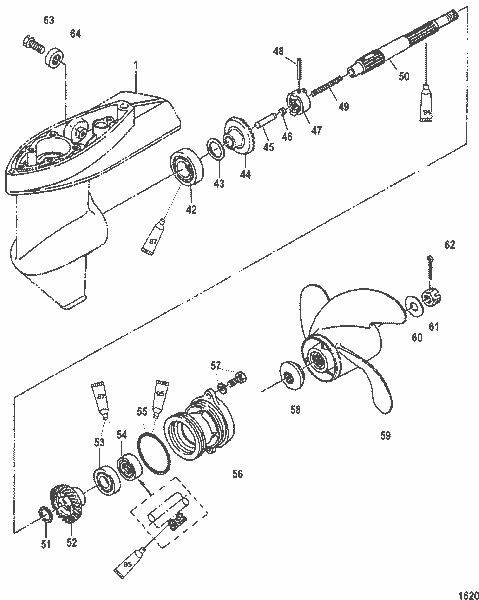

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.

MERCURY 875208 Anode

Schematic Object Key : 64

Product Description : MERCURY 875208 Anode

Product Category : 5 (4-STROKE)/ 0R411838 & Up/ Gear Housing, Propeller Shaft

Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.

Other Components:

Key Name Part No.
- GEAR HOUSING ASSEMBLY, Complete 8M0122306
- GEAR HOUSING ASSEMBLY, Complete 8M0122307
- GEAR HOUSING ASSEMBLY, Complete 8M0063900
- GEAR HOUSING ASSEMBLY, Complete 8M0122308
1 GEAR HOUSING ASSEMBLY, Basic 825132T30
1 GEAR HOUSING ASSEMBLY, Basic 9621T 6
42 BEARING, Ball 16128
43 SHIM, (0.1) 16141
43 SHIM, (0.15) 813277
44 GEAR 812944
45 FOLLOWER, Cam 16152
46 RETAINER 16153
47 CLUTCH 812946
48 PIN, Clutch 16150
49 SPRING 17667
50 PROPELLER SHAFT 19513 3
51 WASHER 16140
52 GEAR, Reverse 812945 1
53 BEARING, Ball 16132
54 SEAL, Oil 16130
55 O-RING 16131
56 HOUSING 825118T
57 BOLT, (M6 x 20) 16705 1
58 THRUST WASHER 16145Q01
59 PROPELLER 16144A01
59 PROPELLER 812951A02
59 PROPELLER, (8.4 X 7 X 3RH) 812949A02
59 PROPELLER 812950A02
59 PROPELLER 812950A03
60 WASHER 16146
61 PROP NUT 16147
62 COTTER PIN 815026
63 BOLT, (M6 x 16) 16832
64 ANODE 875208
- SEAL KIT, Gear Housing 8M0134073
- GEAR HOUSING ASSEMBLY, Complete 8M0122306
- GEAR HOUSING ASSEMBLY, Complete 8M0122307
- GEAR HOUSING ASSEMBLY, Complete 8M0063900
- GEAR HOUSING ASSEMBLY, Complete 8M0122308
1 GEAR HOUSING ASSEMBLY, Basic 825132T30
1 GEAR HOUSING ASSEMBLY, Basic 9621T 6
42 BEARING, Ball 16128
43 SHIM, (0.1) 16141
43 SHIM, (0.15) 813277
44 GEAR 812944
45 FOLLOWER, Cam 16152
46 RETAINER 16153
47 CLUTCH 812946
48 PIN, Clutch 16150
49 SPRING 17667
50 PROPELLER SHAFT 19513 3
51 WASHER 16140
52 GEAR, Reverse 812945 1
53 BEARING, Ball 16132
54 SEAL, Oil 16130
55 O-RING 16131
56 HOUSING 825118T
57 BOLT, (M6 x 20) 16705 1
58 THRUST WASHER 16145Q01
59 PROPELLER 16144A01
59 PROPELLER 812951A02
59 PROPELLER, (8.4 X 7 X 3RH) 812949A02
59 PROPELLER 812950A02
59 PROPELLER 812950A03
60 WASHER 16146
61 PROP NUT 16147
62 COTTER PIN 815026
63 BOLT, (M6 x 16) 16832
64 ANODE 875208
- SEAL KIT, Gear Housing 8M0134073



Quick Overview

ANODE Q=T 97

SKU : 875208

PRE: MER

BRAND: MERCURY

COMPANY: Mercury/MerCruiser/Mariner/Force

UPC: 745061452732
