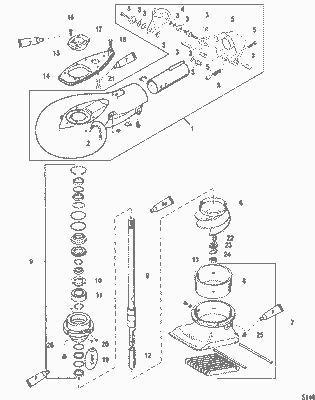

Disclaimer: Please note that the items featured in the image (schematic diagram) are not sold as a bundled set. To facilitate your search, kindly refer to the schematic object key provided below in order to locate a specific item within the image.
Schematic Object Key : 4
Product Description : MERCURY 878380T01 Reverse Gate, With Bumper
Product Category : 40 EFI (4 CYL.)(4-STROKE)/ 1C050252 & Up/ Jet Unit
Disclaimer: Each item listed in the table below is available for individual purchase and is not sold as part of a package or set.
Other Components:
Key | Name | Part No. |
---|---|---|
- | NOT SOLD SEPARATE, Jet Unit-Complete | NSS |
1 | HOUSING, Pump | 855767T01 |
2 | LINKAGE KIT, Shift | 878377T01 |
3 | CAM | 878382 |
4 | REVERSE GATE, With Bumper | 878380T01 |
5 | HOSE, Lube | 827490 |
6 | STUD, (M8 x 48) | 8M0034456 |
7 | NUT, (M8) Stainless Steel | 40138 8 |
8 | SCREW, (M8 x 25) | 40071 53 |
9 | IMPELLER | 855708T60 |
10 | HOUSING, Intake | 801412T02 |
11 | LINER | 827188T02 |
12 | DRIVESHAFT | 855769T01 |
13 | THRUST WASHER | 879652 2 |
14 | BEARING, Ball | 879653 1 |
15 | SLEEVE | 827189 1 |
16 | NUT | 827190 1 |
17 | WASHER | 36001 |
18 | KEY | 801405875 |
19 | SHIM, Impeller | 801404875 |
20 | TAB WASHER | 801403875 |
21 | SCREW, (M6 x 16) | 40003 28 |
22 | SCREW, (M8 x 30) | 8M0009111 |
23 | BRACKET, Cable Support | 898101382 |
24 | NUT, (M8) Stainless Steel | 40138 8 |
25 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
26 | SCREW, (M10 x 60) | 19956 60 |
27 | SCREW, (M10 x 90) | 4010890 |
28 | SCREW, (M10 x 70) | 19956 70 |
29 | WASHER | 40023 16 |
30 | WASHER | 40023 17 |
- | NOT SOLD SEPARATE, Jet Unit-Complete | NSS |
1 | HOUSING, Pump | 855767T01 |
2 | LINKAGE KIT, Shift | 878377T01 |
3 | CAM | 878382 |
4 | REVERSE GATE, With Bumper | 878380T01 |
5 | HOSE, Lube | 827490 |
6 | STUD, (M8 x 48) | 8M0034456 |
7 | NUT, (M8) Stainless Steel | 40138 8 |
8 | SCREW, (M8 x 25) | 40071 53 |
9 | IMPELLER | 855708T60 |
10 | HOUSING, Intake | 801412T02 |
11 | LINER | 827188T02 |
12 | DRIVESHAFT | 855769T01 |
13 | THRUST WASHER | 879652 2 |
14 | BEARING, Ball | 879653 1 |
15 | SLEEVE | 827189 1 |
16 | NUT | 827190 1 |
17 | WASHER | 36001 |
18 | KEY | 801405875 |
19 | SHIM, Impeller | 801404875 |
20 | TAB WASHER | 801403875 |
21 | SCREW, (M6 x 16) | 40003 28 |
22 | SCREW, (M8 x 30) | 8M0009111 |
23 | BRACKET, Cable Support | 898101382 |
24 | NUT, (M8) Stainless Steel | 40138 8 |
25 | PIN, Dowel - Without Hole (.375 x .625) | 43044 |
26 | SCREW, (M10 x 60) | 19956 60 |
27 | SCREW, (M10 x 90) | 4010890 |
28 | SCREW, (M10 x 70) | 19956 70 |
29 | WASHER | 40023 16 |
30 | WASHER | 40023 17 |
Quick Overview
REVERSE GATE
SKU : 878380T01
PRE: MER
BRAND: MERCURY
COMPANY: Mercury/MerCruiser/Mariner/Force
UPC: 745061810945
